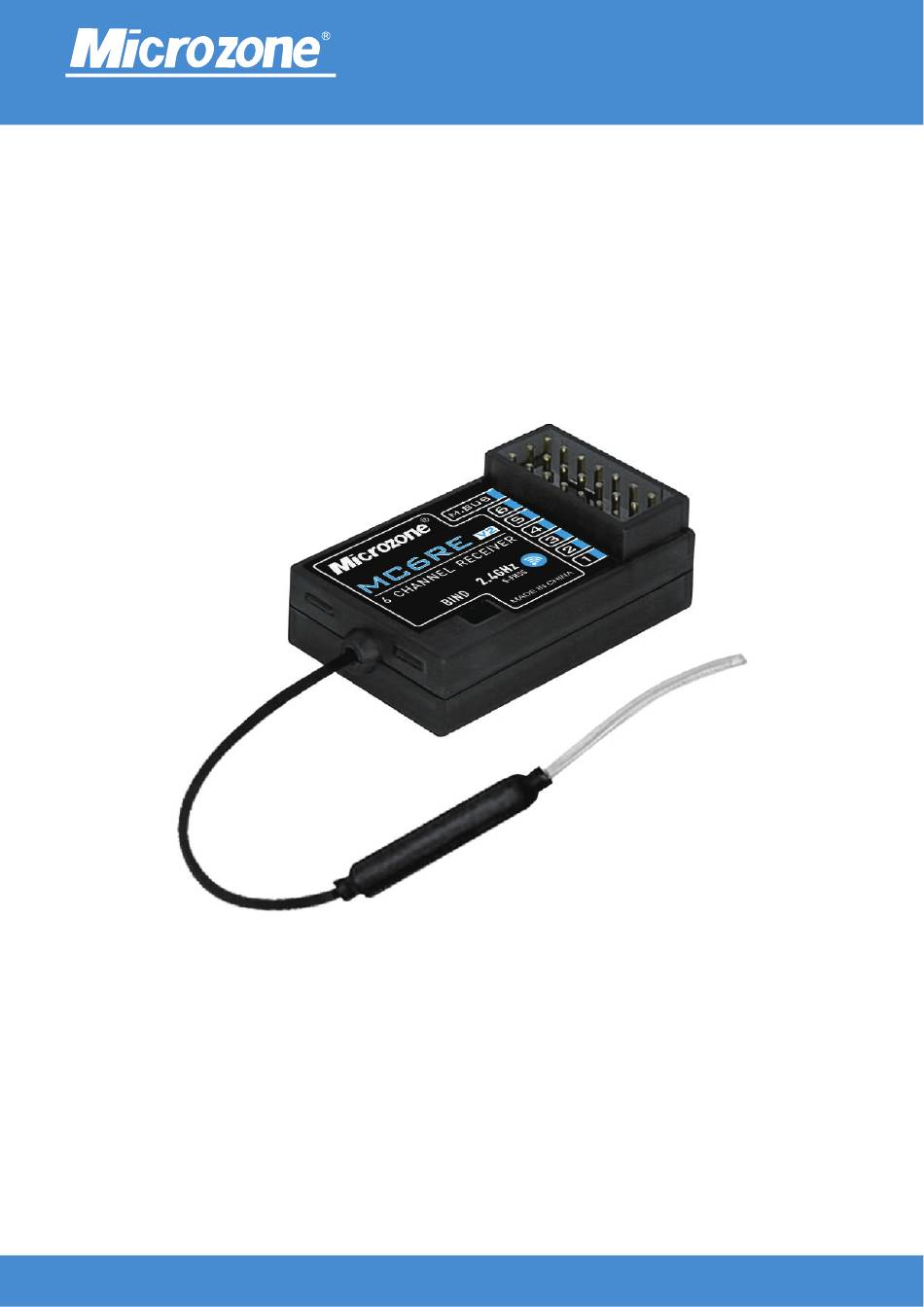

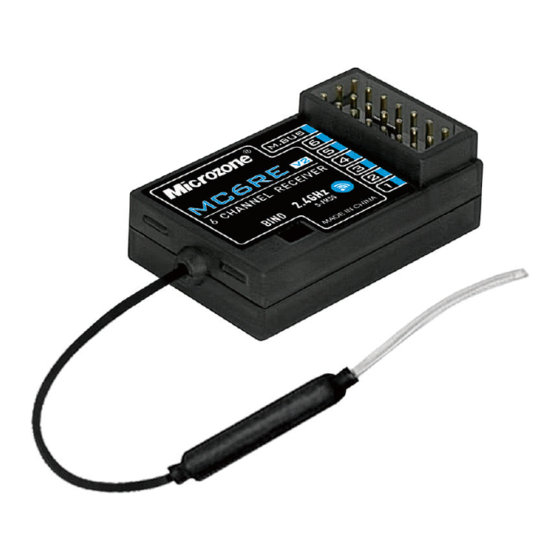

- Page 1 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM MC6RE-V2 PRODUCT MANUAL Please read the instruction manual before use www.microzone.cn...
- Page 2 (+)positive electrode turn on the power switch of the remote control, and the frequency matching is successful SPECIFICATION PARAMETERS Model MC6RE-V2 Teal transparent Color Applications Fixed-wing/Car/Boat/Multi-axis Channel output 6 PWM signals, 1 SBUS signal Frequency range...
- Page 3 This function is only available for products after 2023, and this operation will change the runaway protection value of channel 3 to 1500us; How to Operate: Turn off the receiver, short-circuit channels 5 and 6 with a wire, turn off the wire after the receiver is powered on for three seconds, and restart the receiver. www.microzone.cn...
- Page 4 FM button PWM signal: High level is 3.3V, 14ms a cycle, output pulse width is 1000-2000us when not mixing, and 880-2120 when mixing or trimming bias, as shown below. 1000 1200 1400 1600 1800 2000 www.microzone.cn...
- Page 5 .data22: Corresponding to 16 channels (ch1-ch16), each channel 11bit, channel data value range is 200-1800, docking SBUS signal needs to invert the level in hardware, software inversion is invalid, inversion circuit is as follows. VCC3V3_MCU RC_SBUS SBUS Receivers www.microzone.cn...
-
Page 6: Matters Needing Attention
Read this guide and follow the instructions. 11.The remote control and receiver required for our company's 2.4G wireless transmission system are used in pairs, while other company products cannot be connected to our company's products The product is of great value. www.microzone.cn...
