Summary of Contents for Microzone MC7RB-V2

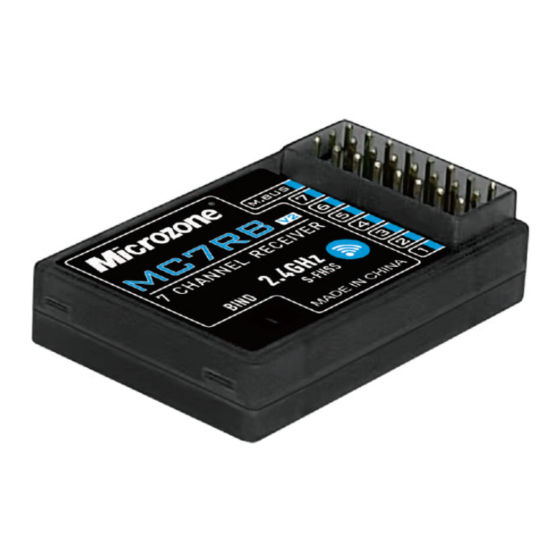

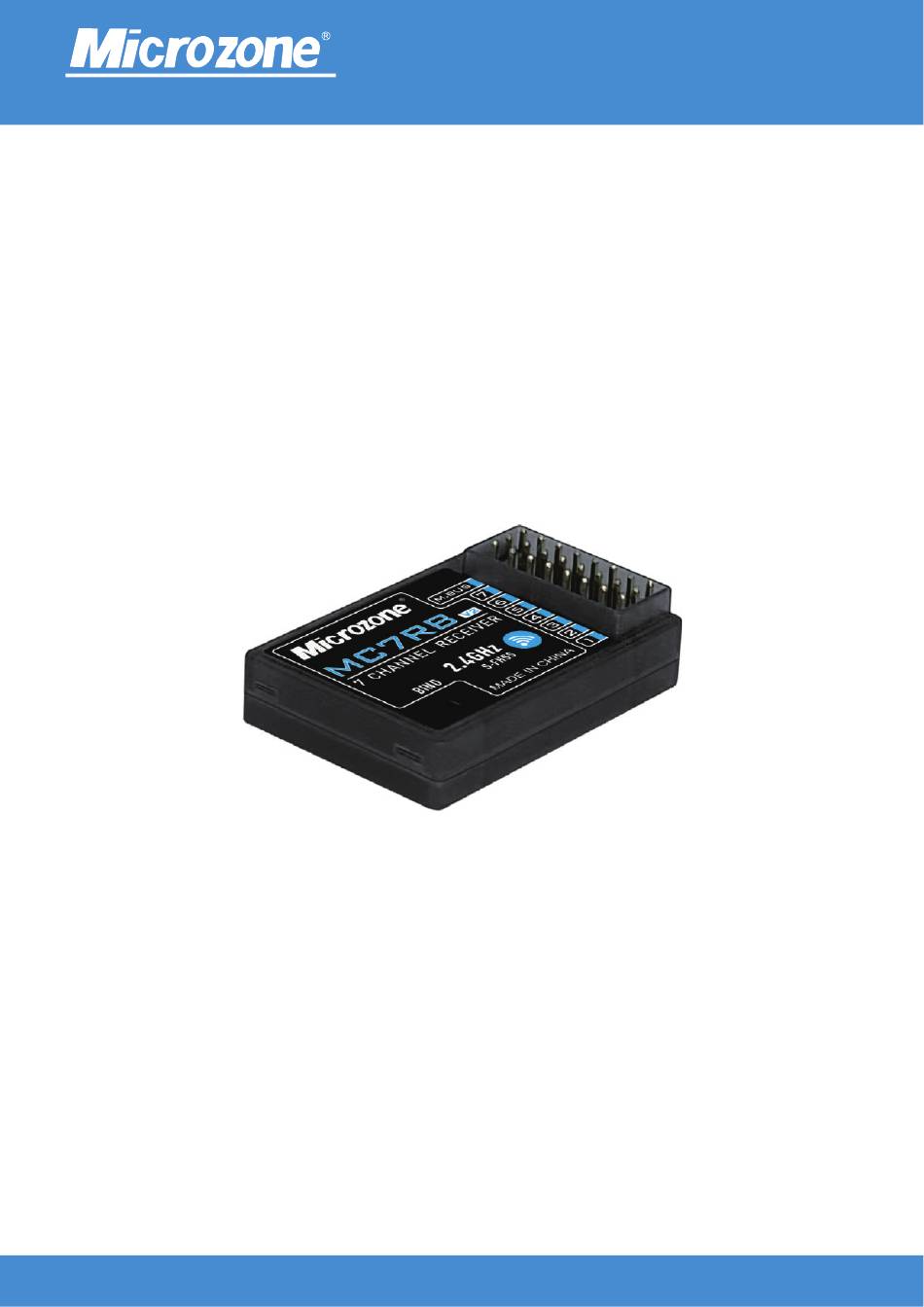

- Page 1 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM MC7RB-V2 PRODUCT MANUAL Please read the instruction manual before use www.microzone.cn...
- Page 2 (+)positive electrode turn on the power switch of the remote control, and the frequency matching is successful SPECIFICATION PARAMETERS Model MC7RB-V2 Teal transparent Color Applications Fixed-wing/Car/Boat/Multi-axis Channel output 7 PWM signals, 1 SBUS signal Frequency range...
- Page 3 This function is only available for products after 2023, and this operation will change the runaway protection value of channel 3 to 1500us; How to Operate: Turn off the receiver, short-circuit channels 5 and 6 with a wire, turn off the wire after the receiver is powered on for three seconds, and restart the receiver. www.microzone.cn...
- Page 4 FM button PWM signal: High level is 3.3V, 14ms a cycle, output pulse width is 1000-2000us when not mixing, and 880-2120 when mixing or trimming bias, as shown below. 1000 1150 1300 1450 1600 1750 2000 www.microzone.cn...
- Page 5 .data22: Corresponding to 16 channels (ch1-ch16), each channel 11bit, channel data value range is 200-1800, docking SBUS signal needs to invert the level in hardware, software inversion is invalid, inversion circuit is as follows. VCC3V3_MCU RC_SBUS SBUS Receivers www.microzone.cn...
-
Page 6: Matters Needing Attention
Read this guide and follow the instructions. 11.The remote control and receiver required for our company's 2.4G wireless transmission system are used in pairs, while other company products cannot be connected to our company's products The product is of great value. www.microzone.cn...
Need help?
Do you have a question about the MC7RB-V2 and is the answer not in the manual?
Questions and answers
Microzone 6C mini TX and MC7RB vi2 RX system,. RX specs give RX volts as DC 4.5-6 v But the RX manual says the max PWM volt is 3.3. Is this the max volts that the the RX will provide to an ESC? it is also the max volt that the ESC will send to the motor. Is this correct?
The Microzone MC7RB-V2 receiver operates with a supply voltage of DC 4.5–6V. Therefore, the maximum voltage output from the receiver to an ESC (Electronic Speed Controller) via the PWM signal is 6V.
This answer is automatically generated
I've the microzone mc7rb receiver with inbuilt antenna. But the voltage from the SBUS is just only 0.42v why is it like that and how do I fix it
The SBUS voltage on the Microzone MC7RB-V2 receiver may be only 0.42V if the SBUS signal is not properly inverted. The SBUS output requires a hardware-level inversion, as software inversion is not effective. To fix this, ensure that a proper hardware inversion circuit is used between the SBUS output and the receiving device. Check the wiring and components of the inversion circuit for correct installation.
This answer is automatically generated
مشكلة خلط القنواا
The context does not mention any issue specifically related to mixing channels on the Microzone MC7RB-V2. Therefore, no issue with mixing channels can be determined.
This answer is automatically generated
