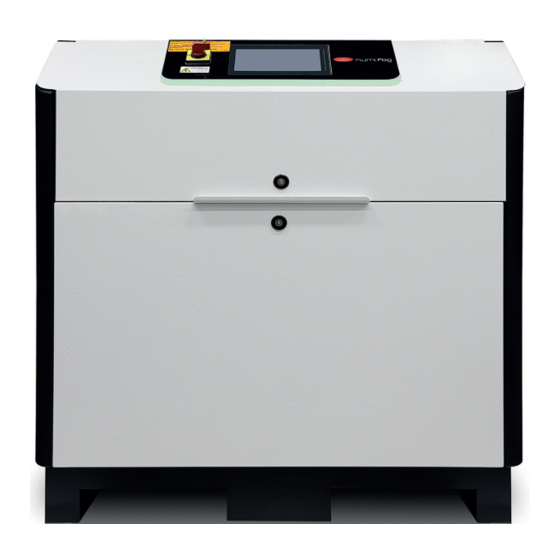

Carel humiFog UA2501D504 Installation Manual

Multizone touch oil-free pumping station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

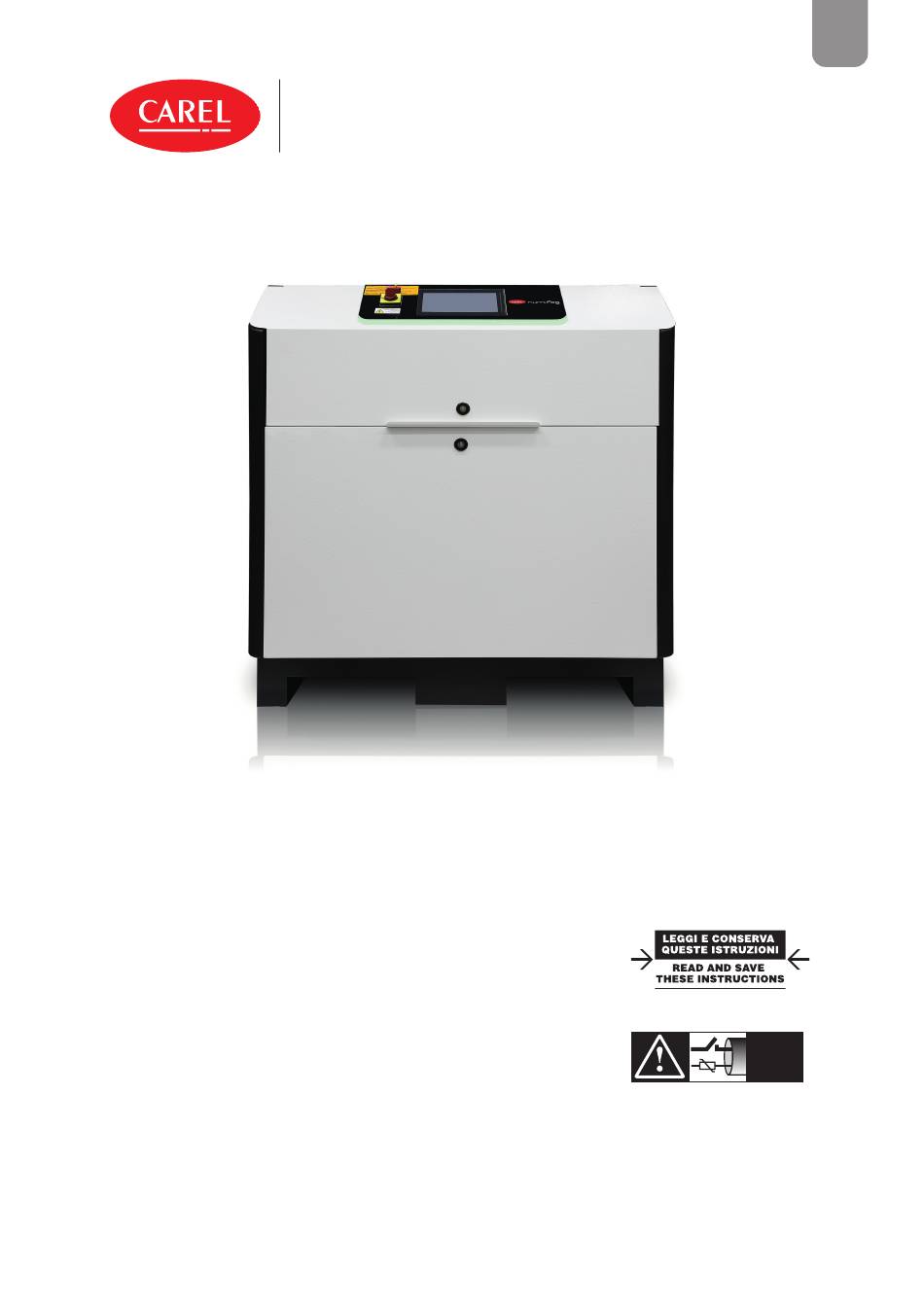

INSTALLATION MANUAL
humiFog Multizone Touch Oil-free
pumping station
humiFog Multizone Touch Oil-free
+0300125IT - ENG
Up to date version available on
www.carel.com
ENG
NO POWER
& SIGNAL
CABLES
TOGETHER
READ CAREFULLY IN THE TEXT!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the humiFog UA2501D504 and is the answer not in the manual?

Questions and answers

Related Manuals for Carel humiFog UA2501D504

Summary of Contents for Carel humiFog UA2501D504

  • Page 1 Multizone Touch Oil-free pumping station INSTALLATION MANUAL NO POWER & SIGNAL CABLES TOGETHER READ CAREFULLY IN THE TEXT! humiFog Multizone Touch Oil-free +0300125IT - ENG Up to date version available on www.carel.com...
  • Page 3 The technical speci- fi cations shown in the manual may be changed without prior warning. The liability of CAREL in relation to its products is specifi ed in the CAREL general contract conditions, published on the website www.carel.com FAILURE TO CAREFULLY HEED THE WARNINGS SHOWN IN THIS MAN- and/or by specifi c agreements with customers;...
  • Page 4 humiFog Multizone Touch Oil-free +0300125EN rel. 1.0 28.09.2023...
  • Page 5 Index 1. Purpose of the manual ..........7 2. How to read the manual .......... 7 3. General safety information and instructions ..8 3.1 Intended use ......................8 3.2 General safety instructions .................8 3.3 Personal protective equipment ...............9 4. Introduction ............. 10 4.1 Components .....................

  • Page 7: Purpose Of The Manual

    Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com 2. HOW TO READ THE MANUAL The manual is divided into chapters and paragraphs. Each paragraph is a sub-level of the corresponding chapter. References to headings or paragraphs are indicated by the abbreviation “Chap.

  • Page 8: Intended Use

    AHU (air handling unit), and for direct humidifi cation or cooling in rooms. CAUTION: The product must only be used for its intended purpose, as envisaged by CAREL. CAREL declines all liability, both contractual and extra-contractual, for any damage to people, animals or things due to installation, control or maintenance errors or improper use.

  • Page 9: Personal Protective Equipment

    Personal protective equipment DANGER Strictly follow the instructions provided in the manual. Personal protective equipment (PPE) means any equipment intended to be worn and kept by workers in order to protect them- selves against one or more risks likely to threaten their health or safety during work, as well as any device or accessory intended for this purpose.

  • Page 10: System Layouts

    • to connect the pumping station to the blowers, use the water circuit assemblies and electrical panels supplied separately by Carel (see the list of accessories); • to facilitate commissioning, plates already equipped with electrical connectors are available for simply and quickly connecting the electrical panels to the solenoid valves on the distribution manifolds.
  • Page 11 Internal rack valves Fig. 4.a Ref. Description Pumping station Electrical cables Distribution manifolds Zone panel Droplet separator Drain trap Open funnel drain (after droplet separator) Open funnel drain (before droplet separator) High pressure water line Line drain valve Tab. 4.a humiFog Multizone Touch Oil-free +0300125EN rel.
  • Page 12 Multizone Fig. 4.b Ref. Description Pumping station Ethernet cable Zone electrical panel Tab. 4.b Notice: for the Ethernet connection from the pumping station to the zone electrical panels, see “Installation notes”. humiFog Multizone Touch Oil-free +0300125EN rel. 1.0 28.09.2023 Introduction...
  • Page 13 4.2.2 Room Notice: • do not install the blowers in niches, closed corridors or behind curtains, as this would hinder the uniform distribution of hu- midifi ed air; • the air leaving the blowers is colder and more humid, and the noise levels of the nozzles and fans must be taken into consid- eration.

  • Page 14: Pumping Station

    Revision no. Customi- Pump type sation 250: 250 kg/h 1: humiFog D: 230 Vac 50/60 Hz, 1~, CE 5: Fifth 0: Carel 4: Oil-free stainless steel humiFog multizone L: 400 Vac 50/60 Hz, 3~, CE revision 600: 600 kg/h Touch 1K3: 1350 kg/h Tab.
  • Page 15 Serial No. Date Rev. Part No. MADE IN ... CAREL INDUSTRIES Via dell'Industria, 11, 35020 Brugine (Padova) Italy Fig. 4.i CAUTION: tampering, removal or absence of the rating plate or anything else that does not allow certain identifi cation of the product will make any installation or maintenance operations diffi cult and will void the manufacturer’s warranty.
  • Page 16 Structure 1 : 2 Fig. 4.j Ref. Description Opening for the power cable On/Off switch Inlet pressure gauge Low pressure probe Water inlet Supply solenoid valve Cooling fan High pressure switch Temperature probe Thermostat User terminal Electrical panel Openings for cable glands High pressure outlet pressure gauge High pressure control valve High pressure probe...
  • Page 17 directBOX hydraulic Water circuit assembly for interfacing the pumping station with the blowers for in-room humidifi cation. It contains the solenoid valves for pressurising 1/2 water lines (zone/step). See technical leafl et +050001828. Fig. 4.l Ref. Description UAKDLASV10 directBOX hydraulic for managing 1 zone/step UAKDLASV20 directBOX hydraulic for managing 2 zones/steps Tab.
  • Page 18 The distribution system is designed according to the specifi c application and comprising manifolds, solenoid valves, nozzles, pipes and fi ttings. Fig. 4.o 4.9.2 Ducted humidifi cation Racks The distribution system is designed according to the specifi c application and comprising manifolds with nozzles and fi xing frame in the duct, available in the fully- or partially-assembled versions.

  • Page 19: Installation Notes

    5. INSTALLATION NOTES Network connection See the technical data table for the specifi cations of the connection cables. 5.1.1 Zone panel connection The connection is made using an Ethernet cable from the pumping station to the zone panels, as shown in the fi gure. CAUTION: the maximum allowed length of an Ethernet connection between two devices is 100 m (for longer distanc- es, use switch P/N KITSE08000).

  • Page 20: Distribution System

    Distribution system 5.2.1 Drain valve management (NOL) The pumping station manages and controls the line drain valve (NOL, normally open). The zone panel can also manage a con- nected line drain valve. Notice: the line drain valve must be fi tted at the lowest point in the water circuit and wired to the nearest electrical pan- el (pumping station or zone panel), so that when opened, the entire system is emptied.
  • Page 21 Functional diagrams - room CAUTION: the blower fi ll and drain valves are contained in the directbox hydraulic panel. The maximum allowable length for the water line leaving and re-entering the directbox or that, if no directbox is installed, connects the fi ll valve to the drain valve, is 30 m.
  • Page 22 Case 3: 2 zones with 1 step Zone 1 Zone 2 Zona 1 Zona 2 Humidity Sensore Sensore Humidity di umidità 1 sensor 1 di umidità 2 sensor 2 Direct Box Direct Box Power supply Alimentazione Alimentazione Power supply Direct Box Direct Box Zone Zone...

  • Page 23: Installation

    6. INSTALLATION Water connections 572.5 271 307 Fig. 6.a Model Water inlet (C) Water outlet (A) Drain (B) 3/4”G - F 1/2”G - F 1/4”G - F 3/4”G - F 1/2”G - F 1/4”G - F 3/4”G - F 1/2”G - F 1/4”G - F Tab.
  • Page 24 If, on the other hand, the humidifi er is supplied with water from a Carel reverse osmosis system connected to the potable water supply network, the double check valve must be installed on the inlet to the reverse osmosis system.

  • Page 25: Electrical Connections

    Electrical connections Before making the connections, make sure that the unit is disconnected from the power supply: turn the main system switch and pumping station switch to OFF. Install the cable glands on the left and right side of the electrical panel for the electrical cables to pass through. 6.3.1 Electrical panel Fig.

  • Page 26: Control Connections

    Control connections The type of control is selected on the user interface. See the humidifi cation system commissioning manual. Notice: for all control connections: • recommended cable size: 0.3 - 0.5 mm² (AWG 22/20) up to 30 m • recommended cable size: 0.8 - 1.3 mm2 (AWG 18/16) > 30 m 6.4.1 Enable pumping station production (PEN): Pump Enable Notice: the pumping station is supplied with the PEN-G0A contacts jumpered.

  • Page 27: Alarm Output

    6.6.2 Water leakage alarm input Water leakage alarm input, detected by the fl ood sensor. Connector Terminals Device WL - GOA Flood sensor (contact open/ closed = alarm present/absent) Tab. 6.i Fig. 6.h 6.6.3 Alarm output The alarm output is activated when one or more alarms are detected. The contact/output can be relayed to a supervisory system. Relay electrical specifi cations Power 500 VA;...

  • Page 28: Maintenance

    For duct humidifi cation, any biocides used for cleaning can only be added discontinuously. Based on its extensive experience in designing intrinsically-safe high-pressure systems that automatically prevent water stagnation, Carel strongly recommends against using biocides as a cleaning method for the humidifi er components in contact with water, unless microbiological con- tamination has been proven.

  • Page 29: Hygiene Measures

    7.1.2 Hygiene measures Below is the list of preventive hygiene checks and their frequency, as required by the VDI 6022-1 guidelines and applicable to the humiFog system when used for duct humidifi cation. Activity Action if necessary 1 month 3 months 6 months Check for damage due to contamination, Clean and repair...

  • Page 30: Pump Maintenance

    CAREL in the manual supplied with the appliance. CAUTION: maintenance must be carried out on the pumping station at least once a year.
  • Page 31 Backup ring O-ring O-ring O-ring Shaft gasket Screw Seal ring O-ring Tab. 7.d Notice: For details on the disassembly and replacement operations, contact the service department at the reference Carel branch. humiFog Multizone Touch Oil-free +0300125EN rel. 1.0 28.09.2023 MAINTENANCE...
  • Page 32 Brief instructions for disassembling the pump: Fig. 7.b Fig. 7.d the spray bottle must be fi lled with water, preferably from reverse osmosis Fig. 7.c Fig. 7.e Fig. 7.f Fig. 7.h Fig. 7.g 7.4.2 Maintenance warning, reset hour counter When the pump has reached 8000h of operation, a warning is generated to notify that planned ordinary maintenance is re- quired, replacing the pump gaskets and pistons (as described in the previous paragraphs).

  • Page 33: Technical Data

    8. TECHNICAL DATA Technical specifi cations UA2501D504 UA6001D504 UA1K31L504 ENVIRONMENTAL CONDITIONS Operating temperature (°C) 5 to 40°C Operating humidity (rH) 0 to 90% non-condensing Storage temperature (°C) -10 to 50°C Storage humidity (rH) 0 to 90% non-condensing Ingress protection IP20 WATER CIRCUIT DATA Maximum fl ow-rate (kg/h) 250 kg/h...
  • Page 34 9. CHECKLIST Final installation checklist 1. Installation site Temperature range 1 – 40 °C (34 – 104 °F). Protected against rain and humidity. Protected against direct sunlight. 2. Water line All water connections fi tted correctly. Materials compatible for use with water treated by reverse osmosis (stainless steel/plastic). Piping on pumping station feedwater line suitable for an operating pressure range of 2 to 5 bars.
  • Page 35 10. ANNEXES Annex A: Wiring diagrams Single-phase power supply: UA250*-UA600* Fig. 10.a humiFog Multizone Touch Oil-free +0300125EN rel. 1.0 28.09.2023 ANNEXES...
  • Page 36 Three-phase power supply: UA1K3* Fig. 10.b humiFog Multizone Touch Oil-free +0300125EN rel. 1.0 28.09.2023 ANNEXES...
  • Page 37 Annex B: Accessories and spare parts kits 1 Mechanical/electrical parts Fig. 10.c Description Ref. fi gure Qty. per humidifi er UAKMWHP001 Pressure gauge, 0 to 100 bars UAKCV0HP01 Pressure control bypass valve, stainless steel UAKM220T53SP Electric motor for UA250*D5*4, 50-60 HZ CE UAKM300T53SP Electric motor for UA600*D5*4, 50-60 HZ CE UAKM400T53SP...
  • Page 38 2 Water circuit parts Fig. 10.d Ref. Quantity per Description fi gure humidifi er HSCONDUT00 Conductivity meter UAKHLP0000SP Low pressure connector kit for UA****5*4 oil-free (contains kit ev load cod. UGKEVOUT00SP ) SPKT0011S0 Low pressure probe UAKSAFVAL0 Safety valve UAKCV0DR01SP Cabinet drain solenoid valve, stainless steel UAKTRAS05V 0-5 V high pressure probe...
  • Page 40 CAREL INDUSTRIES - Headquarters Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 humiFog Multizone Touch Oil-free +0300125IT rel. 1.0 28.09.2023 e-mail: carel@carel.com - www.carel.com...
