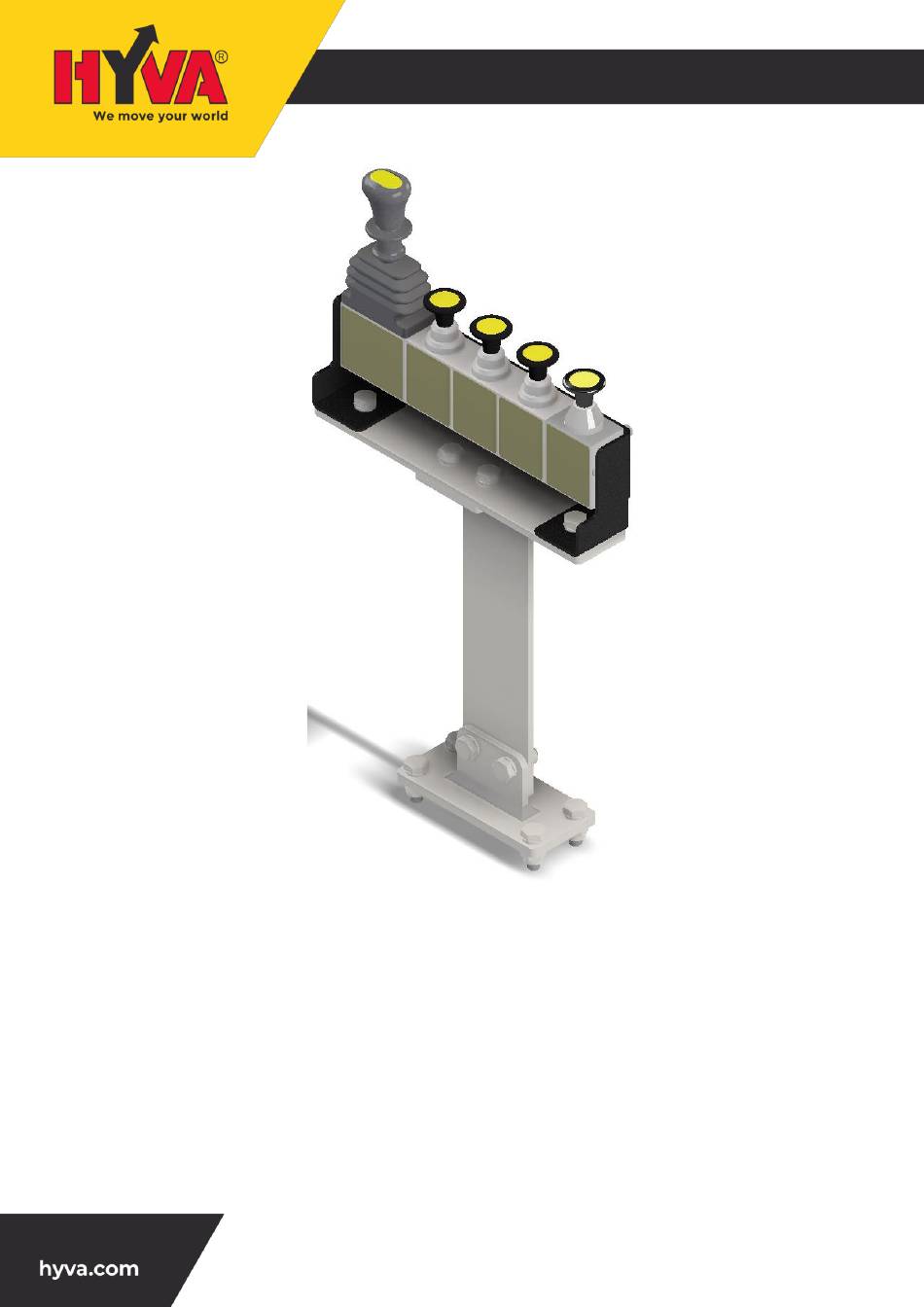

- Page 1 MOUNTING INSTRUCTION IN-CAB CONTROL MOUNTING INSTRUCTIONS TITAN EVO IN-CAB CONTROL...
- Page 2 TITAN EVO IN-CAB CONTROL REVISIONS: 15-10-2021 POS 1 (PROPORTIONAL AIR CONTROL) REPLACED WITH NEW PART NO. 30-11-2020 DOCUMENT CREATION DATE COMMENTS subject to change without notice Page 1 of 16 CH-HL-MI-018/ 15-10-2021 / VP AB...
- Page 3 TITAN EVO IN-CAB CONTROL TITAN EVO IN-CAB CONTROL COMPONENTS EACH IN-CAB CONTROL CONFIGURATION MAY HAVE DIFFERENT NUMBERS OF VALVES BELOW, WE SHOW ALL THE PARTS THAT ARE AVAILABLE FOR TITAN EVO IN-CAB CONTROL. Pos. Part Number Description 14750442 PROPORTIONAL AIR CONTROL...
- Page 4 TITAN EVO IN-CAB CONTROL subject to change without notice Page 3 of 16 CH-HL-MI-018/ 15-10-2021 / VP AB...
- Page 5 TITAN EVO IN-CAB CONTROL subject to change without notice Page 4 of 16 CH-HL-MI-018/ 15-10-2021 / VP AB...
- Page 6 TITAN EVO IN-CAB CONTROL STEP 1: REPLACE EXISTING AIR FITTINGS WITH G1/8”x 4 mm AIR FITTINGS Figure 1 PART NO: 14750442 REMOVE EXISTING A1 & B1 FITTING AND REPLACE IT WITH G 1/8”X 4 MM AIR FITTINGS (34040415). KEEP EXISTING AIR FITTING AT P PORT FOR AIR INLET.
- Page 7 TITAN EVO IN-CAB CONTROL PART NO: 14750455 REMOVE EXISTING AIR FITTING AT “IN” PORT AND PLUGGED IT WITH “G 1/8” AIR PLUG” (INCLUDED IN VALVE MOUNTING KIT) KEEP EXISTING AIR FITTING AT A2 PORT. Figure 3 PART NO: 14750460 REMOVE EXISTING A3 & B3 FITTINGS AND REPLACE IT WITH G 1/8”X 4 MM AIR FITTINGS (34040415).
- Page 8 TITAN EVO IN-CAB CONTROL STEP 2: REMOVE ALLEN SCREWS M5 FROM ALL SECTIONS EXCEPT THE LAST ONE IN THE ROW TO OPEN THE P-LINE (USE 2.5 MM HEXAGON KEY) Figure 5 subject to change without notice Page 7 of 16...
- Page 9 TITAN EVO IN-CAB CONTROL STEP 3: REMOVE THE DOWEL PRESENT IN THE O-RING SEAT (USE 2.5 MM HEXAGON KEY) Figure 6 subject to change without notice Page 8 of 16 CH-HL-MI-018/ 15-10-2021 / VP AB...
- Page 10 TITAN EVO IN-CAB CONTROL STEP 4: FIT THE O-RING (TO SEAL THE P-CONNECTION BETWEEN THE SECTIONS) IN THE EXTRA SECTIONS Figure 7 subject to change without notice Page 9 of 16 CH-HL-MI-018/ 15-10-2021 / VP AB...
- Page 11 TITAN EVO IN-CAB CONTROL STEP 5: SECURE THE OTHER SECTIONS TO MAIN SECTIONS USING THE SCREWS INCLUDED IN THE MOUNTING KIT. MAKE SURE THE O-RING IS POSITIONED CORRECTLY BEFORE TIGHTENING THE SCREWS. NOTE: 3/2 AIR CONTROL VALVE (14750455) SHOULD BE MOUNTED AT THE END.
- Page 12 TITAN EVO IN-CAB CONTROL STEP 6: MOUNT THE VALVE MOUNTING BRACKET BY USING THE M6 BOLTS. Figure 9 subject to change without notice Page 11 of 16 CH-HL-MI-018/ 15-10-2021 / VP AB...
- Page 13 TITAN EVO IN-CAB CONTROL STEP 7: MOUNT THE STAND PLATE AND CONNECTION PLATE BY USING M10 BOLTS Figure 10 ADJUST STAND PLATE HEIGHT (H mm) BY CUTTING THE PLATE FROM BOTTOM AND DRILL Ø11 mm (2x) HOLES ACCORDING TO THE DIMENSIONS GIVEN.
- Page 14 TITAN EVO IN-CAB CONTROL STEP 8: POSITIONING THE IN-CAB CONTROL DETERMINE THE INCAB MOUNTING POSITION INSIDE THE TRUCK CABIN. DRILL Ø11 mm (4x) HOLES AND POSITION THE BASE PLATE ASSEMBLY. FIX THE STAND PLATE WITH BASE PLATE ASSEMBLY BY USING M10 BOLTS.
- Page 15 TITAN EVO IN-CAB CONTROL KEEP THE CABLES AWAY FROM HEAT SOURCES OR MOVING PARTS. THE CABLES SHOULD NOW BE LEAD TOWARDS THE VALVE BLOCK, MAKE USE OF THE CABLE BUNDLES OF THE VEHICLE ITSELF, AND HOLD THE LEADS IN PLACE EVERY 20CM OR SO WITH TIE WRAPS.
-
Page 16: Part Numbers
TITAN EVO IN-CAB CONTROL IN MOST OF THE CASES ELECTRIC PTO SWITCH FITTED EITHER IN SIGNALLING DISPLAY OR WITH A STANDARD SWITCH FROM THE TRUCK MANUFACTURAR SO IN THAT CASE ALL PRTS FROM 3/2 BUTTON TIP AIR CONTROL VALVE ( 14750455) SHOULD BE PLUGED WITH “G 1/8” AIR PLUG”...
