Adjustable J-Rack
Adjustable J-Racks
Rev. 4.21
Suspenz® is very serious about safety. It is critical that you properly secure this rack to your vehicle.
Failure to do so could result in serious bodily injury or property damage. Before assembly read the
complete manual. Be sure that you have all the parts and that they are not damaged in any way. Do not
modify the rack or the mounting hardware in any manner. Check to make sure that both the rack and
watercraft are secure before driving. Periodically inspect the rack and all parts for signs of wear or damage.
This symbol in the instructions indicates an important warning. Please heed these warnings.
Suspenz, Inc.
8725 Roswell Road #0-220
Atlanta GA 30350
Mounting
Hardware
SAFETY INFORMATION
Model # 44-0143
Parts List
Qty
Part Name
2

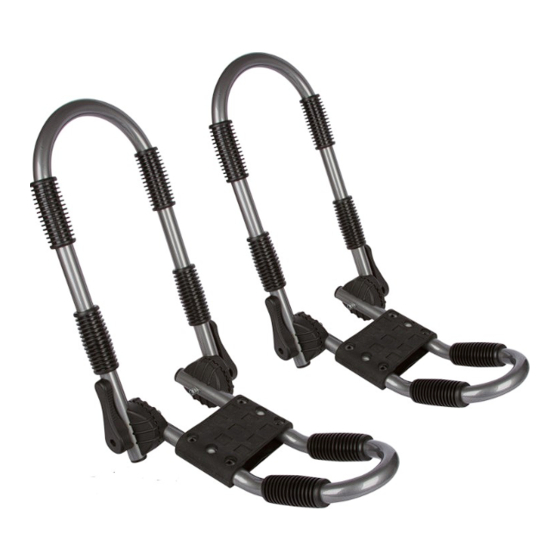

Adjustable J-Rack
2
Tie Down Strap
2
Bow & Stern Tie Down
4
Underside Brackets
8
SS Bolt Set (60mm)
8
SS Bolt Set (75mm)
8
SS Plastic T-Knob
8
SS Washer
Holds up to 80 lbs
Tie Down
Straps
Bow & Stern
Tie Downs
Customer Service:770-518-0045
Fax: 770-518-8507
Website: www.suspenz.com
Advertisement
Table of Contents
Related Manuals for SUSPENZ 44-0143
Summary of Contents for SUSPENZ 44-0143
- Page 1 Rev. 4.21 SAFETY INFORMATION Suspenz® is very serious about safety. It is critical that you properly secure this rack to your vehicle. Failure to do so could result in serious bodily injury or property damage. Before assembly read the complete manual. Be sure that you have all the parts and that they are not damaged in any way. Do not modify the rack or the mounting hardware in any manner.
- Page 2 Do not exceed the vehicle manufactures rated loading for roof racks shown in the owners manual. For factory installed crossbars add the weight of these Suspenz roof racks (10 lbs. for two) to the weight of your watercraft and compare to the allowable load in the owners manual.
- Page 3 T-Knobs. If they do not, switch to the longer 75mm bolts (supplied). If these are still too short, contact Suspenz for 100mm bolts. After fully tightening the T-Knobs, try sliding and twisting the J-Rack on the crossbar. If the J-Rack moves or twists retighten the T-Knobs to eliminate this play.
- Page 4 It is important that the straps loop around the crossbar so that the watercraft is secured to the crossbar. Camlock lever Pull strap to se- cure watercraft to crossbar. Suspenz®, Inc. Customer Service:770-518-0045 8725 Roswell Road #0-220 Fax: 770-518-8507 Atlanta GA 30350...
- Page 5 Push lever to release and loosen The Bow & Stern tiedowns must connect to metal not plastic on the vehicle. Use caution when tightening Bow & Stern tiedowns as over-tightening can deform the watercraft Suspenz®, Inc. Customer Service:770-518-0045 8725 Roswell Road #0-220...
- Page 6 Page 6 Roof Rack Carriers These instructions cover the installation and use of Suspenz Roof Rack Carriers. It is important to read & understand the requirements and limitations of the roof rack on the vehicle and the operating instructions for the vehicle.
