EZ Roller™ V-Rack
Rev. 4.21
Suspenz® is very serious about safety. It is critical that you properly secure this rack to your vehicle.
Failure to do so could result in serious bodily injury or property damage. Before assembly read the
complete manual. Be sure that you have all the parts and that they are not damaged in any way. Do not
modify the rack or the mounting hardware in any manner. Check to make sure that both the rack and
watercraft are secure before driving. Periodically inspect the rack and all parts for signs of wear or damage.
This symbol in the instructions indicates an important warning. Please heed these warnings.
Suspenz, Inc.
8725 Roswell Road #0-220
Atlanta GA 30350
V-Rack with Static Pads
V-Rack with EZ Roller™
Pads (yellow collars)
Mounting
Hardware
SAFETY INFORMATION
Model # 44-0166
Parts List
Qty
1

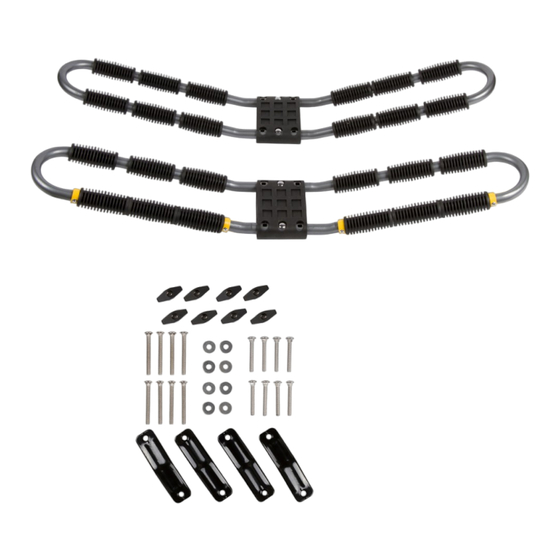

V-Rack with EZ Roller
1
V-Rack with Static Pads
2
Tie Down Strap
2
Bow & Stern Tie Down
4
Underside Brackets
8
SS Bolt Set (60mm)
8
SS Bolt Set (75mm)
8
SS Plastic T-Knob
8
SS Washer
Bow & Stern
Tie Downs
Customer Service:770-518-0045
Website: www.suspenz.com
Part Name
Pads
™
Holds up to
90lbs
Tie Down
Straps
Fax: 770-518-8507
Advertisement
Related Manuals for SUSPENZ EZ Roller 44-0166
Summary of Contents for SUSPENZ EZ Roller 44-0166

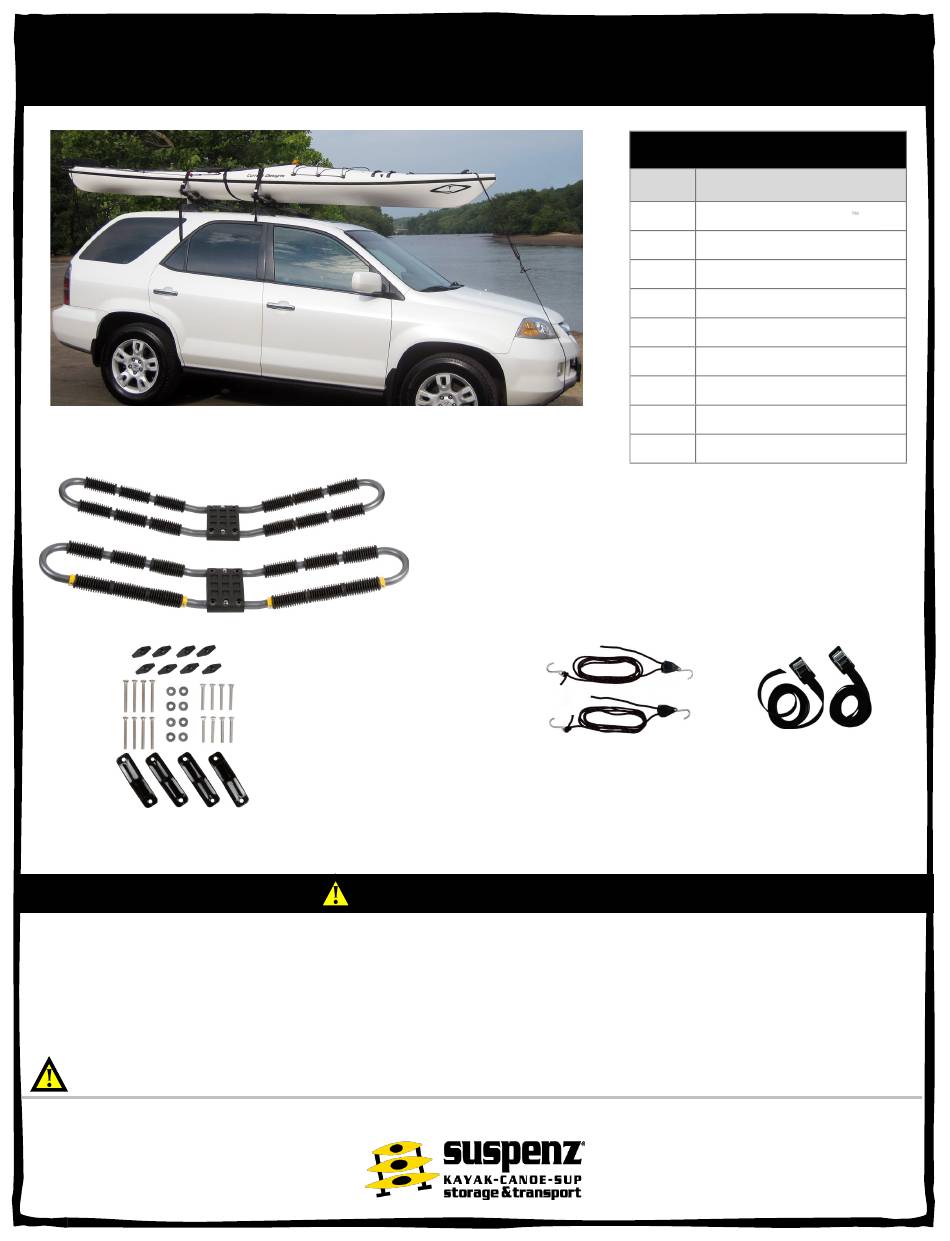

- Page 1 Rev. 4.21 SAFETY INFORMATION Suspenz® is very serious about safety. It is critical that you properly secure this rack to your vehicle. Failure to do so could result in serious bodily injury or property damage. Before assembly read the complete manual. Be sure that you have all the parts and that they are not damaged in any way. Do not modify the rack or the mounting hardware in any manner.
- Page 2 Do not exceed the vehicle manufactures rated loading for roof racks shown in the owners manual. For factory installed crossbars add the weight of these Suspenz roof racks (13 lbs. for two) to the weight of your watercraft and compare to the allowable load in the owners manual.
- Page 3 (no yellow collars) that mounts to the front crossbar. • Mount the Suspenz V-Rack Carriers so they are aligned along the length of the vehicle (fig. 4) The V-Racks must not extend beyond the width of the vehicle.
- Page 4 Toss the free end of the strap over the watercraft. From the other side of the vehicle, thread the strap around the crossbar such that the strap is inside the V-Rack loop. (Fig. 7) • Toss the strap back over the watercraft. Suspenz®, Inc. Customer Service:770-518-0045 8725 Roswell Road #0-220 Fax: 770-518-8507 Atlanta GA 30350 Website: www.suspenz.com...
- Page 5 Pro Tip: Putting a couple twists in the strap can reduce noise due to strap hum Camlock lever Pull strap to secure wa- tercraft to crossbar. Suspenz®, Inc. Customer Service:770-518-0045 8725 Roswell Road #0-220 Fax: 770-518-8507 Atlanta GA 30350 Website: www.suspenz.com...
- Page 6 Push lever to release and loosen The Bow & Stern tiedowns must connect to metal not plastic on the vehicle. Use caution when tightening Bow & Stern tiedowns as over-tightening can deform the watercraft Suspenz®, Inc. Customer Service:770-518-0045 8725 Roswell Road #0-220...
- Page 7 Page 7 Roof Rack Carriers These instructions cover the installation and use of Suspenz Roof Rack Carriers. It is important to read & understand the requirements and limitations of the roof rack on the vehicle and the operating instructions for the vehicle.
