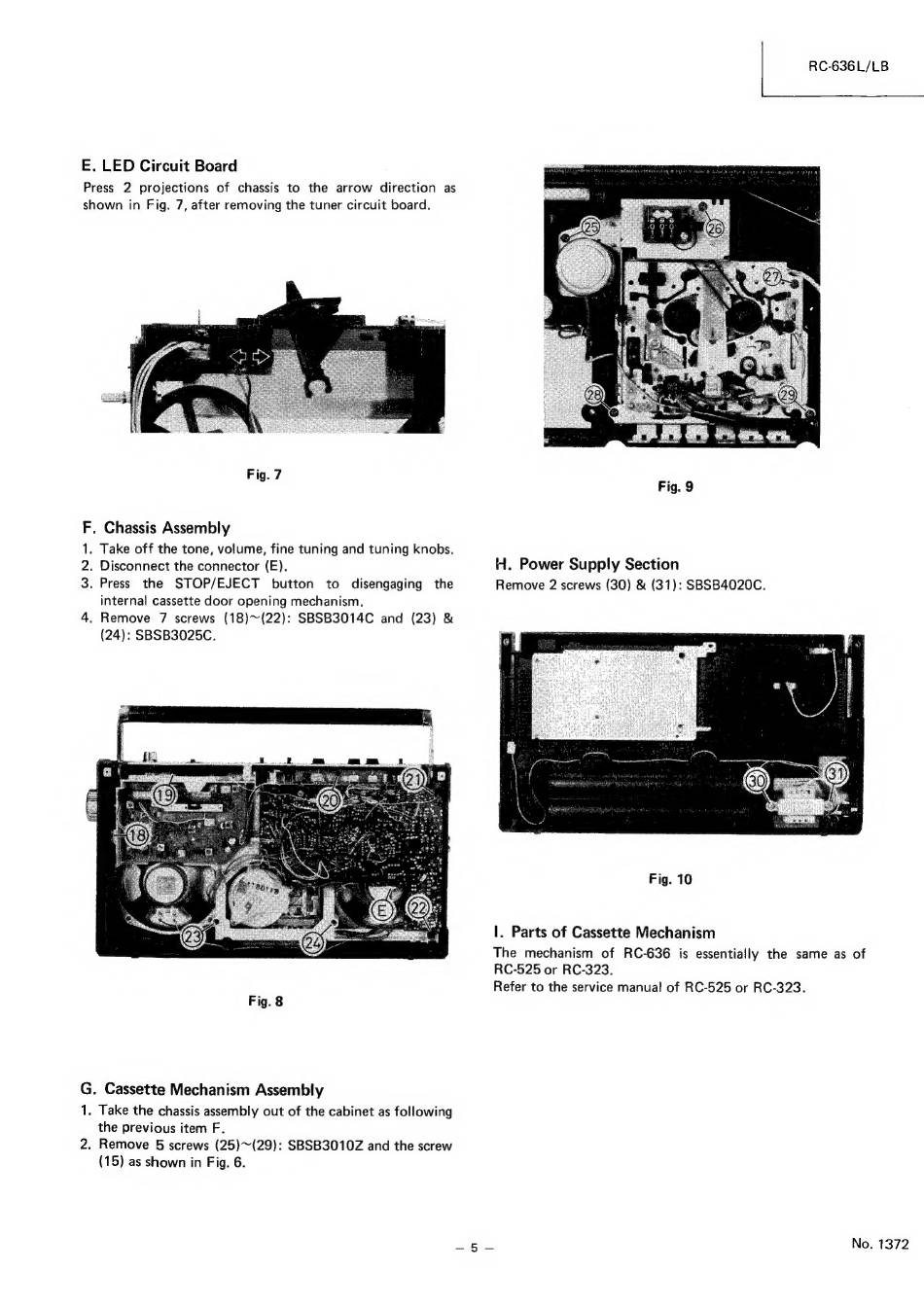

JVC RC-636L Service Manual page 5

RC-636L/LB
E. LED Circuit Board
Press 2 projections of chassis to the arrow direction as
shown in Fig. 7, after removing the tuner circuit board.
Fig. 7
. Fig. 9
F. Chassis Assembly
1. Take off the tone, volume, fine tuning and tuning knobs. :
2. Disconnect the connector (E). H. Power Supply Section
3. Press the STOP/EJECT button to disengaging the Remove 2 screws (30) & (31): SBSB4020C.
internal cassette door opening mechanism.
4. Remove 7 screws (18)~(22): SBSB3014C and (23) &
(24): SBSB3025C.
Fig. 10
1. Parts of Cassette Mechanism
The mechanism of RC-636 is essentially the same as of
RC-525 or RC-323.
Refer to the service manual of RC-525 or RC-323.
Fig. 8
G. Cassette Mechanism Assembly
1. Take the chassis assembly out of the cabinet as following
the previous item F.
2. Remove 5 screws (25)~(29): SBSB3010Z and the screw
(15) as shown in Fig. 6.
_5_ No. 1372
