Users and Installation Manual: Aqua-Scope Monitor (AQSLWE02)
Aqua-Scope Monitor
SKU: AQSLWE02
Version: 2.0.0
Product Description
The Aqua-Scope water monitor detects water leaks and records the total water consumption in the
house as well as the pressure and temperature of the water. The device applies advanced signal
processing and analyzes the sound waves, which move in the domestic water distribution pipes when
water is taken or there are leaks. Water is a very good conductor of sound. A single sensor is
therefore sufficient, to monitor the whole house or apartment. In addition, to the sensor other
peripheral devices such as valve motors or flood sensors can be associated to extend the functionality of
the overall system.

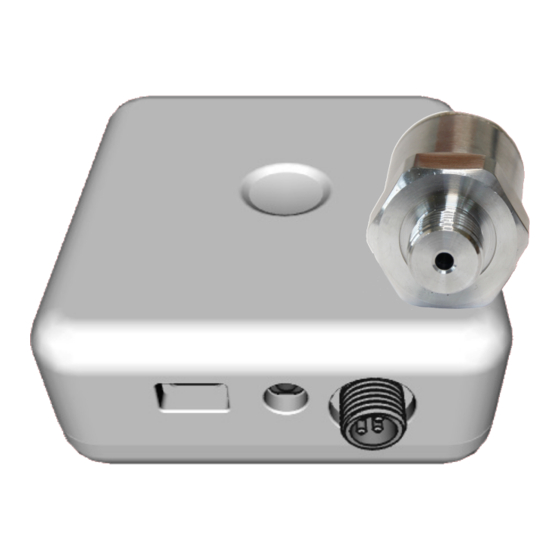

The device consists of two parts:
Main housing for signal processing and radio communication with battery compartment.
The external sensor head is connected to the water pipe. The stainless steel sensor head has a
silicon sensor mounted in silicone oil for highly accurate and low-noise pressure measurements in
a wide operating range. The measuring range for pressure is between 1 and 10 bar. The sensor
values are converted into digital values directly in the measuring head to suppress interference
from the connection to the main housing. In addition, the temperature of the liquid medium is
measured directly at the stainless steel diaphragm and is therefore very precise.
The sensor can send an alarm message if freely definable threshold values are exceeded or not reached.
The sensor's polling frequency can be set between 0.1 second and several minutes and defines the
battery life. For a measuring interval of 1 second, a battery life of approx. 10 years is calculated.
The device communicates via LoRaWAN as a Class A device and can also be operated as a Class C
device via configuration parameters.
The device is powered either via an external power supply with USB-C power supply unit or via an
optional internal ER26500 battery (Bobbin Cell C).
Both the sensor head (IP67) and the main housing (IP65) are waterproof and can be used outdoors or in
particularly humid and/or dirty environments.
