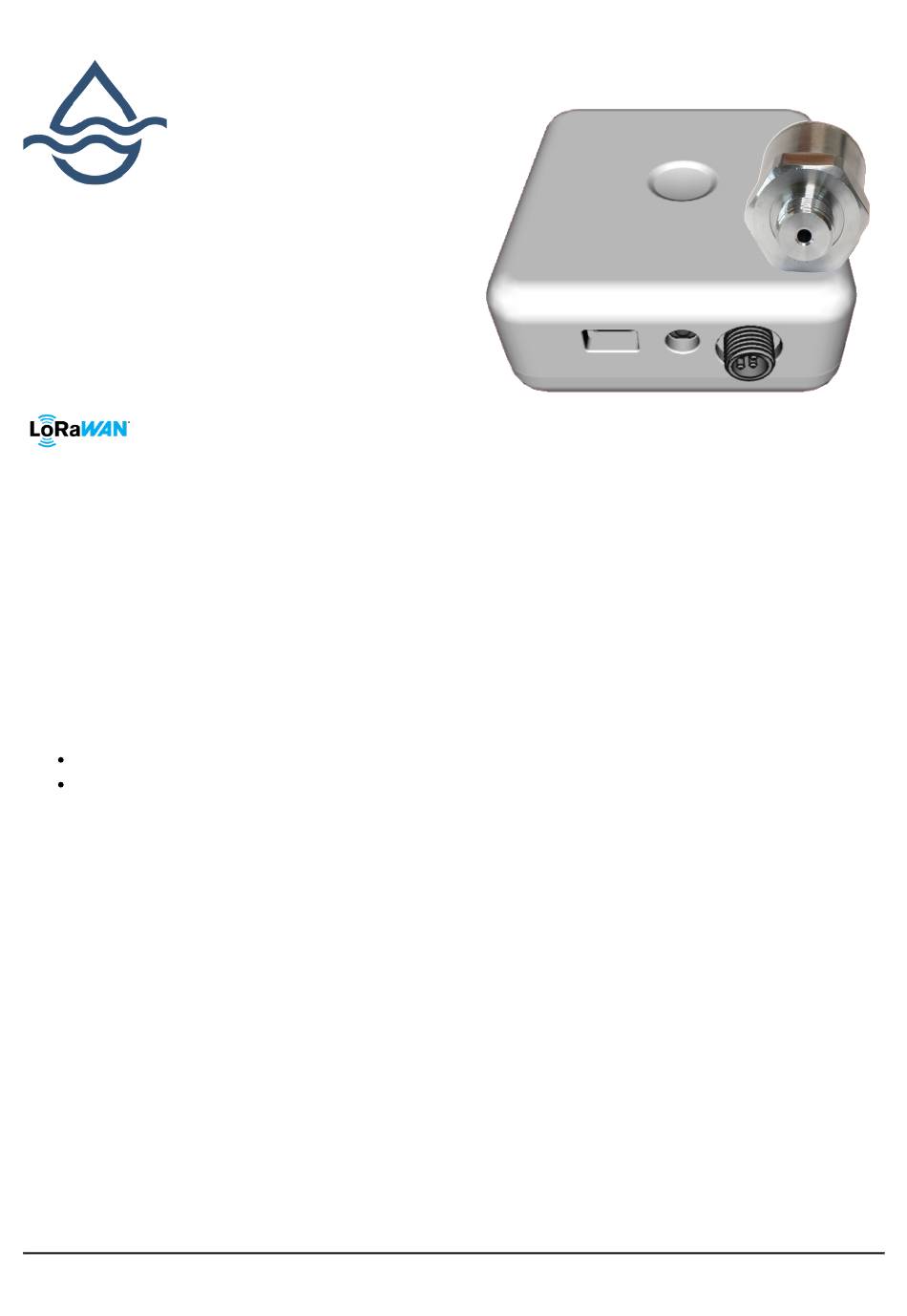

Users and Installation Manual: Aqua-Scope Monitor (AQSLWE02)
Aqua-Scope Monitor
SKU: AQSLWE02
Version: 2.0.0
Product Description
The Aqua-Scope water monitor detects water leaks and records the total water consumption in the
house as well as the pressure and temperature of the water. The device applies advanced signal
processing and analyzes the sound waves, which move in the domestic water distribution pipes when
water is taken or there are leaks. Water is a very good conductor of sound. A single sensor is
therefore sufficient, to monitor the whole house or apartment. In addition, to the sensor other
peripheral devices such as valve motors or flood sensors can be associated to extend the functionality of
the overall system.

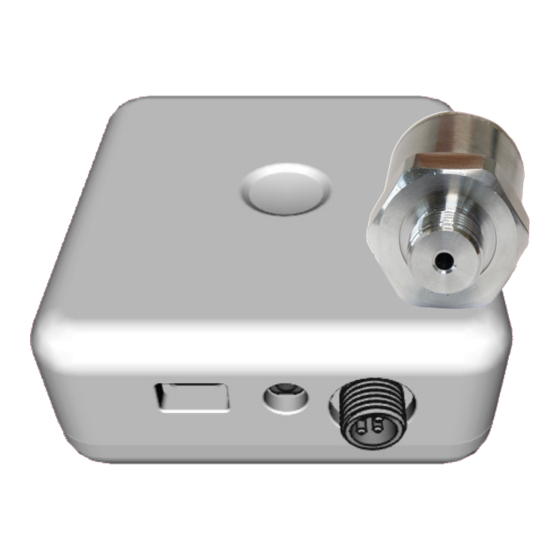

The device consists of two parts:
Main housing for signal processing and radio communication with battery compartment.
The external sensor head is connected to the water pipe. The stainless steel sensor head has a
silicon sensor mounted in silicone oil for highly accurate and low-noise pressure measurements in
a wide operating range. The measuring range for pressure is between 1 and 10 bar. The sensor
values are converted into digital values directly in the measuring head to suppress interference
from the connection to the main housing. In addition, the temperature of the liquid medium is
measured directly at the stainless steel diaphragm and is therefore very precise.
The sensor can send an alarm message if freely definable threshold values are exceeded or not reached.
The sensor's polling frequency can be set between 0.1 second and several minutes and defines the
battery life. For a measuring interval of 1 second, a battery life of approx. 10 years is calculated.
The device communicates via LoRaWAN as a Class A device and can also be operated as a Class C
device via configuration parameters.
The device is powered either via an external power supply with USB-C power supply unit or via an
optional internal ER26500 battery (Bobbin Cell C).
Both the sensor head (IP67) and the main housing (IP65) are waterproof and can be used outdoors or in
particularly humid and/or dirty environments.
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQSLWE02 and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua-Scope AQSLWE02

Summary of Contents for Aqua-Scope AQSLWE02

  • Page 1 Version: 2.0.0 Product Description The Aqua-Scope water monitor detects water leaks and records the total water consumption in the house as well as the pressure and temperature of the water. The device applies advanced signal processing and analyzes the sound waves, which move in the domestic water distribution pipes when water is taken or there are leaks.

  • Page 2: Installation

    8. Please check all three connections for some seconds that there are no leaks. 9. Attach the Aqua-Scope to a suitable location using double-side tape and plug the sensor head into the water-proof screwable terminal of the main device. Attach the wired flood sensor to the small round terminal if desired.

  • Page 3: Functions And Usage

    Pressure of the water. Consumption of the last 15 min/1 hour. The sensor values can be accessed in the Aqua-Scope App or they are reported into your network of choice. The main function of the device is analyzing the water distribution system for different kind of anomalies and report them as alarm.
  • Page 4 All these alarm conditions are monitored continuously. Alarms are indicated on the device with red LED and buzzer sound (both can be disabled in the app) and they are reported into the Aqua-Scope Cloud and shown in the Aqua-Scop App. If the alarm condition disappears the alarm is reversed but will remain in green color in the app for information.
  • Page 5 16 Bit Values. The table below describes the configuration parameters and its values. Downlink Command Sensor Get: 0x06 - ID (2 Byte): This command requests the report of Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
  • Page 6 0x8000 (Bit 15) : Sensor Head not in contact with water. LoRaWAN Special Commands The Command 0x01 0x03 (2 Byte) starts the Pipe-Check process. LoRaWAN Configuration Parameters Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
  • Page 7 0x2000 (Bit 13) : n.n. 0x4000 (Bit 14) : Frequency msb, 0x00 = EU, 0x01 = US, 0x02 = nn., 0x03 = nn. 0x8000 (Bit 15) : Frequency lsb Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
  • Page 8 This value defines the maximum loss in pressure per minute during Pipe-Check in mBar. When hit, the Pipe-Check will continue for several more minutes to determine the elevation and the orifice size of the detected leak. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...

  • Page 9: Led Signals

    PRV Impact An installed pressure reducing valve (PRV) is common in almost all contemporary European home water installations. Without PRV the Aqua-Scope Monitor is still applicable, but some functions are limited. No limitation: Pressure Monitor, Temperature Monitor, Flood-Alarm, Frost-Alarm, Overpressure-...

  • Page 10: Scope Of Delivery

    User Interface: 4 colored LED, single touchless button Environmental Conditions: Shipment and Storage: -65 °C … 125 °C Operation: - 20 °C … 50 °C Rel. Humidity: 0...90 % Minimal Flow Speed: Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...

  • Page 11: Support And Contact

    The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve the right to make any alterations that arise as the result of technical development.
  • Page 12 Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de rádio AQSLWE02 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce Română...

  • Page 13: Disposal Guidelines

    Users and Installation Manual: Aqua-Scope Monitor (AQSLWE02) Slovensky Aqua-Scope Technology OÜ týmto vyhlasuje, že rádiové zariadenie typu AQSLWE02 je v slade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.aqua- scope.com/ce Soumi Aqua-Scope Technology OÜ vakuuttaa, että radiolaitetyyppi AQSLWE02 on direktiivin 2014/53/EU mukainen.
