Instruction Manual
RADIO CONTROL
Cod.
001104
Receiver

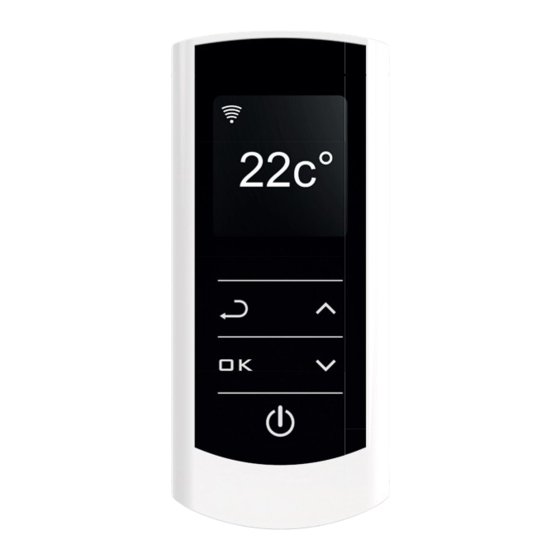

Radio control
This manual is intended for the fi nal user and
explains the operation of the radio control.
This instruction manual must be considered an
integrated part of the use and maintenance
manual and must always accompany the stove
throughout the life of the product, even in the
case of transfer to third parties.
1
Advertisement
Table of Contents
Related Manuals for Unical 001104
Summary of Contents for Unical 001104
- Page 1 Instruction Manual RADIO CONTROL Cod. 001104 RADIO CONTROL AND RECEIVER Receiver Radio control This manual is intended for the fi nal user and explains the operation of the radio control. This instruction manual must be considered an integrated part of the use and maintenance...
- Page 2 Radio control and receiver The radio control is able to receive and send signals to the main board, therefore it is also able to function as a room thermostat by detecting the temperature of the room in which it is positioned and send it to the stove. To send the exact room temperature to the board, it is recommended to place it away from heat sources.
- Page 3 Radio control confi guration The radio control must be associated with the stove in order to fun- ction. To do this, follow the instructions below: Set the switch on the back of the stove to Language On the back of the stove there is a receiver. Press the Wi-Fi Italiano Italiano English...
- Page 4 Ignition, increase and decrease power and temperature Temperature. By pressing the button Tu 11:55 temperature starts to ash. To adjust it, press 29° C to increase and to decrease the desired room Tu 11:55 temperature. 27° C Cooling Down Power. By pressing the button the stove Tu 11:55 power starts to ash.
- Page 5 Ducted This menu allows you to select the speed of the ducting fan (where provided). User User Duct Motor By default it is OFF, increase and decrease Language Date-Time the speed from 1 to 5 using the Weekly Timer and the key and con rm with the Duct Motor Duct Motor...
- Page 6 Alarm signal Display Kind of problem Solution The stove cannot ignite Fill the tank with pellets AL01 no ignition at the rst start-up Start up again The ambient sensor is broken AL02 defected NTC sensor Contact an Authorized Assistance Center or not connected to the PCB The stove switched off Fill in the tank with pellets...
- Page 7 NOTES...
- Page 8 NOTES...
