Bennett BRC4000 Manual

For information
on
installing
a clm?lete
BOLT Tiim
Thb
System,
please uisit
BennexTiimThbs.com/BOlT:Install

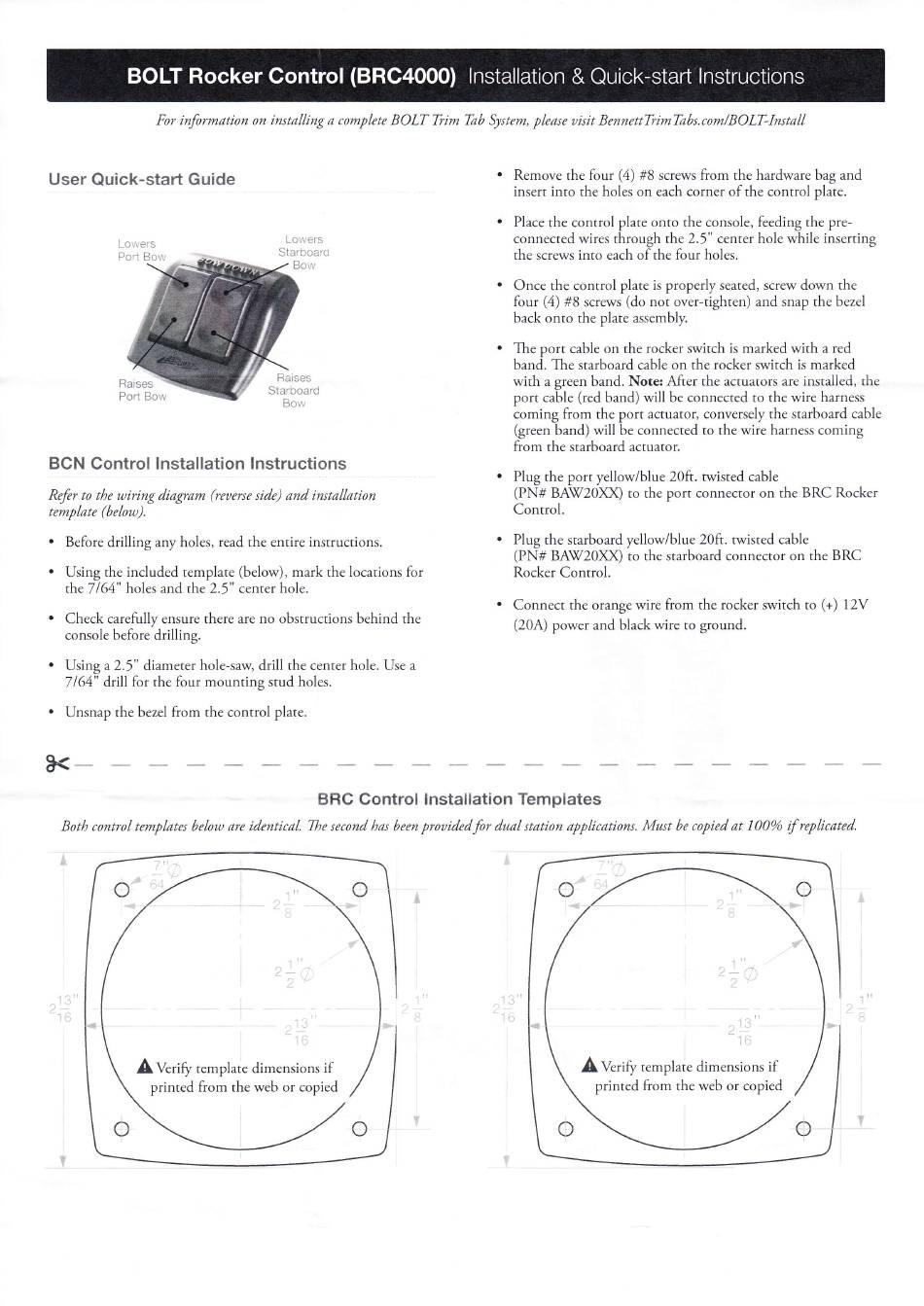

User Quick-start Guide
BCN Control
lnstallation Instructions
Refer to
the
wiring
diagram (reuerse
side)
and installation
template
(below).
.
Before
drilling
any holes, read
the entire instructions.
.
Using the
included template (below), mark
the
locations for
the
7
164" holes
and
the
2.5"
center hole.
.
Check carefully
ensure there are
no obstructions behind
the
console beFore
drilling.
.
Using
a
2.5" diameter hole-saw,
drill
the
center
hole.
Use
a
7164"
drill for the four mounting stud holes.
.
Unsnap the
bezel
from the control
plate.
Remove
the
four
(4) #8
screws
from
the hardware bag and
insert
into
the holes
on
each
corner
ofthe
control
plate.
Place
the control plate
onto
the console, feeding the pre-
connected wires
through
the
2.5"
center hole
while inserting
the
screws
into
each
of
the
four
holes.
Once the
control
plate
is
properly
seated,
screw down the
four (4) #8
screws
(do
not over-tighten) and
snap the
bezel
back
onto
the
plate
assembly.
The
port
cable
on the rocker switch
is
marked
with
a
red
band. The starboard cable on the
rocker switch
is
marked
with
a
green
band. Note:
After
the
actuarors are
installed,
the
port
cable (red
band)
will
be connected
to
the wire
harness
coming from the
port
actuator, conversely the starboard
cable
(green
band)
will
be connected
to
the wire
harness
coming
from the
starboard actuator.
Plug the port yellow/blue
20ft.
twisted
cable
(PN#
BA\V2O)OQ to
the
port connector on the BRC Rocker
Control.
Plug the
starboard
yellow/blue
20ft.
twisted cable
(PN# BA\720XX) to
the starboard
connector on the BRC
Rocker
Control.
Connect the
orange
wire from
the rocker switch
to
(+) 12V
(20A) power and
black wire
to
ground.
8<-
BRG
Control lnstallation Templates
Both
control
templates below are
identical.
7he second
has
been
prouidedfor dual
station
applicationl
Must
be
copied
at
100%
if
replicated.
AV.rify
template dimensions
if
printed from
the
web or
copied
AVeri$,
template dimensions
if
printed from
the
web
or
copied
