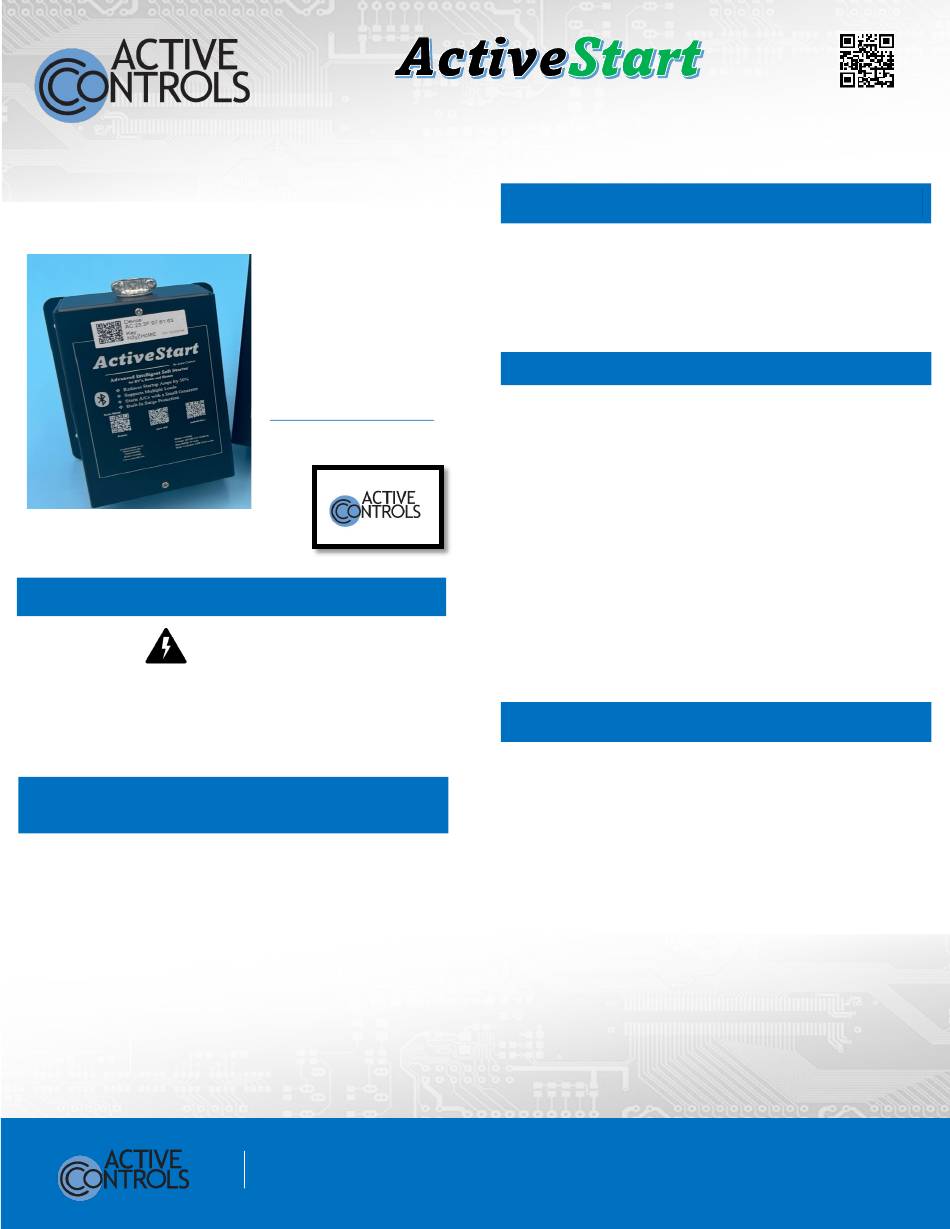

Active Controls ActiveStart ACS20WS Installation, Operation & Application Manual

Important Safety Information

Fully Insert all plugs.

Keep away from children and pets.

Do not repair or modify.

For outdoor use only.

Store indoors when not in use.


Features

 Starting current reduction (50%) and
programable startup power.
 Mobile app is Bluetooth-enabled and
compatible with iOS and Android devices.
 Built in Surge protection.
 Waterproof, UV-proof module resists weather
extremes.
 Anti-theft design to easily secure to power
source.
 Diagnostic LED indicators inside of box for
technicians.
ACS20WS & ACS30WS
Installation, Operation &
Application Guide
For further information visit us at
www.active-controlsllc.com
Designed and
Assembled in
the USA
Soft Start

Application

The ACS30WS (30amps), ACS20WS (20amps) is intended
for recreational vehicle (RV), residential, and commercial
applications. These devices will monitor system health
including current, voltage, frequency, and programmable
startup power.
S
PECIFICATIONS
Inputs: L1 & N.

Nominal Voltage: 120 VAC, 50-60 Hz.

Over Voltage Limits: 120 VAC nominal=140 VAC.

Under Voltage Limits: 120 VAC nominal=100 VAC.

Surge Protection: 2100 Joules.

Current: Maximum nominal= 30 AMP.

Over Current Limits:

ACS20WS = 20A.
ACS30WS = 30A.
Operating Temperature: -4

Storage Temperature: -40

Humidity: 5-95% Non-considering.

Weight: 2.1 Lbs. (0.95kg).

Warranty: One year limited warranty (standard)


Installation

1.Wire unit into RV or Motorhome power downstream
of any transfer switch.
2.Please note the Line In side vs the Line out and wire
accordingly. The unit will not operate if line in is wired
to the output side.
3.Allow self-diagnostic function to determine if voltage,
frequency is correct then the source power is ready to
use and outputs turn on.
4.After 45-60 seconds the output will feed power to the
RV breaker panel.
5.If the Output shuts off and power to the RV/house/
boat is off, that indicates a Power Alert related to
Current, Voltage or any other fault that has occurred.
The Mobile App will show the cause of the shutdown.
The unit will automatically reset and turn on the
outputs after a 2-3 minute delay.
2003 West McNab Road STE 1, Pompano Beach FL 33069
Email: sales@active-controlsllc.com Call: 754-307-1303
www.active-controlsllc.com
Scan to see a full
specification,
installation, & more on
our website
º ºF (-20ºC to 80ºC)
F to 176
º ºF (-20ºC to 65ºC)
F to 149
