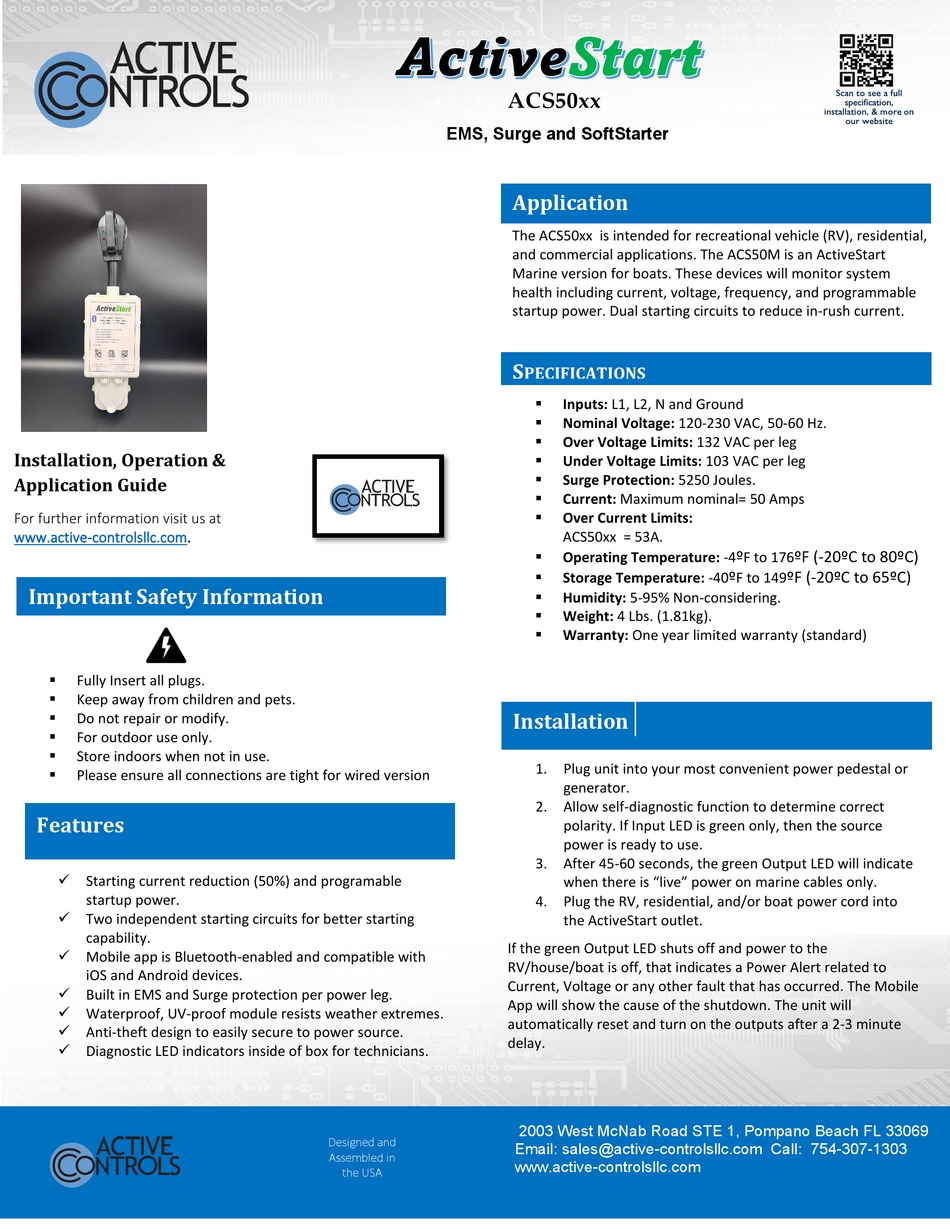

Active Controls ActiveStart ACS50 Series Installation, Operation & Application Manual

Installation, Operation &
Application Guide
For further information visit us at
www.active-controlsllc.com.
Important Safety Information
Fully Insert all plugs.

Keep away from children and pets.

Do not repair or modify.

For outdoor use only.

Store indoors when not in use.

Please ensure all connections are tight for wired version

Features
 Starting current reduction (50%) and programable
startup power.
 Two independent starting circuits for better starting
capability.
 Mobile app is Bluetooth-enabled and compatible with
iOS and Android devices.
 Built in EMS and Surge protection per power leg.
 Waterproof, UV-proof module resists weather extremes.
 Anti-theft design to easily secure to power source.
 Diagnostic LED indicators inside of box for technicians.
EMS, Surge and SoftStarter
If the green Output LED shuts off and power to the
RV/house/boat is off, that indicates a Power Alert related to
Current, Voltage or any other fault that has occurred. The Mobile
App will show the cause of the shutdown. The unit will
automatically reset and turn on the outputs after a 2-3 minute
delay.
Designed and
Assembled in
the USA

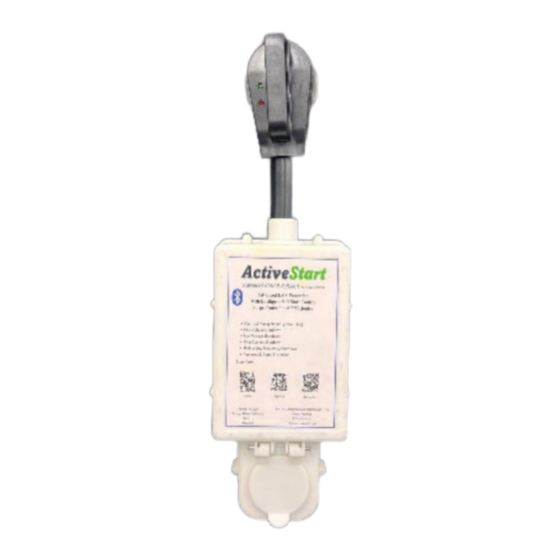

ACS50xx
Application
The ACS50xx is intended for recreational vehicle (RV), residential,
and commercial applications. The ACS50M is an ActiveStart
Marine version for boats. These devices will monitor system
health including current, voltage, frequency, and programmable
startup power. Dual starting circuits to reduce in-rush current.
S
PECIFICATIONS
Inputs: L1, L2, N and Ground

Nominal Voltage: 120-230 VAC, 50-60 Hz.

Over Voltage Limits: 132 VAC per leg

Under Voltage Limits: 103 VAC per leg

Surge Protection: 5250 Joules.

Current: Maximum nominal= 50 Amps

Over Current Limits:

ACS50xx = 53A.
Operating Temperature: -4

Storage Temperature: -40

Humidity: 5-95% Non-considering.

Weight: 4 Lbs. (1.81kg).

Warranty: One year limited warranty (standard)

Installation
1. Plug unit into your most convenient power pedestal or
generator.
2. Allow self-diagnostic function to determine correct
polarity. If Input LED is green only, then the source
power is ready to use.
3. After 45-60 seconds, the green Output LED will indicate
when there is "live" power on marine cables only.
4. Plug the RV, residential, and/or boat power cord into
the ActiveStart outlet.
