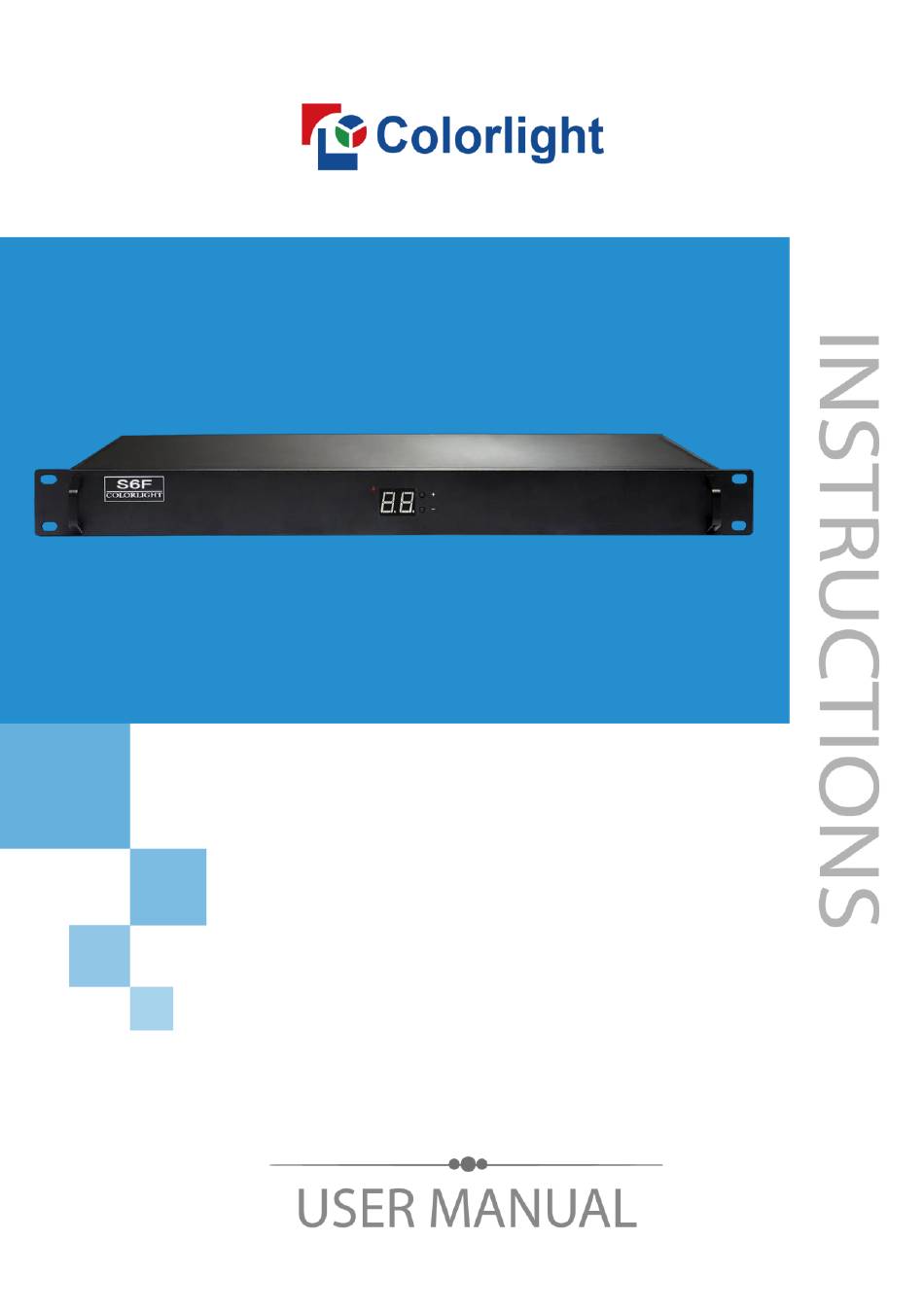

  • Page 1 S6F HD Sender...

  • Page 2: Table Of Contents

    Content 1. Introduction....................1 2. Interface Description ................... 2 3. Hardware Connection .................. 3 4. LEDVISION Installation and Preliminary Configuration ....... 4 4.1 Computer Configuration ..............4 4.2 LEDVISION Installation ..............4 4.3 Graphic Card Settings ............... 6 5. Parameter Configuration ................9 5.1 Detect Sender and Receiving Card ...........

  • Page 3: Introduction

    www.colorlightinside.com 1. Introduction S6F is a HD sender with powerful video signal receiving capacity, it supports DVI and HDMI signal input and loop output, in which max input resolution is 1920*1200 pixels. Meanwhile, 6 gigabit Ethernet outputs and 3 fiber outputs support the LED screen of 4096 pixels in maximum width or 2560 pixels in maximum height.

  • Page 4: Interface Description

    www.colorlightinside.com 2. Interface Description Interface Functions Remarks Power Switch On/off AC power supply interface Power Supply (AC100～240V) Network Control (communicate with 100M Ethernet PC, or access network USB output, cascading with next USB_OUT sender USB input, which connects with PC USB_IN to configure parameters Audio input, input audio signal and...

  • Page 5: Hardware Connection

    www.colorlightinside.com 3. Hardware Connection 1) Power Supply (PCI): AC 100～240V 2) Video Signal Input (DVI/HDMI): Connect PC with S6F through proper DVI/HDMI cable. 3) Screen Configuration (USB): Use a standard USB A/B cable to connect S6F with PC for S6F configuration.

  • Page 6: Ledvision Installation And Preliminary Configuration

    HD video or not. 4.2 LEDVISION Installation Please download the installation package of the LEDVISION software from Colorlight’s official website www.colorlightinside.com, and complete the installation according to the diagrams shown below. ① Run the software package, and select [English] for installer language.
  • Page 7 www.colorlightinside.com ② After selecting a language, an installation wizard like below will appear, click [Next]; Then choose installation location, click [Browse] to change default target location, then click [Next] after completing;...

  • Page 8: Graphic Card Settings

    www.colorlightinside.com Choose components according to your own computer status, click [Install] to complete; After the installation is complete you are ready to use LEDVISION. 4.3 Graphic Card Settings Set up the working mode of the computer graphic card after completing hardware connection and powering S6F on, you can select Duplicate Mode and Extend Mode according to the different requirements.
  • Page 9 www.colorlightinside.com ⚫ Extend Mode: That the contents displayed on LED screen are inconsistent with computer, that is, to extend a display image from the right side of PC screen, which is consistent with LED screen’s, we also call it “Background Playing”, as pic below. PC Screen LED Screen For different computers, there are different ways to change the mode.
  • Page 10 www.colorlightinside.com ⚫ Method2: Right-click and select “Screen resolution” to enter the page of “Modify the display appearance”. Note: As for other kinds of graphic cards, if there is no corresponding window, please refer to the user manual of the graphic card.

  • Page 11: Parameter Configuration

    www.colorlightinside.com 5. Parameter Configuration Please make sure the correctness of the hardware connection before setting, use LEDVISION to detect sender and all receiving cards. 5.1 Detect Sender and Receiving Card 1. Run LEDVISION, click [Control] – [Screen Control] to enter the Screen Control window.
  • Page 12 www.colorlightinside.com 2. [Select Sending Device] for [Sender], click [Detect Senders] in [Sender Settings]. Please check the hardware connection or the installation of relevant driver if cannot detect senders. Select network port and click [Detect Receiver Cards] respectively, the software will automatically acquire the receiver card quantity of each network port of the sender.

  • Page 13: Led Screen Setting

    www.colorlightinside.com 5.2 LED Screen Setting Click [LED Screen Settings] to enter the LED Screen Setting interface, and set up “Sending Device”, “Screen Parameters”, “Connection Parameters”.

  • Page 14: Sending Device Setting

    www.colorlightinside.com 5.2.1 Sending Device Setting Configure on the relevant parameters of the sender in Sending Device. Input Signal Information: Display the sender info that auto acquired via the software, which only provided for reference, and did not support personally set up. Sender Resolution: Generally, sender resolution must be consistent with the graphic card’s.
  • Page 15 www.colorlightinside.com need to apply to “Optical Fiber”. Frame Output: Default “Every Frame”, and consult with the technician if you need to apply to “Every Other Frame”. Zero Frame Delay: Default unchecked, and should be enabled by technician under special status. Better Graylevel on Low Brightness: Default unchecked, and should be enable by technician under special status.

  • Page 16: Screen Parameters Setting

    www.colorlightinside.com 5.2.2 Screen Parameters Setting Observe the display screen with single cabinet as an unit, and if all cabinets themselves could display normally {it is normal circumstance even the picture between cabinets is not continuous}, please ignore this step and directly go to the next step.

  • Page 17: Connection Parameters Setting

    www.colorlightinside.com 5.2.3 Connection Parameters Setting Users don’t need to set up the control area of each net port respectively, but to the connection relationship between the receiving cards under the network port loading via each sender, and the software will auto calculate and set up the port control area according to the connection relationship.
  • Page 18 www.colorlightinside.com ② Receiving Card Parameters Setting Select the target sender and the net port from the left side, then select the corresponding cabinets within net port actual control area and set the connection lines in the mapping area. There are two methods to set up: ◆Use mouse to select one by one: In the mapping area, select the first receiving card based on the actual connection of the net port (view from the front), and then set up the actual...
  • Page 19 www.colorlightinside.com (128*128 as an example). Select the connection line you want from the right side, then cover the corresponding area of net port loading in mapping area, finally complete setting. Note: As the cabinets have multiple and different specification (that is the inconsistent capacity of the receiving card), you can select the different one to adjust separately after completing setting.
  • Page 20 www.colorlightinside.com ③ Send & Save to Receiving Card After setting up all the receiving card parameters and connection lines respectively, click [Send] to send the correct parameter to the receiving card, and the screen should display normally at this time. Then click [Save to Receiver] to save parameters to corresponding receiving card after confirming.
