User & Installation
All spares available from
Copyright Notice: All rights reserved. No parts of this manual may be reproduced in any form without
express written permission of Maidaid-Halcyon (A trading name of Buttress Group Ltd)

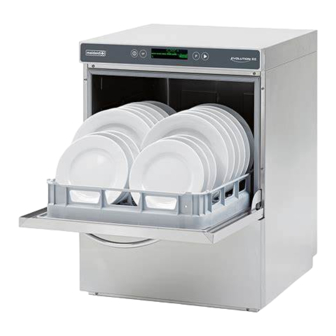

EVOLUTION
512
PUMPED WASTE
Guide
JUNE.2021
The Engine Shed
Top Station Road
Brackley
NN13 7UG
Tel: 0845 1308060
Fax: 01280 845345
Web: www.caterparts.com
REF:918775
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maidaid Halcyon EVOLUTION 512
Summary of Contents for Maidaid Halcyon EVOLUTION 512
- Page 1 EVOLUTION PUMPED WASTE User & Installation Guide JUNE.2021 REF:918775 All spares available from The Engine Shed Top Station Road Brackley NN13 7UG Tel: 0845 1308060 Fax: 01280 845345 Web: www.caterparts.com Copyright Notice: All rights reserved. No parts of this manual may be reproduced in any form without express written permission of Maidaid-Halcyon (A trading name of Buttress Group Ltd)
-
Page 4: Table Of Contents
INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 RISKS AND IMPORTANT WARNINGS ..............2 ..................3 ORMAL OPERATING CONDITIONS CHAP 2 PREFACE ........................4 CHAP 3 INSTALLATION ......................4 ........................4 NPACKING ........................4 OSITIONING ....................5 LECTRICAL CONNECTION .................... -
Page 5: Chap 1 Risks And Important Warnings
INSTRUCTION MANUAL FOR DISHWASHERS Read the instruction manual carefully before starting the machine. The warnings contained in the manual provide important information on safety and installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty. -
Page 6: Normal Operating Conditions
INSTRUCTION MANUAL FOR DISHWASHERS NEVER overturn the machine after it has been installed. If you notice any malfunction or fluid leak, immediately disconnect the power supply and shut off the water supply. Do not install the dishwasher in the vicinity of heat sources over 50°C. ... -
Page 7: Chap 2 Preface
INSTRUCTION MANUAL FOR DISHWASHERS Chap 2 PREFACE Warnings: Keep all documentation in the vicinity of the appliance; make it available to the technicians and operators charged with operating it and keep it in good condition in a safe place, along with extra copies for frequent reference The operator must read, understand and familiarise himself with the contents of this manual before working on or with the appliance. -
Page 8: Electrical Connection
INSTRUCTION MANUAL FOR DISHWASHERS 3.3 Electrical connection The power supply must be fitted with a omnipolar circuit breaker (master power switch) to break all contacts including neutral, with a contact gap of at least 3 mm and thermal cutout or fuses, which must be set or rated to the power indicated on the machine's nameplate. -
Page 9: Water Circuit Hookup
INSTRUCTION MANUAL FOR DISHWASHERS 3.4 Water circuit hookup The appliance must be connected to its water supply with a flexible hose. A shut off valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance. ... -
Page 10: Chap 4 Using The Machine
INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Graphic Interface Referring to Fig.1: ON/OFF BUTTON 6 MACHINE STATUS INDICATORS AREA SPECIAL PROGRAMME SELECTION BUTTON 7 CYCLE INDICATORS AREA PROGRAMME SELECTION BUTTON 8 TEXT DISPLAY START BUTTON 9 TIME BAR STANDBY LED Colour codes and operating status Referring to Fig.2:... -
Page 11: Standby
INSTRUCTION MANUAL FOR DISHWASHERS Washing stages During machine operation, the display in area (6) will indicate the various stages of the washing cycle: Filling Washing Heating Rinsing Operating level reached Operating temperature reached Draining Function symbols Appears when boiler temperature Appears when the tub temperature is shown on the display is shown on the display... - Page 12 INSTRUCTION MANUAL FOR DISHWASHERS Using the SPECIAL PROGRAMME SELECTION button (2) you can choose between the following cycles: Reduces energy consumption by washing at lower temperatures and with reduced water consumption than normal wash programmes; a good washing result is achieved by a prolonged mechanical washing action.
-
Page 13: Filling The Rack
INSTRUCTION MANUAL FOR DISHWASHERS Filling the rack Referring to Fig.4 , to ensure the correct operation of the dishwasher follow the rules described below: Use a suitable rack, fill without overloading and without overlapping the dishes. Always wipe the dishes before placing in the dishwasher; do not put dishes with dry or solid residues in the washer. -
Page 14: Removing The Integral Filter
INSTRUCTION MANUAL FOR DISHWASHERS 4.9 Removing the integral filter Move the washing and rinsing arms at right angles to the edge of the door Lift each semi-filter by the relative handle ( Fig.7 ). 4.10 Emptying the dishwasher 4.10.1 Appliances with no drain pump ... -
Page 15: Chap 5 Maintenance
INSTRUCTION MANUAL FOR DISHWASHERS Chap 5 MAINTENANCE 5.1 General rules Before doing any maintenance, completely drain out all water, shut off the power supply and close the water supply cock. Do not use water under pressure - it can damage the electrical equipment. Only wash the body panelling when it is cold, using only product specifically designed for steel. -
Page 16: Chap 6 Self Diagnostics
INSTRUCTION MANUAL FOR DISHWASHERS Chap 6 SELF DIAGNOSTICS The machine is equipped with a self-diagnosis system that registers and warns of a number of malfunctions. Fault Description and possible remedies No rinsing. The rinsing cycle was not completed correctly. Make sure that the rinsing nozzles are clean. -
Page 17: Chap 7 Settings
INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 SETTINGS The following settings should only be configured by a qualified technician. The parameters listed below can be set during installation of afterwards, accessing the settings menu as follows: Machine in standby with door open. ... -
Page 18: Hardness Settings For The Incorporated Water Softener
INSTRUCTION MANUAL FOR DISHWASHERS 7.1 Hardness settings for the incorporated water softener The conversion table gives the correspondence between German degrees and the French degrees used for the machine settings. Measured hardness °fr °dGH 0 20 41 45 0 ... - Page 19 INSTRUCTION MANUAL FOR DISHWASHERS Page 16 of 16...
