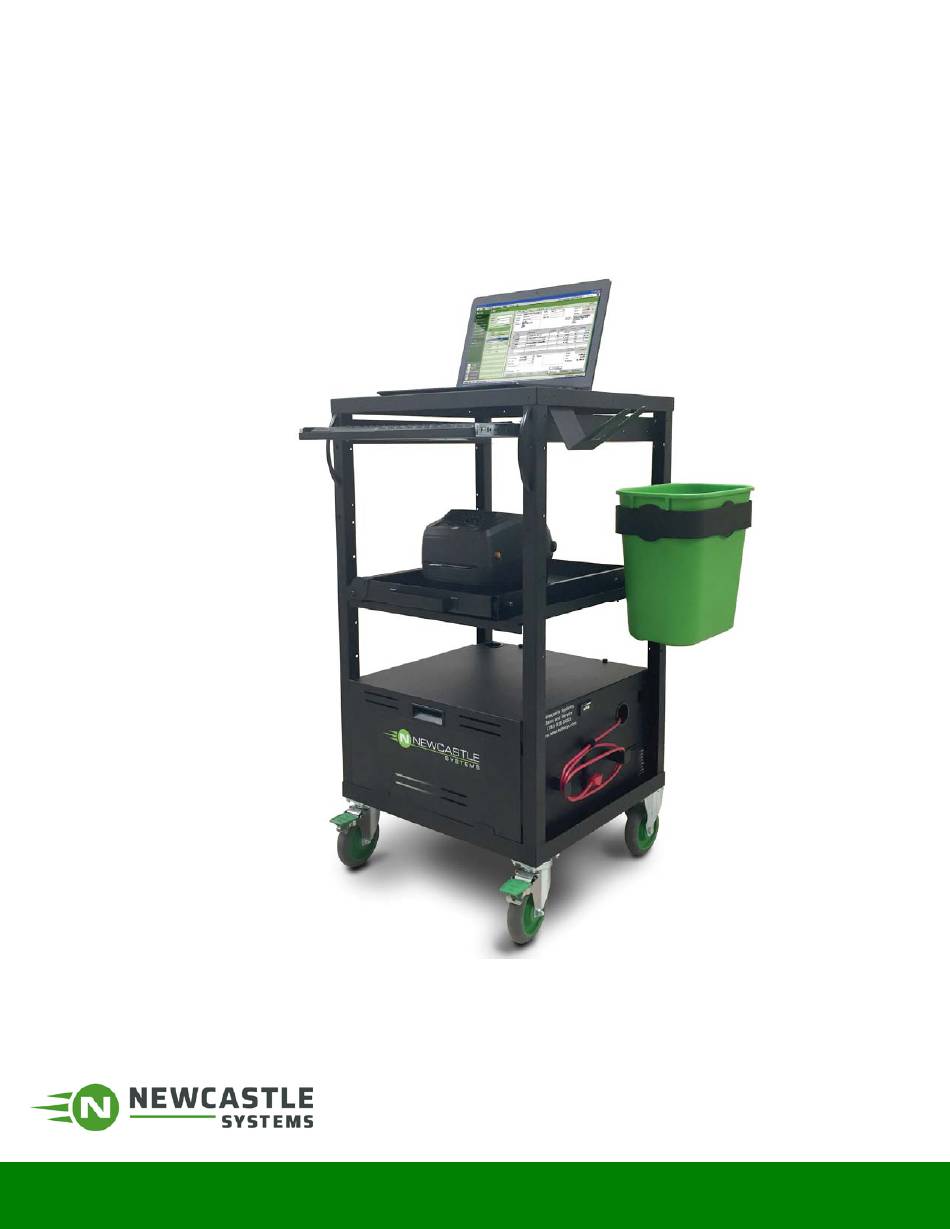

- Page 1 EcoCart Series Assembly Manual 34 South Hunt Rd. Amesbury, MA / USA ● ● 781.935.3450 ● www.newcastlesys.com...
- Page 2 EcoCart Assembly Manual Standard Contents: Installation for EcoCart Series - Cart (assembled) - Battery & hardware - Wastebasket and holder Remove power cabinet cover. Optional Accessories: Will either be installed on cart or shipped separately in box with cart. *Some accessories may be...
- Page 3 EcoCart Assembly Manual Unclip nylon battery strap & open to allow placement of battery. Red inverter wire Red charger wire Place lock washer, then flat washer, then red wires on bolt as shown for red positive (+) battery connection. Carefully lift battery by its handles and place in cabinet.
- Page 4 EcoCart Assembly Manual Pull red rubber boot over terminal. Tighten with any 10mm wrench. For black negative (-) battery connection, place lock washer, then flat washer, then wires on battery bolt as shown. Black inverter wire Black charger wire Black meter wire Insert bolt through black negative (-) battery Make sure all fittings are tight and...
- Page 5 EcoCart Assembly Manual • Turn on (I) the red inverter switch on blue inverter inside battery box. • Turn on (I) white circuit breaker switch on right exterior of cart. Turn power strip on. Light should turn red. Be sure to charge your cart after every use.
- Page 6 EcoCart Assembly Manual Operating Tips: 1. Charge your battery before using it to ensure it is fully charged. Turn off the unit, and simply plug the charger cord (located on side of unit) into a standard wall outlet. 2. Monitor the battery status meter on the cart. 3.
