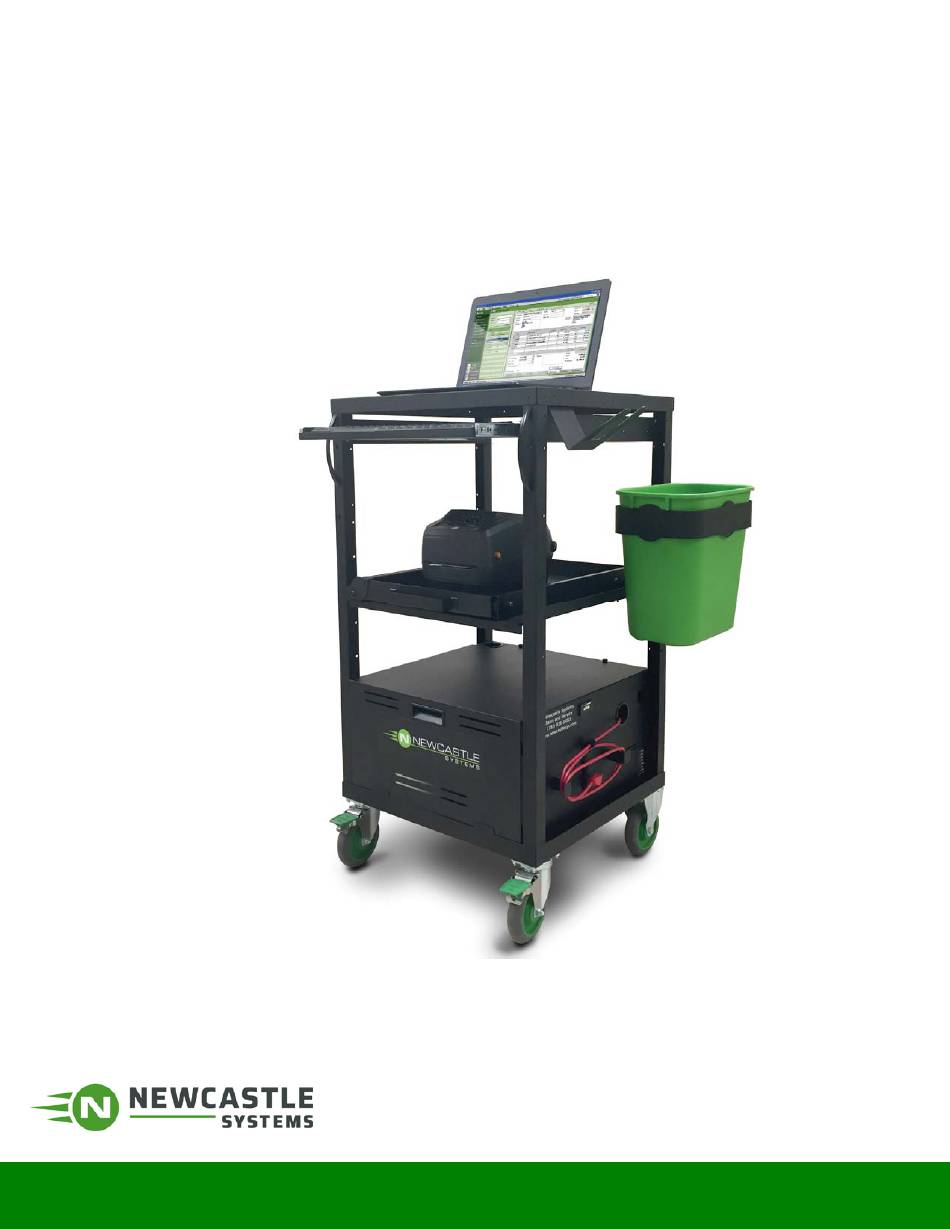

- Page 1 EcoCart Series Assembly Manual 34 South Hunt Rd. Amesbury, MA / USA ● ● 781.935.3450 ● www.newcastlesys.com...
- Page 2 EcoCart Assembly Instructions 8/1/2016 Installation for EcoCart Series Standard Contents: - Cart (assembled) - Battery & hardware - Trashcan holder & green can Remove power cabinet cover Optional Accessories: Will either be installed on cart or shipped separately in box with cart.
- Page 3 EcoCart Assembly Instructions 8/1/2016 Unclip nylon battery straps & open to allow placement of battery Red inverter cable red/blue charger wire green meter wire red meter wire flat washer Place washer & wires on battery bolt (in order shown) for positive (+) battery connection ...
- Page 4 EcoCart Assembly Instructions 8/1/2016 Place flat washer, lock washer, then nut onto bolt and hand tighten NOTE: Sparking is normal for the first connection. Insert bolt through (-) battery terminal Securely tighten nut with 7/16 wrenches Retrieve nut, lock washer and flat washer (as shown above) For negative (-) battery connection, place...
- Page 5 EcoCart Assembly Instructions 8/1/2016 Turn unit on Turn powerstrip on. Light should turn red. Make sure all fittings are tight and battery is strapped down in the cabinet. Test unit before placing battery cover on. (See steps 17 & 18) Place battery cover on and securely tighten thumb screws.
- Page 6 EcoCart Assembly Instructions 8/1/2016 Operating Tips: 1. Charge your battery before using it to ensure it is fully charged. Simply plug the charger cord (located on side of unit) into a standard wall unit. 2. Monitor the battery status meter on the cart. 3.
