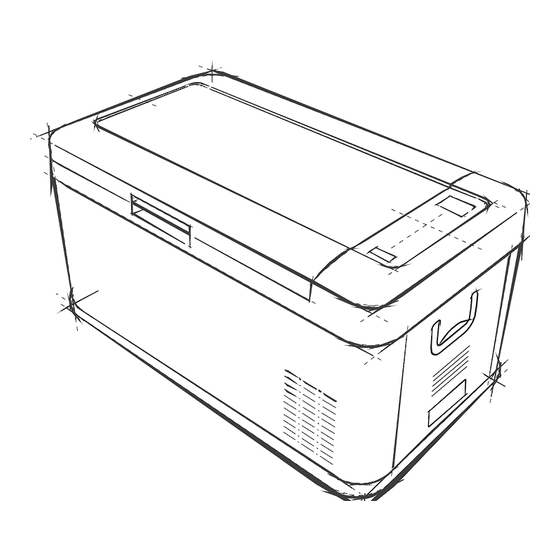

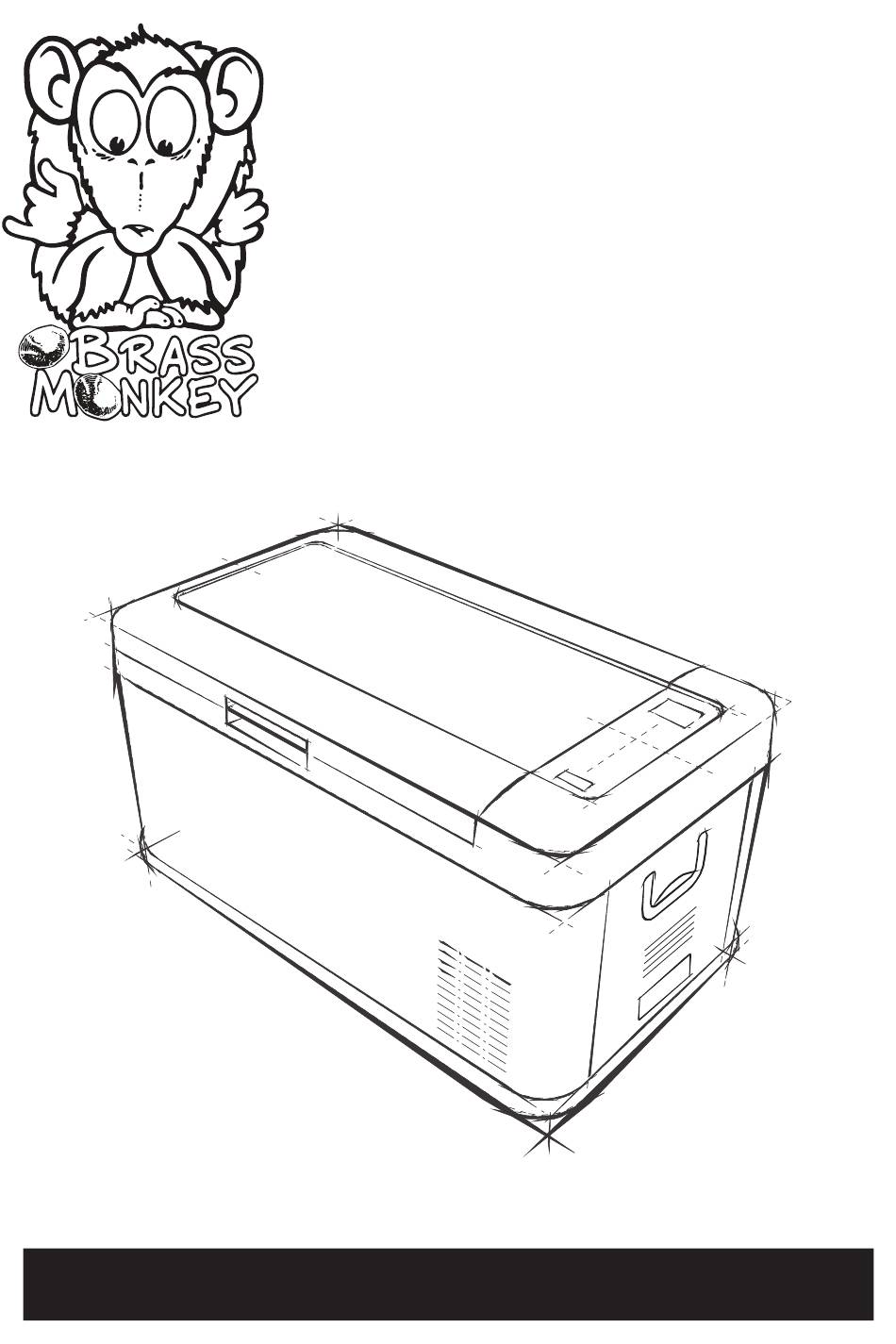

- Page 1 GH2006 25L PORTABLE FRIDGE/FREEZER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ................ 3 Before First Use ....................4 Features ........................ 5 Box Contents ......................5 Product Diagram ....................5 Operation ......................6 Using in Vehicle ....................7 Troubleshooting ....................8 Cleaning, Care, Storage & Maintenance ............9 Smart Control - Fridge App Instructions ............10 Specifications ....................11 Warranty Information ..................12... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Warnings • Do not operate the appliance if it is visibly damaged. • Do not block the gaps of the fridge with things like pins or wires, etc. •... -
Page 4: Before First Use
Notice • Disconnect the power supply before each cleaning and maintenance and after every use. • Do not use sharp tools to defrost; Do not damage the refrigerant circuit. • Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that children may not easily climb inside. -
Page 5: Features
FEATURES • DC power connection • Power by AC using the AC to DC power adapter • High-efficiency DC compressor and conversion module • Dual mode operation (Max & Economy) • Digital temperature display with adjustable control • 3 Year Warranty •... -
Page 6: Operation
OPERATION Power on and off: press to switch on, long press for three seconds to switch OFF. Temperature adjustment: touch +or- button to adjust the temperature, the adjustment range is minus 20 degrees Celsius to 20 degrees Celsius; After stopping the adjustment for 3 seconds, the display stops flashing, exits the temperature setting, and maintains the currently set temperature, and then displays the real-time temperature in the box. -
Page 7: Using In Vehicle
USING IN VEHICLE The product has a three-level battery protection function, which not only guarantees the normal operation of the product, but also protect the battery of the vehicle. When in the power-on state, long press SET button for 3 seconds and the display screen flashes H select low voltage production L, M, and H by clicking SET button. -
Page 8: Troubleshooting
TROUBLESHOOTING ISSUE SUGGESTED REMEDY Refrigerator does not work • Check if the switch is on. • Check if the plug and socket are connected well. • Check if the fuse has been burnt. • Check if the power supply is malfunctioned. •... -
Page 9: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE WARNING: Never use hard or sharp tools to remove ice or to loosen objects frozen in place. Cleaning • Unplug the device first to avoid electric shock. • Use wet cloth to clean the device and dry it. •... -
Page 10: Smart Control - Fridge App Instructions
SMART CONTROL - FRIDGE APP INSTRUCTIONS (Battery is not supported on this model) -
Page 11: Specifications
SPECIFICATIONS Input Voltage DC 12/24V Power Consumption Capacity Temperature Range -20 to +20ºC (ambient temp. 25ºC) Refrigerant R134A Insulation 100% CFC & HFC free PU... -
Page 12: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 3 years. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
