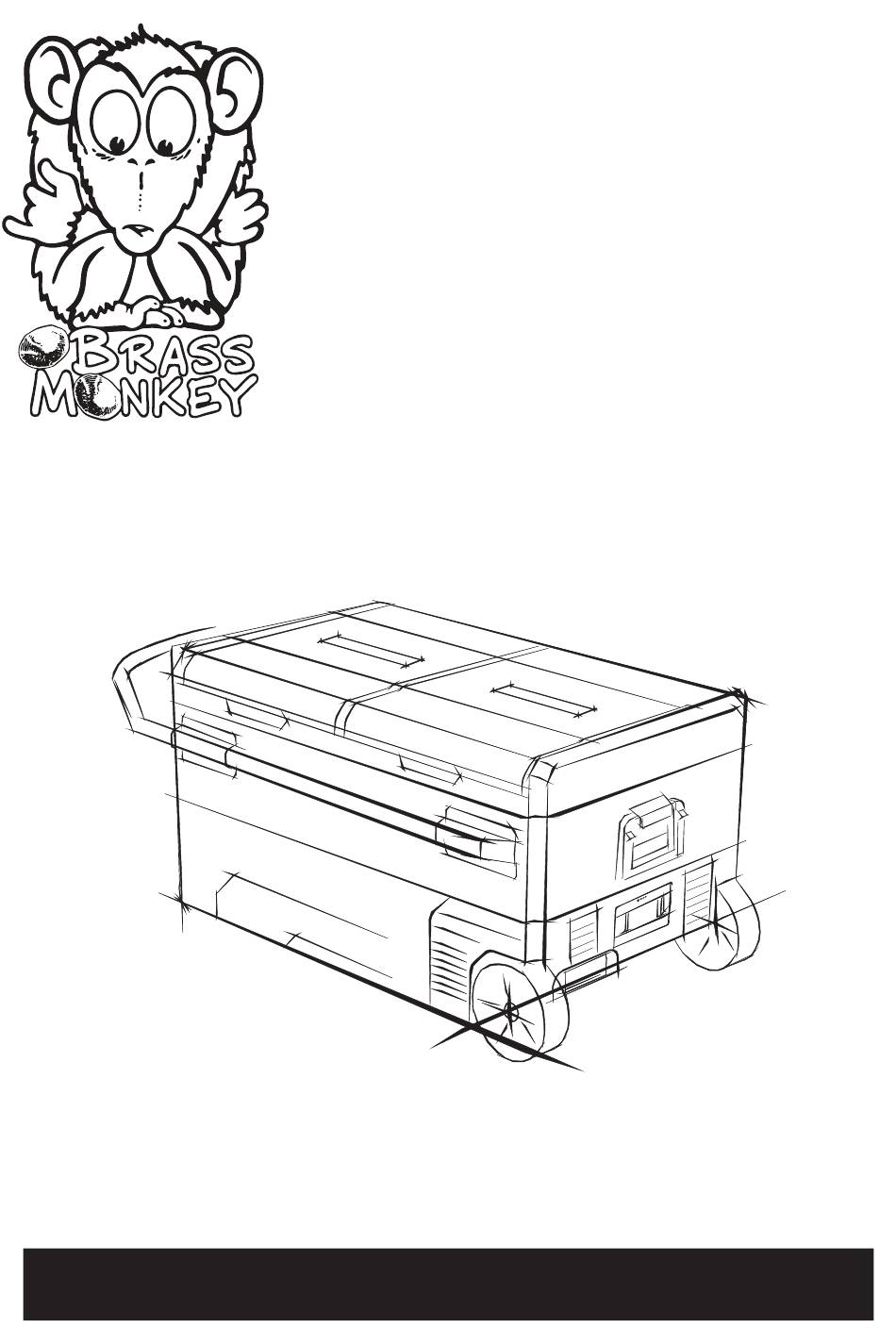

- Page 1 GH2038 95L PORTABLE DUAL ZONE FRIDGE/FREEZER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ................ 3 Before First Use ....................4 Features ........................ 5 Box Contents ......................5 Product Diagram ....................5 Product Dimensions ................... 6 Operation ......................6 Power Supply and Charging ................7 Battery Usage ....................10 Food Storage ......................10 Troubleshooting ....................11 Specifications ....................12 Cleaning, Care, Storage &... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Warnings • Do not operate the appliance if it is visibly damaged. • Do not block the gaps of the fridge with things like pins or wires, etc. •... -
Page 4: Before First Use
Notice • Disconnect the power supply before each cleaning and maintenance and after every use. • Do not use sharp tools to defrost; Do not damage the refrigerant circuit. • Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that children may not easily climb inside. -
Page 5: Features
FEATURES • Dual Zone - Fridge / Freezer operation. • Optional removable 15.6AH or 7.8AH battery • Solar charging interface • Detachable lids - pivot point reversible • With wheels and telescopic handle • DC power connections • Powered by AC using the AC to DC power adapter •... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS OPERATION How to Turn on the Fridge 1. Connect to power 2. Press to switch ON, long press for three seconds to switch OFF. 3. The internal temperature will display and the compressor will start 4. SET: Press button to enter different modes, ECO (Energy Saving Mode), and MAX (Fast Cooling Mode). -
Page 7: Power Supply And Charging
POWER SUPPLY AND CHARGING • Power Supply: The refrigerator can be powered by 12V / 24V DC power • 100-240V AC (adapter included) • Optional removable Lithium battery if there is no connection of DC/ AC power. DC/ AC power will run the refrigerator, and charge the optional removable battery simultaneously. - Page 8 WARNING: Do not open or disassemble the battery. Only use approved chargers with the fridge battery, incorrect chargers may result in fire, damage, a shortened battery life. Do not disassemble, impact, squeeze, crush, or throw or misuse the fridge battery, do not dispose of in fire, any of which may result in short circuit and fire or explosion.
- Page 9 AC Charging Management If the fridge has not been used for a long time, the battery may be discharged, and the fridge will not power on. Please use the AC adapter to charge the fridge battery and run the fridge. After the fridge battery has charged up to 30%, you can switch to other methods for charging.
-
Page 10: Battery Usage
BATTERY USAGE Optional Removable Battery: The lithium battery is back up power to keep the refrigerator working for short periods while off grid. Notice: When not using the battery power or fridge for a long time, please turn off the battery output. -
Page 11: Troubleshooting
TROUBLESHOOTING ISSUE SUGGESTED REMEDY Refrigerator does not work • Check if the switch is on. • Check if the plug and socket are connected well. • Check if the fuse has been burnt. • Check if the power supply is malfunctioned. •... -
Page 12: Specifications
SPECIFICATIONS Capacity Temperature Range -20°C-20°C (with an ambient temperature at 25ºC) Voltage Input 12-24VDC Refrigerant R134a Average Power 0.3kW.h/24hr (Varies with ambient temperature) Consumption: Rated Current for AC 1.5A - 0.7A (Adaptor): Rated Current for DC: 6.0A(12V)/3.0A(24V) Power Supply 12/24VDC (Car Charger) 240VAC to 12VDC (Mains Power Adaptor) Net Weight 26.5 kg... -
Page 13: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE WARNING: Never use hard or sharp tools to remove ice or to loosen objects frozen in place. Cleaning • Unplug the device first to avoid electric shock. • Use wet cloth to clean the device and dry it. •... -
Page 14: Smart Control - Fridge App Instructions
SMART CONTROL - FRIDGE APP INSTRUCTIONS (Battery is not supported on this model) -
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 3 years. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
