NENKO 44502010 Quick Start Manual

1. Productname

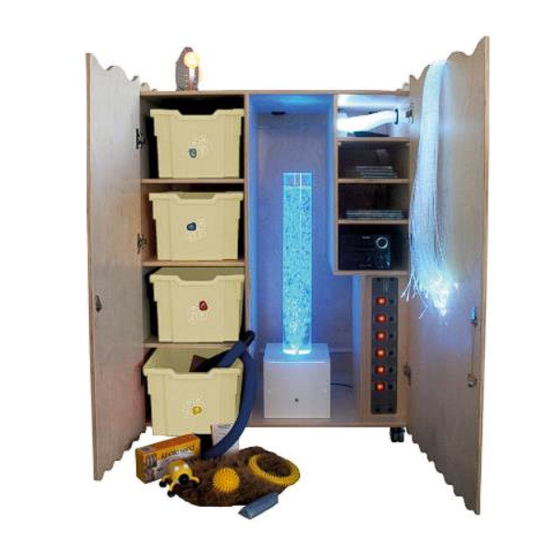

Sensory equipment wagon
2. Product code
44502010
3. Colour
As pictured
4. Description
This Sensory equipment wagon cart is delivered in a wooden transport box for safety and service
reasons.
= We recommend keeping this supplied wooden transport box for any service purposes =
1. Open the transport box with a Phillips screwdriver.
2. Unblock the brakes of the front wheels at the bottom of the Sensory equipment wagon and
drive the cart out of the transport box.
3. Hang the fiber optic strands next to the cart.
4. Then you can see the key, with which the front and back of the Sensory equipment wagon can
be opened. The key of the Sensory equipment wagon can be found in the handle of the low
door, which is fastened with a tie-wrap.
5. Open the low cabinet door at the front of the Sensory equipment wagon with the supplied key.
6. Take the projector out of the cabinet and place it on the cart.
7. Connect the projector on the top of the cart to the thicker power cable.
8. Take the 3 meter long power cable out of the cabinet and place one side of this power cable in
the socket on the outside of the Sensory equipment wagon (right side seen from the front) and
place the other side of the power cable in the socket in the room where the Sensory
equipment wagon will be used.
9. Then take the Adapter (connection for the bubble unit) out of the cabinet and place it in the
other connection which can be found on the outside of the Sensory equipment wagon under
the fiber optics strands.
10. Fill the bubble unit for 80% with water, so that there is also room left for the bubbles.
11. Plug the other side of the small power cable, which has just been placed on the outside of the
Sensory equipment wagon, into the bubble unit, so that it is also supplied with power.
12. Then open the cabinet at the front of the Sensory equipment wagon again; In this low cabinet
there is a control cabinet with 6 red buttons. These buttons are the on/off buttons of the
electronic products and parts that are used in and on the Sensory equipment wagon. In the
included (and below) diagram, it is clearly indicated which button is for which device (from left
to right).
