19" LCD Color Monitor

4. Input/Output Specification

4.1 Input Signal Connector

Pin
1
2
3
4
5
6
7
8
Signal
Red Video
Green Video
Blue Video
Ground
Detect Cable
Red GND
Green GND
Blue GND

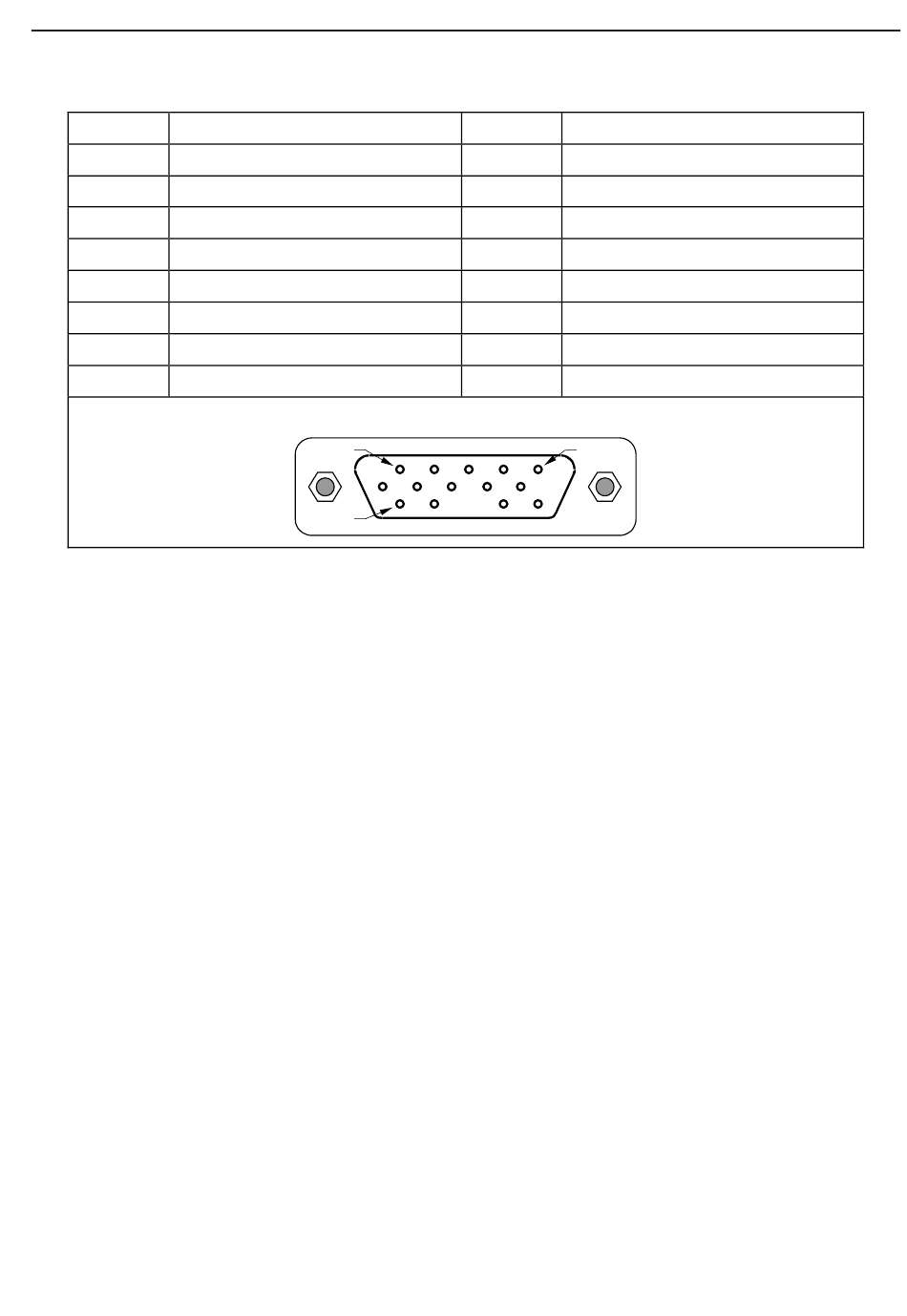

VGA connector layout
PIN 1
PIN 11
Pin
9
10
11
12
13
14
15
PIN 5
8
HP W19EV
Signal
+5 V (from PC)
Ground
Ground
DDC-serial Data
Horizontal Sync
Vertical Sync
DDC-serial Clock
