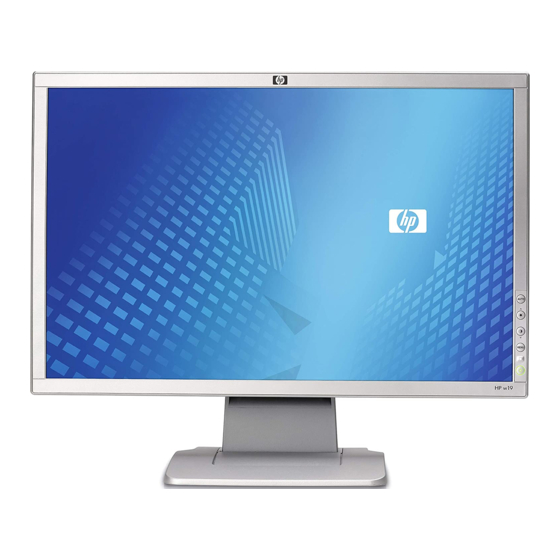

HP w19 LCD Monitor User's Guide
Preface
Safety and Maintenance Guidelines
Setup
Using the Monitor
Drivers and Auto-Adjustment
Technical Support FAQ

Specifications

LCD Monitor Quality and Pixel Policy
Agency Regulatory Notices
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
Copyright © 2006 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license.
HP supports lawful use of technology and does not endorse or encourage the use of its products for purposes other than those permitted by copyright
law.
The information in this document is subject to change without notice.
Part number: 431053-002

Advertisement

Table of Contents

   Related Manuals for HP w19

   Summary of Contents for HP w19

  • Page 1: Specifications

    Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. HP supports lawful use of technology and does not endorse or encourage the use of its products for purposes other than those permitted by copyright law.
  • Page 2: Preface: Hp W19 Lcd Monitor

    About This Guide • Notational Conventions About This Guide This guide is intended for anyone who uses the HP w19 LCD Monitor. It describes the monitor's features, setup, and operation. The sections are as follows: • Safety and Maintenance Guidelines •...
  • Page 3: Safety And Maintenance Guidelines: Hp W19 Lcd Monitor

    Back to Contents Page Safety and Maintenance Guidelines: HP w19 LCD Monitor Important Safety Information • Safety Precautions • Maintenance Guidelines • Cleaning the Monitor Important Safety Information The power cord is designed for use with your monitor. To use a different cord, use only a power source and connection compatible with this monitor.
  • Page 4: Cleaning The Monitor

    • Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating properly or has been dropped or damaged, contact your HP authorized dealer, reseller, or service provider. • Adjust only those controls that are described in the operating instructions.
  • Page 5: Setup: Hp W19 Lcd Monitor

    Back to Contents Page Setup: HP w19 LCD Monitor • Base • Attaching the Cables • Attaching Wall Mounting Arm Back to Contents Page Base: HP w19 LCD Monitor Base • Attaching the Base • Removing the Base Base •...
  • Page 6: Attaching The Base

    Attaching the Base 1 Turn off the monitor and unplug it from the electrical outlet. 2 Place the base on a flat work surface. 3 Align the tabs on the base with the corresponding slots on the bottom of the monitor. NOTE: •...
  • Page 7: Removing The Base

    Removing the Base 1 Place the monitor upside-down on a stable, flat work surface. 2 Push release latch on the bottom of the rear cabinet, and push the base toward the back of the monitor at the same time and lift up to remove the base. NOTE: •...
  • Page 8: Attaching The Cables: Hp W19 Lcd Monitor

    Back to Contents Page Attaching the Cables: HP w19 LCD Monitor Cable Connections On Back of Monitor and Computer Turn off your computer before performing the procedure below. 1 Connect the power adapter DC cable to the DC-In port on the back of the monitor.
  • Page 9: Attaching Wall Mounting Arm: Hp W19 Lcd Monitor

    Back to Contents Page Attaching Wall Mounting Arm: HP w19 LCD Monitor Preparing to Install An Optional Wall Mounting Arm (Not supplied) • Installing an Optional Wall Mounting Arm (Not supplied) Preparing to Install An Optional Wall Mounting Arm (Not supplied) This monitor can be attached to a wall mounting arm you purchase separately.
  • Page 10: Installing An Optional Wall Mounting Arm (not Supplied)

    Installing an Optional Wall Mounting Arm (Not supplied) Follow these steps to finish installing a wall mounting arm (not included): 1 Set the monitor screen down on a flat, soft, protected surface. 2 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
  • Page 11: Using The Monitor: Hp W19 Lcd Monitor

    • Controls and Indicators Back to Contents Page Setting the Optimal Resolution: HP w19 LCD Monitor The recommended resolution for this monitor is 1440 by 900. To setup the monitor to this resolution, follow the steps below. 1 Click START.
  • Page 12: Controls: Hp W19 Lcd Monitor

    Back to Contents Page Controls: HP w19 LCD Monitor Operating Instructions • External Controls • OSD Lock Function • How to Adjust a Setting • Adjusting the Picture • LED Indicators Operating Instructions Press the power button (E) to turn the monitor on or off. The other control knobs are located at front panel of the monitor (See Figure).
  • Page 13: Adjusting The Picture

    Adjusting the Picture Main Menu Item Main Menu Sub Menu Item Sub Menu Description Icon Icon Luminance Contrast Contrast from digital-register Brightness Backlight adjustment Image Setup Focus Adjust picture phase to reduce horizontal-line noise Clock Adjust picture clock to reduce vertical-line noise Image Position H.
  • Page 14: Downloading From The World Wide Web

    Installing Drivers and Using the Auto-Adjustment Feature: HP w19 LCD Monitor Downloading from the World Wide Web To download the latest version of INF and ICM files from the HP Support Web site: 1 Refer to: http://www.hp.com/support 2 Select your country/region.
  • Page 15: Technical Support Faq: Hp W19 Lcd Monitor

    Also check the monitor's video cable and make sure none of the pins are bent. • Make sure the HP monitor drivers are installed (HP monitor drivers are available at: http://www.hp.com/support). • Picture is fuzzy and has ghosting Adjust the contrast and brightness controls.
  • Page 16: Specifications: Hp W19 Lcd Monitor

    Power Cord Set Requirements • Pin Assignments • Plug and Play DDC2B Feature All specifications represent the typical specifications provided by HP’s component manufacturers; actual performance may vary either higher or lower. General Model number HP w19 LCD Panel (19")
  • Page 17: Preset Display Modes

    Preset Display Modes Standard Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Dos-mode 720 x 400 31.47 70.0 640 x 480 31.47 60.0 640 x 480 37.50 75.0 SVGA 800 x 600 37.879 60.0 SVGA 800 x 600 46.875 75.0 1024 x 768 48.363 60.0 1024 x 768...
  • Page 18: Power Cord Set Requirements

    4.94 ft. (1.5 m) and 12 ft. (3.6 m). If you have questions about the type of power cord to use, contact your HP-authorized service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it.
  • Page 19: Plug And Play Ddc2b Feature

    Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD Monitor. These imperfections are caused by one or more defective pixels or subpixels.
  • Page 20: Agency Regulatory Notices: Hp W19 Lcd Monitor

    Back to Contents Page Agency Regulatory Notices: HP w19 LCD Monitor Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 21: Canadian Notice

    Canadian Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. European Union Regulatory Notice This product complies with the following EU directives: •...
  • Page 22: Korean Notice

    HP offers product end-of-life return programs for HP and other manufacturers’ hardware in several geographic areas. The terms and availability of these programs vary by geography because of differences in regulatory requirements and local customer demand. For information on the HP recycling program, refer to the HP Web site at: http://www.hp.com/recycle EPA Energy Star Compliance Products marked with the ENERGY STAR®...
