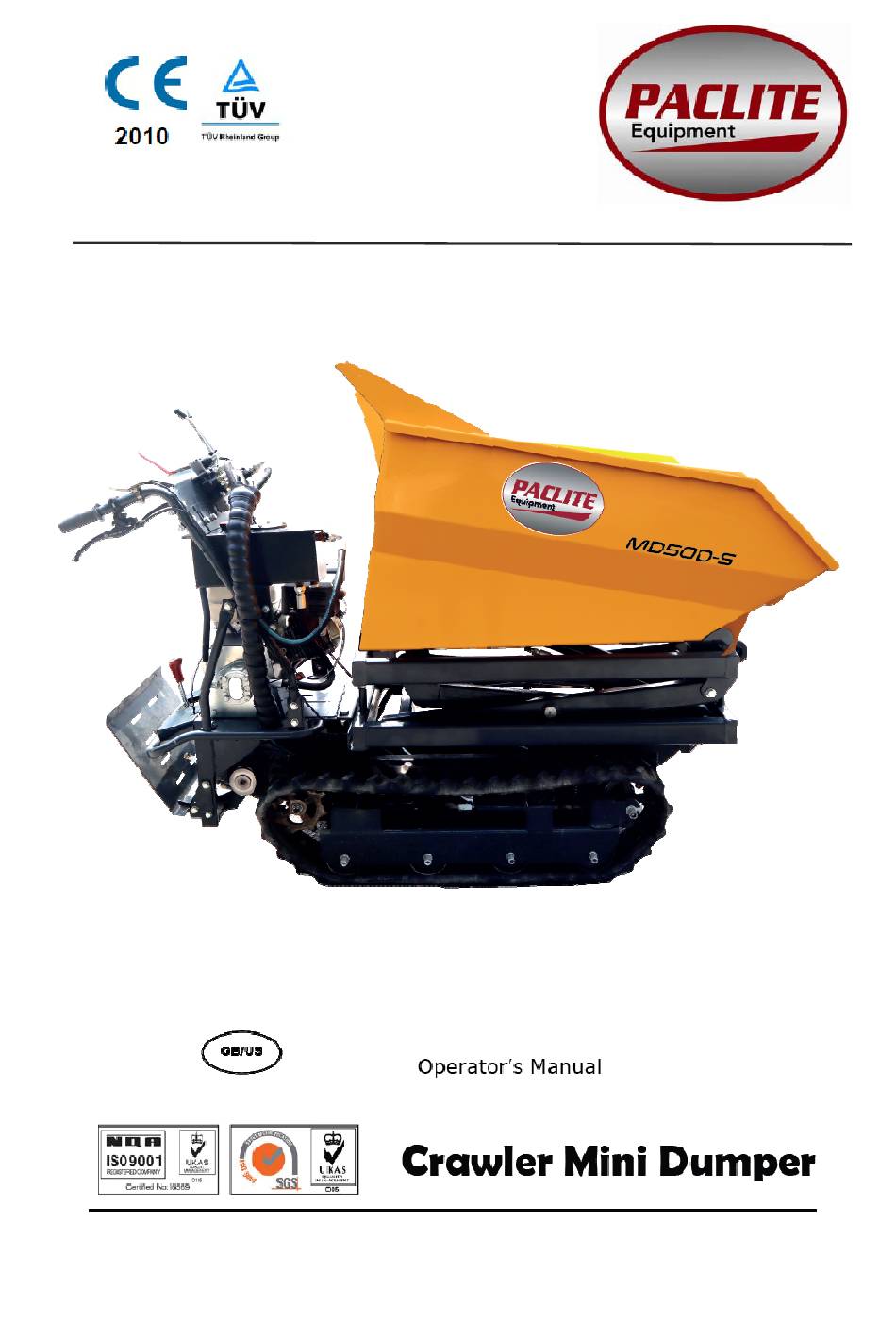

  • Page 1 MD 500-s...
  • Page 2 EC DECLARAŢIE DE CONFORMITATE We Uni-corp Europe, PACLITE EQUIPMENT 12 AVENUE DES COQUELICOTS 94380 BONNEUIL SUR MARNE , France, France, hereby certify that if the product described within this certificate is bought from an authorised Paclite dealer within the EEA, it conforms to the following directives: Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC (as amended by 92/31/EEC &...

  • Page 3: Table Of Contents

    This manual has been written to help you operate the Paclite MD 500s safely. It is intended primarily for dealers and operators of Paclite equipment. It is recommended that you keep this manual or a copy of it with the machine so that it is readily available for reference.

  • Page 4: Safety Information

    Safety Information For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. Improper maintenance can be hazardous.
  • Page 5 Fuel Safety Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel. WARNING Before re-fuelling, switch off the engine and allow it to cool. •...
  • Page 6 To reduce the risk of tipping over, pay special attention when encountering an obstacle or a • slope, or when braking on a slope or during a turn. Never attempt to drive over a large obstacle such as rock or fallen tree. •...

  • Page 7: Machine Description

    Machine Description...
  • Page 8 Intended Use This machine is intended for base preparation, driveways, foundations, curbs, and footings. It can also be used for repair work on streets, highways and/or pavements/sidewalks.

  • Page 9: Start And Stop Procedure

    Start and Stop Procedure Improper operation can be hazardous. Read and understand this section before you start the machine. CAUTION 1. Move the fuel valve lever to the ON position. 2. To start a cold engine, move the choke lever to CLOSED position * to restart a warm engine, leave the choke to OPEN position 3.

  • Page 10: Operation

    The Max rpm as shown above is the number of ignitions per minute. GX270 & VWM 9.0 engine for the MD500s have the final gears at the ration of 8.5 : 1, and the number of ignitions per minute is different from the number of rotations of the engines Power Take-Off Shaft.
  • Page 11 It is on the user’s responsibility to ensure if the throttle level exceeds the recommended • maximum level, he should always wear ear plugs during the operation. Operation (Parking) Always park on a firm, level ground. Never park on a potentially dangerous place. •...

  • Page 12: Service And Maintenance

    Stopping Engine To stop the engine in an emergency, release the clutch control lever, then turn the engine • switch to the OFF position. 1. Move the throttle lever to the SLOW position. 2. Let the engine idle for one or two minutes. 3.
  • Page 13 Inspect general condition of the machine. Check for loose screw, misalignment or binding of • moving parts, cracked or broken parts that may affect its safe operation. Remove all debris and other materials that may have accumulated to the machine. Clean after •...
  • Page 14 3. Measure the track midline vs the horizontal line, the reading must not be more than 10 - 15 4. If the distance is greater, tighten tension tight rod until the correct tightness is restored. Maintenance: Engine Service Maintenance: Machine Service...

  • Page 15: Warranty

    Fluids & Lubricants Lists After Use Care Do not wash engine, control panel, electrical parts or tank caps with air breather with running • water, water may enter inside and cause rust or damage. Clean the machine after use, leaving dirt or foreign objects may cause component damage •...
  • Page 16 The following engine components are covered by warranty : Engine warranty covered by engine manufacturer. The following manufacturer parts are covered by warranty 100% : Engine base - Welding crack / deformation • Engine frame - Welding crack / deformation •...
  • Page 17 Uni-corp Europe S.A.R.L. Paclite Equipment 12 AVENUE DES COQUELICOTS ZAC DES PETITS CARREAUX 94380 BONNEUIL SUR MARNE FRANCE +33 (0) 1 49 81 69 55 +33 (0) 1 48 98 40 88 2023 sales@paclite-equip.com paclite-equip.com...
