Section 1 Circuit Operation Description
Table of Contents
Outline of Aa-R Series System
Acceptance of Input Selector Data
Fl Display
Selection of Input Signal
Volume Control
Tone Control
Long-Time Back-Up by Capacitor
Display Data
Digit Output of
Description of Input Selector
And Tone Control
The Status that will be Established When
Reset Status When Power Is on
How to Make Letters
At600 Terminals Description
Display Selection Blank Period
Frequency Display Segment Data
Block Diagram of Pll IC Tc9125P Interior and Description of the Function of each Terminal
Pll Data for Pll IC (Tc9125P) Control
Frequency Control by Pll
Akai ZERO DRIVE CIRCUIT (AA-R42/R32)
In the Beginning
Principle of Akai Zero Drive Circuit
Dual-Pole DC Servo (Aa-R42/R32/R22)
Section 2 Service Manual
Specifications
Dismantling of Unit
Ill. CONTROLS
Principal Parts Location
Am Step Selector
Conversion
Fm De-Emphasis Selector
Voltage Conversion
Adjustments
Clock Frequency Adjustment
Tuner Adjustment
Board Titles and Identification Numbers
Classification of Various P.C Boards
Service Manual
Model Aa-R32/L
Specifications
Model Aa-R42
Dismantling of Unit
Controls
Model Aa-R32/L
Principal Parts Location
Model Aa-R42
Am Step Selector
Conversion
Fm De-Emphasis Selector
Voltage Conversion
Adjustments
Clock Frequency Adjustment
Model Aa-R32/L, Aa-R42 Tuner Adjustment
Model Aa-R32/L P.C Board Titles .And
Model Aa-R42 P.C Board Titles and
Model Aa-R32/L Composition of Various P.C Boards
Model Aa-R42 Composition of Various P.C Board
Section 4 Parts List
Recommended Spare Parts
Tunerp.C Board Block
Control P.C Board Block
Eq P.C Board Block
Main Amp P.cboard Block
Assembly Block
Final Assembly Block
Recommended Spare Parts
Parts
Tuner Eq P.C Board Block
Control P.C Board Block
Main Amp.p.C Board Block
Power P,C Board Block
Assembly Block
Final Assembly Block
Index
Advertisement
Quick Links
Download this manual
A
·.:.,r
:it•"
i
.
.
'
ALU
t::====~

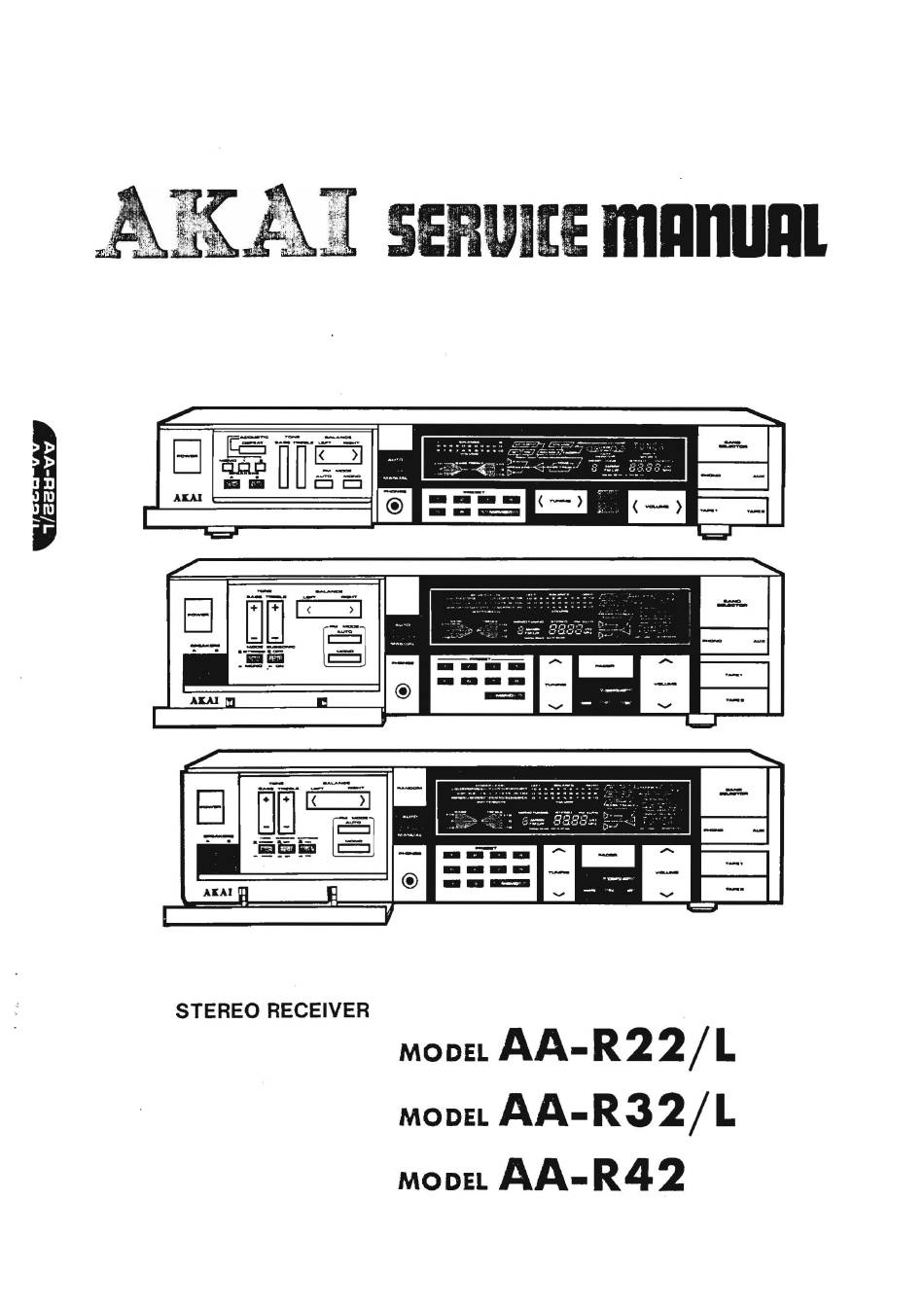

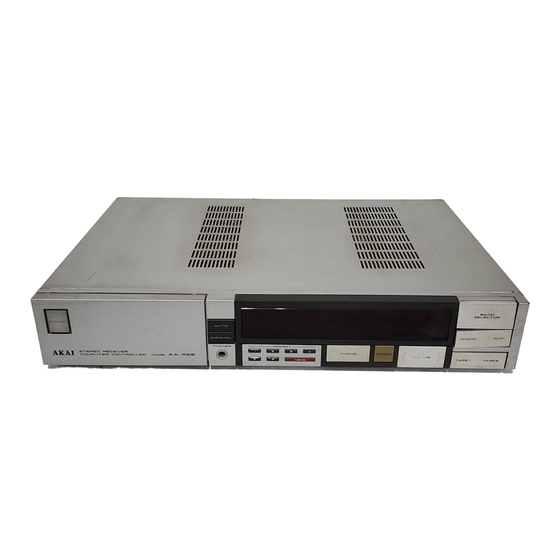

STEREO RECEIVER
SERVICE fflADUAl
.:.:: ::.:.:;·~.~:1~:~.::~
I;:
~~r;~: ~::
2
_-= , ~
-~-~~-~~-
· •
·:~~~-<' : :
: ~~:
&::_,:_i_igs-;
~?~
/_\_·
MODEL
AA-R22/L
MODEL
AA-R32/L
MODEL
AA-R42
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Chapters
Section 1 Circuit Operation Description
5
Section 2 Service Manual
37
Service Manual
51
Section 4 Parts List
77
