18V IMPACT WRENCH
OPERATING MANUAL
CW-L0318

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CW-L0318 and is the answer not in the manual?

Questions and answers

Related Manuals for Nordic CW-L0318

Summary of Contents for Nordic CW-L0318

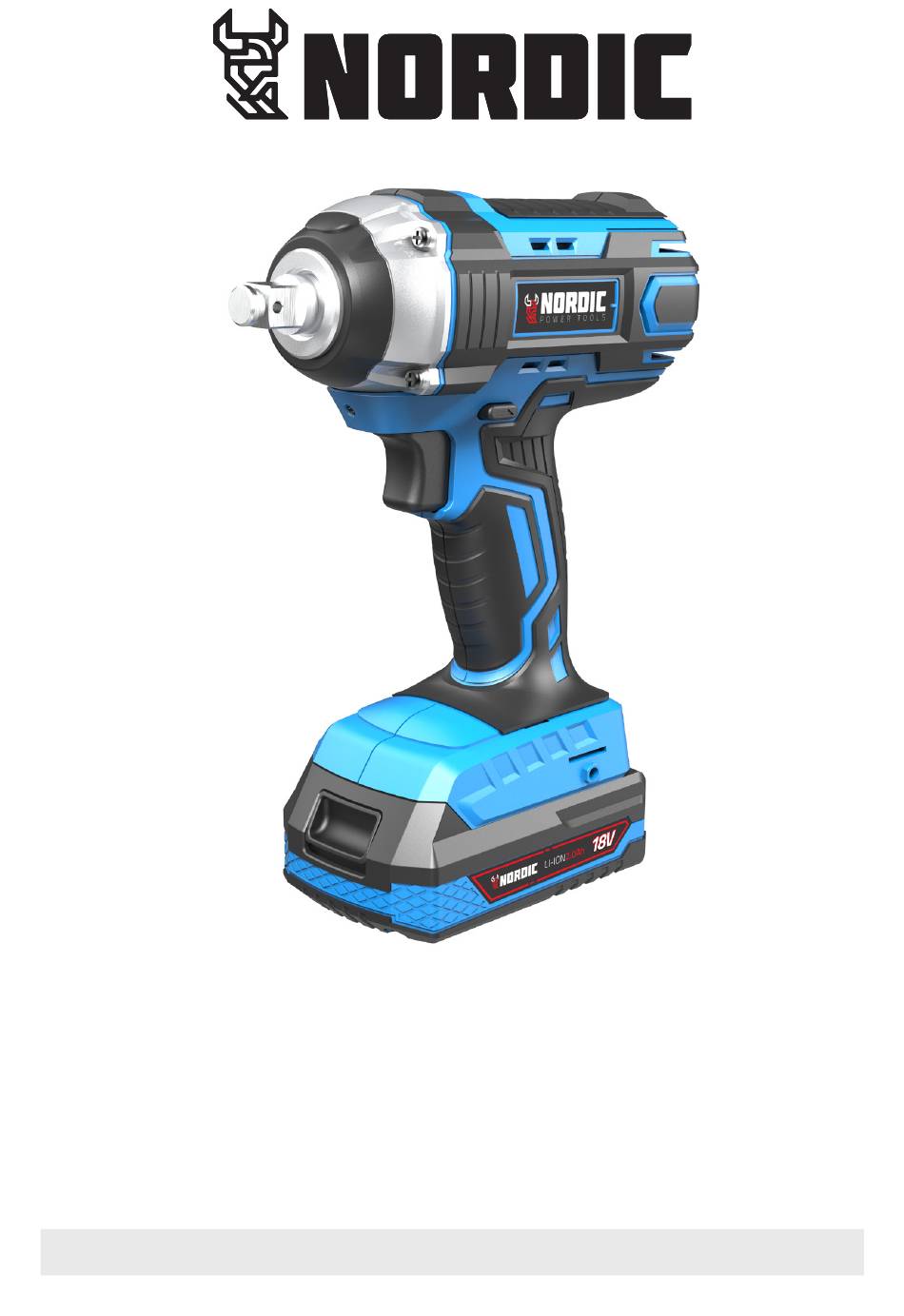

  • Page 1 18V IMPACT WRENCH OPERATING MANUAL CW-L0318...

  • Page 2: Product Specification

    NORDIC PRODUCT SPECIFICATION Voltage: No load speed: 0-2200rpm Impact Frequency: 0-2800tpm Motor: Brushed motor Chuck diameter: 1/2” drive chuck Torque: Max. 160Nm GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury.

  • Page 3: Personal Safety

    NORDIC 2.3 PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

  • Page 4: Additional Safety Instructions For Batteries And Chargers

    NORDIC 2.5 SERVICE Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards. Special safety instructions for wrenches • Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring.
  • Page 5 NORDIC 1. Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar. 1. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. 1. Consult a physician.  Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.
  • Page 6 NORDIC SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves Wear respiratory protection In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...

  • Page 7: Before You Start

    NORDIC 6. PRODUCT 1. 1/2” chuck 2. Forward/reverse knob 3. Handle 4. Battery pack release button 5. Battery pack (not included) 6. On/off switch trigger 7. LED work light 8. Belt clip 7. BEFORE YOU START 7.1 CHUCK Your tool has a 1/2” chuck 7.2 FORWARD/REVERSE SELECTOR(RIGHT/LEFT ROTATION SELECTOR)
  • Page 8 NORDIC After normal use, about 1 hour of charging time is required for the battery to be fully charged. The battery pack will become slightly warm while charging, this is normal and does not indicate a problem. Do not place the charger in an area of extreme heat or cold. Best is at normal room temperature. When the battery becomes fully charged, unplug your charger from the power supply and remove the battery pack from the charger.

  • Page 9: Switch Lock

    NORDIC 8.3 INSERTING AND REMOVING THE BATTERY (FIG.2) WARNING: Before making any adjustments ensure the drill is switched off with the direction of rotation  selector in the centre position. • Hold the tool with one hand and the battery pack (5) with the other.

  • Page 10: Cleaning And Maintenance

    NORDIC 8.6.3 VARIABLE SPEED This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression. 8.7 LED LIGHT The LED work-light can light prior to motor running if you press the switch lightly, which keep the work area to be lighted for checking clearly at first, and it lights also during your operation.
  • Page 11 NORDIC FIG. A FIG. 2 FIG. 1 FIG. 3 FIG. 1A...
  • Page 12 NORDIC...
