Summary of Contents for NEFF KI1813FE0G

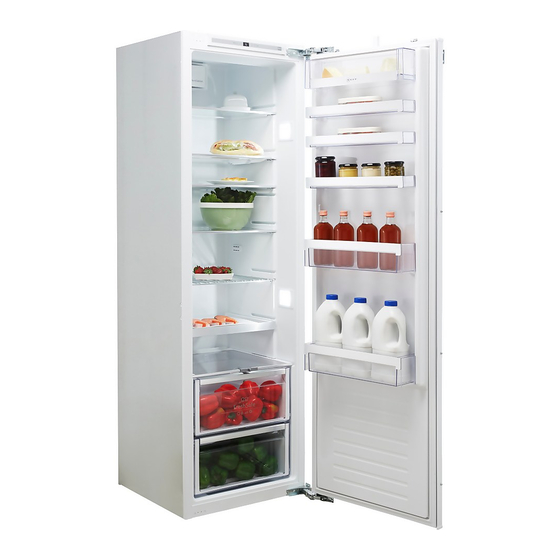

- Page 1 Refrigerator [en] User manual KI181..
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Basic operation ...... 17 General information...... 4 Switching on the appliance .... 17 Intended use........ 4 Operating tips......... 18 Restriction on user group.... 4 Switching off the appliance .... 18 Safe transport ........ 5 Setting the temperature.... 18 Safe installation ........ 5 Additional functions ..... - Page 3 Customer Service...... 27 Product number (E-Nr.) and pro- duction number (FD) ...... 27 Technical data ....... 27...
-
Page 4: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡... -
Page 5: Safe Transport
Safety en Cleaning and user maintenance must not be performed by chil- dren unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable. Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer. -
Page 6: Safe Use
en Safety ¡ If the insulation of the power cord is damaged, this is danger- ous. ▶ Never let the power cord come into contact with heat sources. ▶ Never let the power cord come into contact with sharp points or edges. ▶... - Page 7 Safety en ▶ Do not let children play with small parts. WARNING ‒ Risk of explosion! ¡ Mechanical devices or other devices may damage the refri- geration circuit; flammable refrigerant may escape and ex- plode. ▶ To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommen- ded by the manufacturer.
-
Page 8: Damaged Appliance
en Safety Damaged appliance Follow the safety instructions if your appliance is damaged. WARNING ‒ Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is danger- ous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured sur- face. - Page 9 Safety en ▶ Call after-sales service. → Page 27...
-
Page 10: Preventing Material Damage
en Preventing material damage Saving energy Preventing material damage Preventing material dam- If you follow these instructions, your appliance will use less power. Follow these instructions to prevent Selecting the installation material damage to your appliance, location accessories or other objects in your Follow these instructions when in- kitchen. -
Page 11: Installation And Connection
Installation and connection en ¡ Do not cover or block ventilation Installation and connection Installation and connec- openings. tion The air on the back wall of the ap- pliance can escape more easily You can find out where and how best and the appliance does not warm to install your appliance here. -
Page 12: Criteria For The Installation Loca- Tion
en Installation and connection Prepare the appliance for first use. The appliance is fully functional within → Page 12 the permitted room temperature. If an appliance with climate class SN Electrically connect the appliance. is operated at colder room temperat- → Page 12 ures, the appliance will not be dam- aged up to a room temperature of Criteria for the installation loca- 5 °C. - Page 13 Installation and connection en Check the mains plug is inserted properly. a The appliance is now ready for use.
-
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Appliance You can find an overview of the parts of your appliance here. Extendable shelf → Page 16 Controls Variable shelf → Page 16 Fruit and vegetable container with hu- midity control → Page 16... -
Page 15: Controls
Features en Fruit and vegetable container Door storage compartment for large → Page 16 bottles Rating plate Note: Deviations between your appli- ance and the diagrams may differ Butter and cheese compartment with regard to their features and size. → Page 17 Controls The controls are used to configure all functions of your appliance and to obtain information about the operating status. -
Page 16: Shelf
en Features Shelf Fruit that is sensitive ¡ Pineapples to cold ¡ Bananas To vary the shelves as required, re- ¡ Mangoes move the shelf and re-insert it else- ¡ Papayas where. ¡ Citrus fruits → "Removing the shelf", Page 21 Vegetables that are ¡... -
Page 17: Butter And Cheese Compartment
Basic operation en Condensation may form in the fruit Door racks and vegetable container depending To adjust the door racks as required, on the food and quantity stored. remove the door rack and re-insert Remove the condensation with a dry elsewhere. cloth and adjust the air humidity in → "Removing door racks", Page 21 the vegetable container using the hu-... -
Page 18: Operating Tips
en Additional functions Set the required temperature. Note: When Super cooling is → Page 18 switched on, increased noise may occur. Operating tips Switching on Super cooling ¡ Once you have switched on the Press ▶ appliance, the set temperature is lights up. only reached after several hours. Do not put in any food in the appli- Note: After approx. -
Page 19: Tips For Storing Food In The Refri- Gerator Compartment
Defrosting en The refrigerator compartment can Tip: Store food that does not spoil also be used to store highly perish- easily in the warmest zone, e.g. hard able foods in the short to medium cheese and butter. Cheese can then term. The lower the selected temper- continue to release its aroma and the ature, the longer the food remains butter will still be easy to spread. -
Page 20: Cleaning And Servicing
en Cleaning and servicing To ensure that the condensation can Cleaning the appliance drain and odours do not form, ob- Clean the appliance as specified to serve the following information: ensure that it is not damaged by in- → "Cleaning the condensation chan- correct cleaning or unsuitable clean- nel and drainage hole", Page 21. -
Page 21: Cleaning The Condensation Channel And Drainage Hole
Cleaning and servicing en Putting the food into the appliance. Lower the shelf and swing it out to the side. Cleaning the condensation Removing door racks channel and drainage hole Lift the door rack upwards and re- ▶ Regularly clean the condensation move it. - Page 22 en Cleaning and servicing Press the fastenings for the lower glass plate outwards. Lift the glass plate at the front and pull it out at the rear .
-
Page 23: Troubleshooting
Troubleshooting en Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... -
Page 24: Information On Display Panel
en Troubleshooting Information on display panel Fault Cause troubleshooting Message showing "D" or "E" The electronics have detec- Call the after-sales service. ▶ → "Customer Service", Page 27 appears in the display. ted a fault. A warning signal sounds and Different causes are pos- Press ▶... -
Page 25: Odours
Troubleshooting en Odours Fault Cause troubleshooting The appliance has an un- Different causes are pos- Prepare the appliance for cleaning. → Page 20 pleasant smell. sible. Clean the appliance. → Page 20 Clean all food packaging. To prevent odours from forming, store strong smelling food in air- tight containers. -
Page 26: Conducting An Appliance Self- Test
en Storage and disposal Conducting an appliance self- Disposing of old appliance test Valuable raw materials can be re- used by recycling. Switch off the appliance. → Page 18 WARNING Switch the appliance back on after Risk of harm to health! approx. five minutes. → Page 17 Children can lock themselves in the Within the first 10 seconds after appliance, thereby putting their lives... - Page 27 Customer Service en the European Economic Area is 2 Customer Service Customer Service years (except for Denmark and Sweden, where it is 1 year) accord- If you have any queries, are unable to ing to the terms of warranty applic- rectify faults on the appliance your- able to the location.
- Page 28 en Technical data More information about your model can be found online at https://en- ergylabel.bsh-group.com . This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then fol- low the instructions on searching for models.
- Page 32 *9001483040* 9001483040 Constructa-Neff Vertriebs-GmbH Carl-Wery-Straße 34 81739 München GERMANY 000218...
