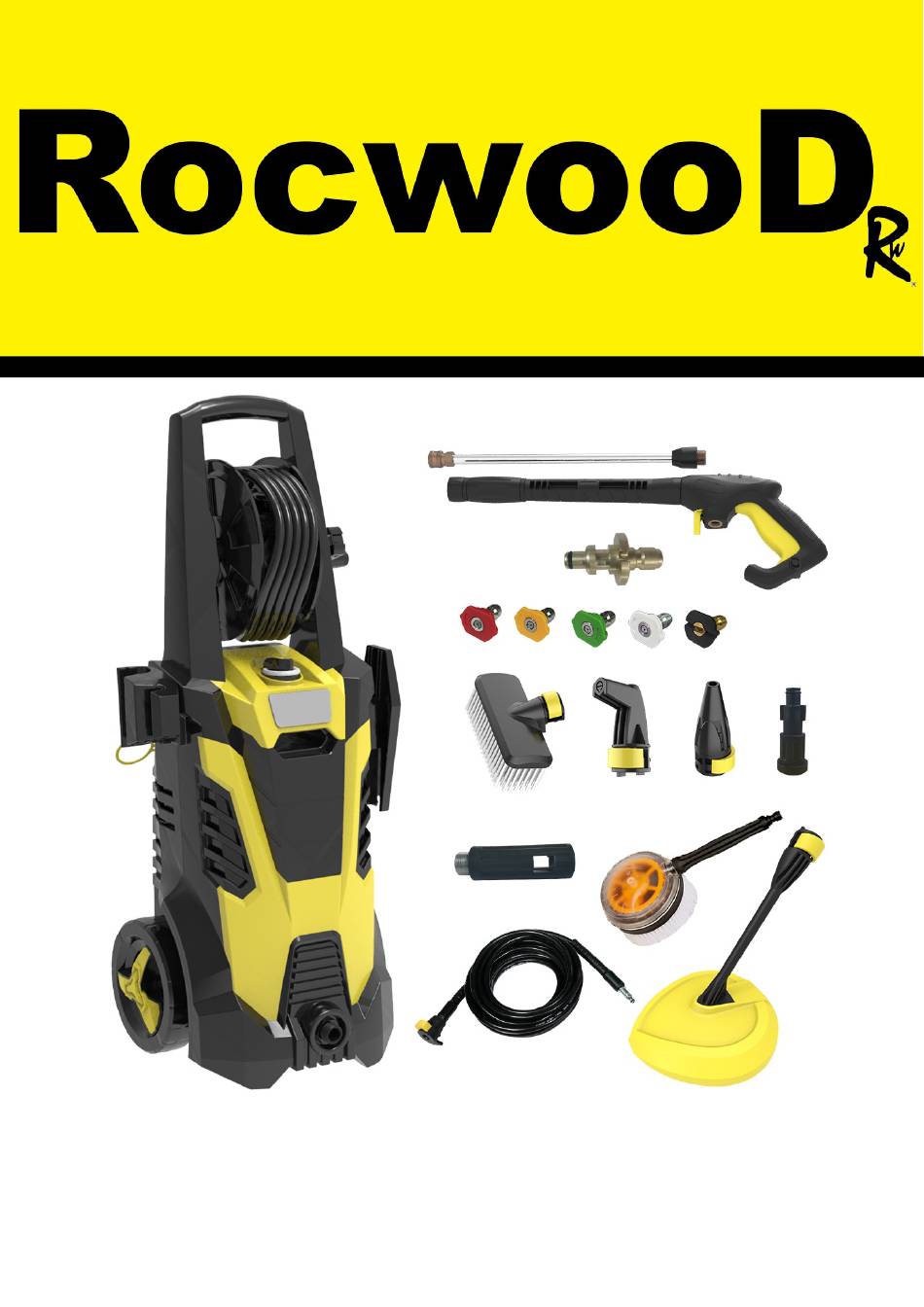

RWEPW5
ASSEMBLY REQUIRED
please read & understand this manual; paying particular attention to the safety instructions before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement
determines the right to make modifications without prior warning.
Images are used for illustration purposes only.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RocwooD RWEPW5
Summary of Contents for RocwooD RWEPW5
- Page 1 RWEPW5 ASSEMBLY REQUIRED please read & understand this manual; paying particular attention to the safety instructions before use. Incorrect use of the product could put the operator or machine in danger. Whilst every effort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement determines the right to make modifications without prior warning.
- Page 2 Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from RocwooD Ltd. In all cases this copyright notice must remain intact.
-
Page 3: Specification
MAX WATER TEMPERATURE 50ºC AUTO STOP/START CONTROL Consistent with our policy of continuous improvement, ROCWOOD reserves the right to change the design and configuration of any of its products without notice or obligation. Therefore, please treat the text and images in this manual as for illustrative purposes only. They may in no case serve as a basis for any legal... - Page 4 INSTRUCTION MANUAL IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions to reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efficiency in using this product.
-
Page 5: General Safety Instructions
INSTRUCTION MANUAL GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner's manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 INSTRUCTION MANUAL SAFETY INSTRUCTIONS When using this product, basic precautions must be followed, including: • Read all the instructions before using the product. • Pressure washer must not be used by children or untrained person. • Do not operate the product when fatigued or under the influence of alcohol or drugs. •...
-
Page 7: Main Power Connection
INSTRUCTION MANUAL • WARNING: Water that has circulated in the anti-back flow system is not considered drinkable. • WARNING: Do not use the appliance if the power cable or important parts of the appliance are damaged, for example, the safety devices, high pressure hoses and handgun. •... -
Page 8: Know Your Machine
INSTRUCTION MANUAL KNOW YOUR MACHINE 1. Adjustable Nozzle 2. Gun Lance 3. Gun 4. High Pressure Hose - 8M + 18M Extension Hose 5. Outlet Connector 6. Machine Body 7. Hose Reel 8. Electrical Cable - 5m 9. BS 3-Pin Plug 10. -
Page 9: Safety Devices
INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. SAFETY DEVICES • The unloader valve can reduce pressure if it exceeds pre-set values. The trigger gun features a locking device. When the knob is activated, the trigger gun cannot be operated. PUSH PUSH UNLOCK... -
Page 10: High Pressure Hose
INSTRUCTION MANUAL HIGH PRESSURE HOSE Attach the high-pressure hose to the trigger gun and machine. Detach the high-pressure hose by pressing the pawl (A) or button (B) LANCE & NOZZLE • Push the lance into the trigger gun • When inserted turn it. CAUTION: Make sure the lance is properly fixed to the gun •... - Page 11 ASSEMBLING THE PATIO CLEANER Align the patio lance with the hole in the patio head. Turn the patio cleaner over and insert the 2 screws supplied, tighten firmly. Screw Screw Insert the patio Insert the patio together together lance lance Place the rotary arm on to the patio lance and insert the U-pin to fix the rotary arm in place.
-
Page 12: Water Connection
INSTRUCTION MANUAL ATTACHING THE HOSE EXTENSION WATER CONNECTION Connecting the water supply pipe. Follow your water supplier’s instructions. For connection information, see the data plate/technical specifications. Use a reinforced hose (not supplied) with a standard connection (ext. diameter: 16mm/int. 12mm, maximum length: 25m). IMPORTANT! Only use water without any impurities. -
Page 13: Power Connection
INSTRUCTION MANUAL POWER CONNECTION WARNING To reduce the risk of injuries, always switch off the motor and pull out the mains plug before working on the machine. The product can be connected to any socket (with 230-240V alternating current). We recommend to always use the appliance via a Residual Current Device (RCD) with a tripping current of max. -
Page 14: After Use
INSTRUCTION MANUAL NOTE: If the machine is left or not used for 5 minutes, it must be switched off: • Press the start/stop switch (4) to "O". • Disconnect the electrical plug (10) from the socket. • Shut off the water supply and activate the trigger of the trigger gun (1) to relieve the machine of pressure. -
Page 15: Maintenance And Storage
INSTRUCTION MANUAL MAINTENANCE & STORAGE To ensure a long and problem free life span of your machine, please take the following advice: • Wash the water hose, high pressure hose, spray lance and accessories before mounting. • Clean the connectors of dust and sand. •... -
Page 16: Troubleshooting
INSTRUCTION MANUAL T ROUBLE SHOOTING WARNING Only perform the steps described in these instructions! All further inspection, maintenance & repair work must be performed by an authorised service specialist, if financially viable. If the product does not perform properly, makes unusual sounds, the motor does not start or stop as described, or any other irregularity or malfunction occurs, do not attempt to repair the product by yourself. -
Page 17: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY RocwooD LL13 0HU (Impo rter) declare that product: Design atio RocwooD 2300w Electric Pressure Washer del(s): RWEPW5 Type/Serial ng label on machine Rated ltage: 220-240V~ Rated Frequ ency: 50Hz Rated Inpu 2300w Class: es with ollo... -
Page 18: Warranty
INSTRUCTION MANUAL WARRANTY Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to material or manufacturing faults during private use within 2 years of the date of purchase we shall be liable for warranty in accordance with statutory warranty regulations, provided that: - The product was not put to any use other than the intended.- Was not overloaded.
