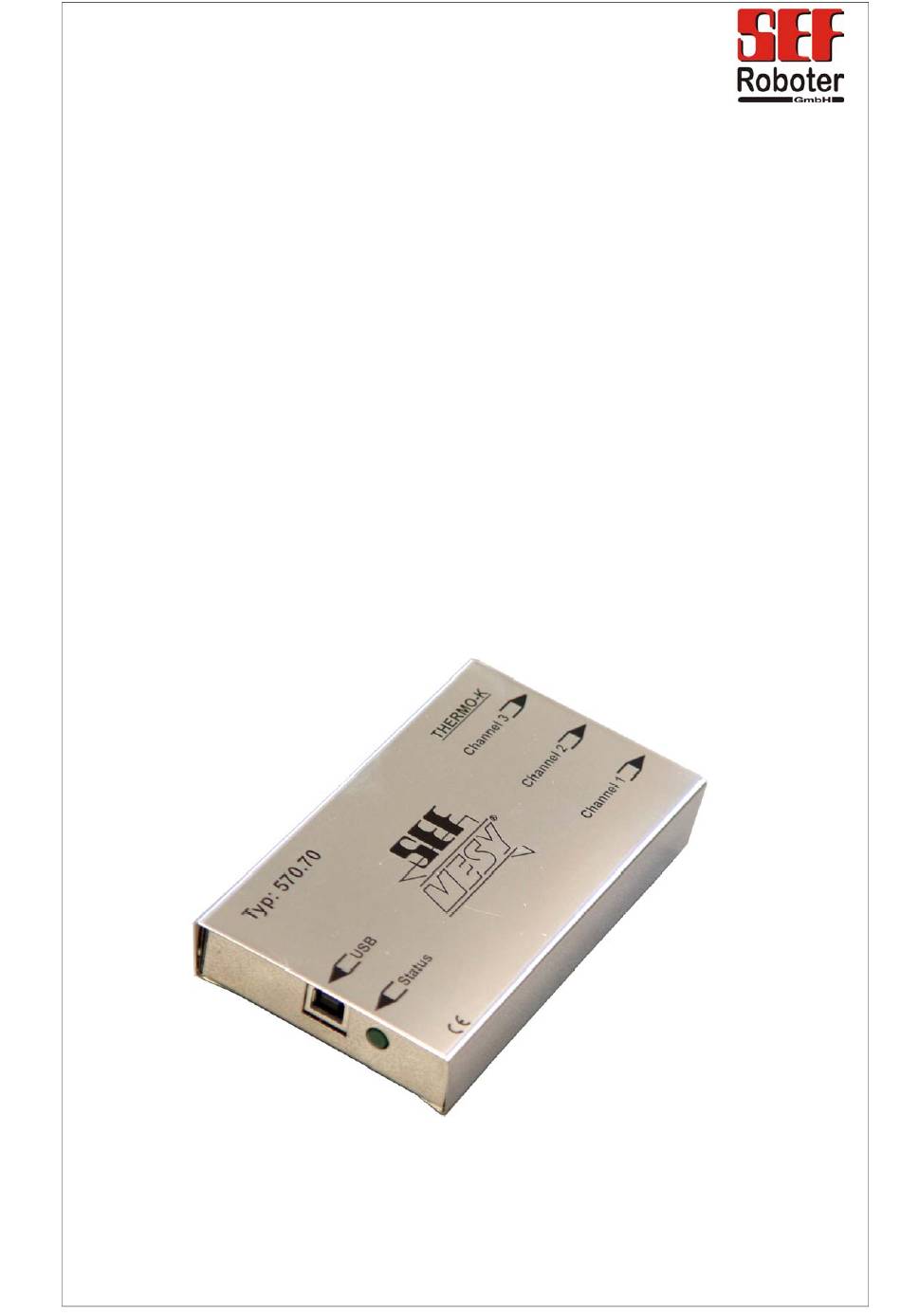

- Page 1 USB-MESY – 570.70 Quick reference guide Installation and operation...
- Page 2 USB-MESY – 570.70...

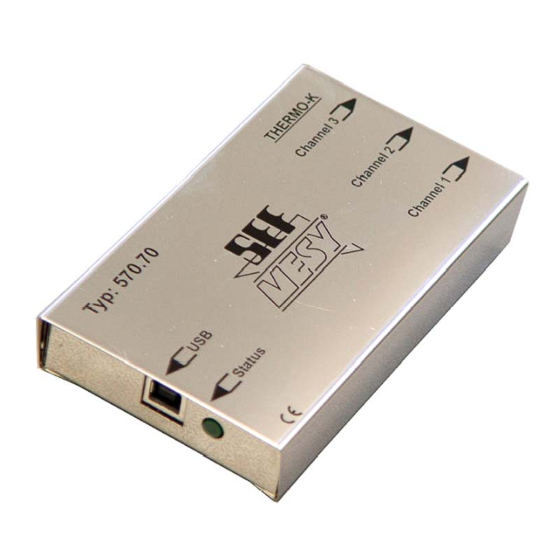

- Page 3 USB-MESY – 570.70 Congratulations for the purchasing of your new SEF USB-Mesy. You have now a modern and capable device for an easy temperature measurement to your disposal. The readout and the analysation of the recorded Data occurs on your Windows-PC ®...
-
Page 4: Starting The Software
USB-MESY – 570.70 1. Installation, beginning of operation: Software installation Before connecting the hardware the software must be installed. ⇒ Please insert the enclosed CD-ROM in the CD-ROM drive of your PC. ⇒ Open the file “Setup.exe” from the CD-ROM. ⇒... - Page 5 USB-MESY – 570.70 3. Operation of the measurement software In the program “Mesy for Windows” you can call the following functions: ⇒ File/../ New – Create a new “measurement” or “reference” .../ Load – Load a “measurement” or “reference” or import a “measurement”...
- Page 6 USB-MESY – 570.70 Extras/../ change main password – Open the window for changing the main .../ Language – Open the window for changing the language Description of the buttons in the main program opens a window to adjust a trigger temperature; after reaching this trigger temperature the Mesy will start the measurement automatically (only at USB-Mesy 2 570.77/ serial Mesy) starts the measurement or the reading of the memory...
- Page 7 USB-MESY – 570.70 4. Executing the measurement Instructions for the operation: During the operation an internal temperature of the Mesy of more than 60°C must be avoided categorical. Otherwise heavy damages can appear at the electronic of the Mesy 570.70. ) Executing the measurement: o Press the button (10) CONFIGURATION and set the values according to the requested measurement.
-
Page 8: Danger Of Burns
USB-MESY – 570.70 Example for an adjustment: Take the USB connecting cable and connect the USB-Mesy with your PC. ⇒ Connect the thermocouple sensors of type K with the measurement system. ⇒ Start the software “Mesy for Windows” ⇒ Choose in the pull down menu Mesy/… …/Adjust ⇒... - Page 9 USB-MESY – 570.70 Insert the ends of the thermocouple sensors of all 3 channels in the pot with the ⇒ 100°C medium. Start with channel 1. ⇒ Select channel 1 in the adjustment menu. ⇒ Enter the value 1000 (temperature in 1/10 °C) in the field >Adjust High<. ⇒...
- Page 10 USB-MESY – 570.70 Notes:...
- Page 11 USB-MESY – 570.70 Notes:...
- Page 12 USB-MESY – 570.70 For any questions please contact us under phone no. +49 41 36- 909 0. Your SEF- Roboter GmbH Team © SEF Roboter GmbH, Juni 2005 Subject to technical change. V1.1...
