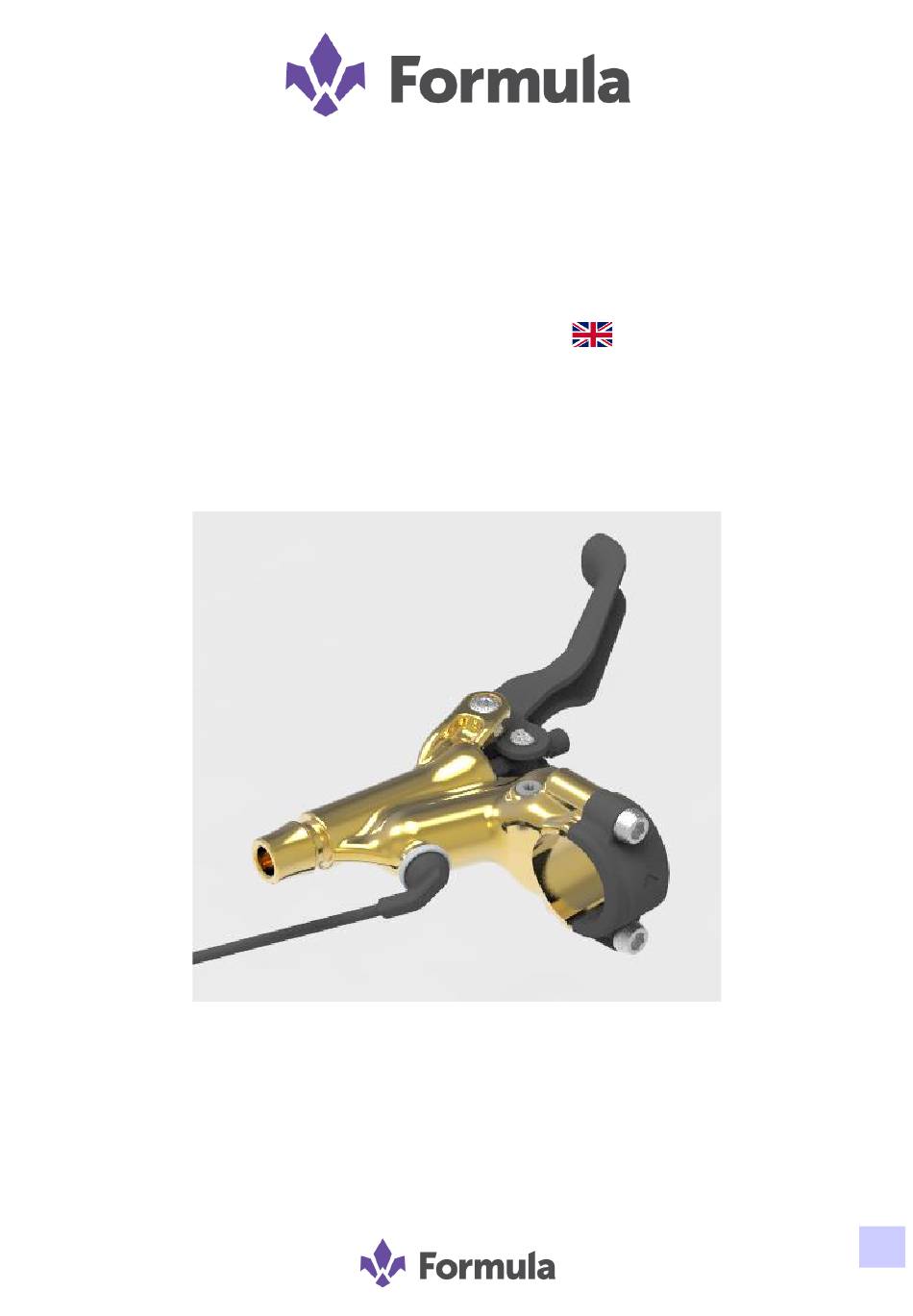

- Page 1 CURA retrofitting for E-Bike Service Manual – This manual contains informations regarding the CURA standard brake retrofitting for E-Bike.
- Page 2 Index Important informations ............................... 3 Parts list ..................................3 Exploded view ................................4 Required tools ................................5 Upgrade CURA E-Bike ..............................5...
- Page 3 Formula reduce the life span of our products. IMPORTANTE Formula recommends only ORIGINAL spare parts and lubricant products. Formula recommends consulting servicing technicians for these activities. INFORMAZIONI DI SICUREZZA Always wear nitrile gloves and safety glasses when working on the shock absorber.
- Page 4 Exploded view...
- Page 5 Allen key 3 mm ▪ Torx T10 key ▪ Formula mineral oil Upgrade CURA E-Bike Procedure Remove the oil inside the brake system using the bleeding screw on the master cylinder and on the caliper, using a Torx T10 key. Dispose the oil correctly.
- Page 6 3. Tight the bleeding screw assembled in step 2 in the middle bleeding hole on the master cylinder. Use a torque wrench with 3 mm tool and a torque of 2 Nm. 4. Unscrew the lever pivot (7 and 8). Remove the dust seal (9) and the seeger (10), so that the lever and the pushrod can be removed.
- Page 7 Tight the lever pivot using a torque wrench with 3 mm tool (3 Nm) and a 3 mm allen key. 6. Place the reed sensor (4) unitl it fits well. 7. Bleed the brake with Formula mineral oil. For the correct procedure, follows the video on Formula’s YouTube Channel: Bleeding CURA.
- Page 8 FORMULA S.r.l. Via Erbosa, 63 - 59100 Prato (Italia) Tel. +39 0574 603 609 Fax +39 0574 611 046 Reg. Imprese Prato / C.F. / P.IVA 02081070977 PEC: formula-italy@legalmail.it Cap. Soc. 500.000,00 € i.v. The content of this document can be altered without notice. All rights reserved.
