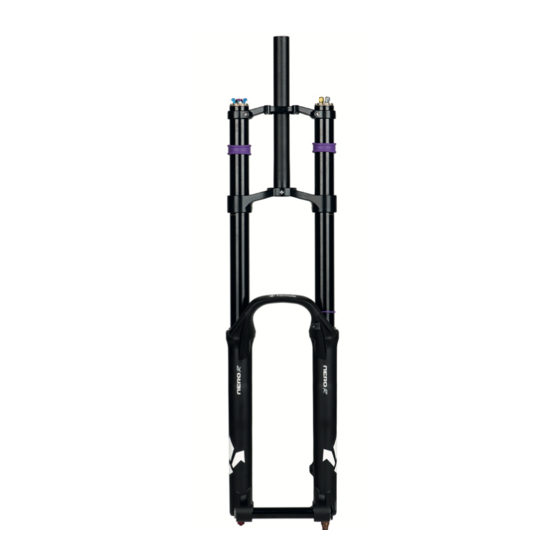

Summary of Contents for Formula NERO R

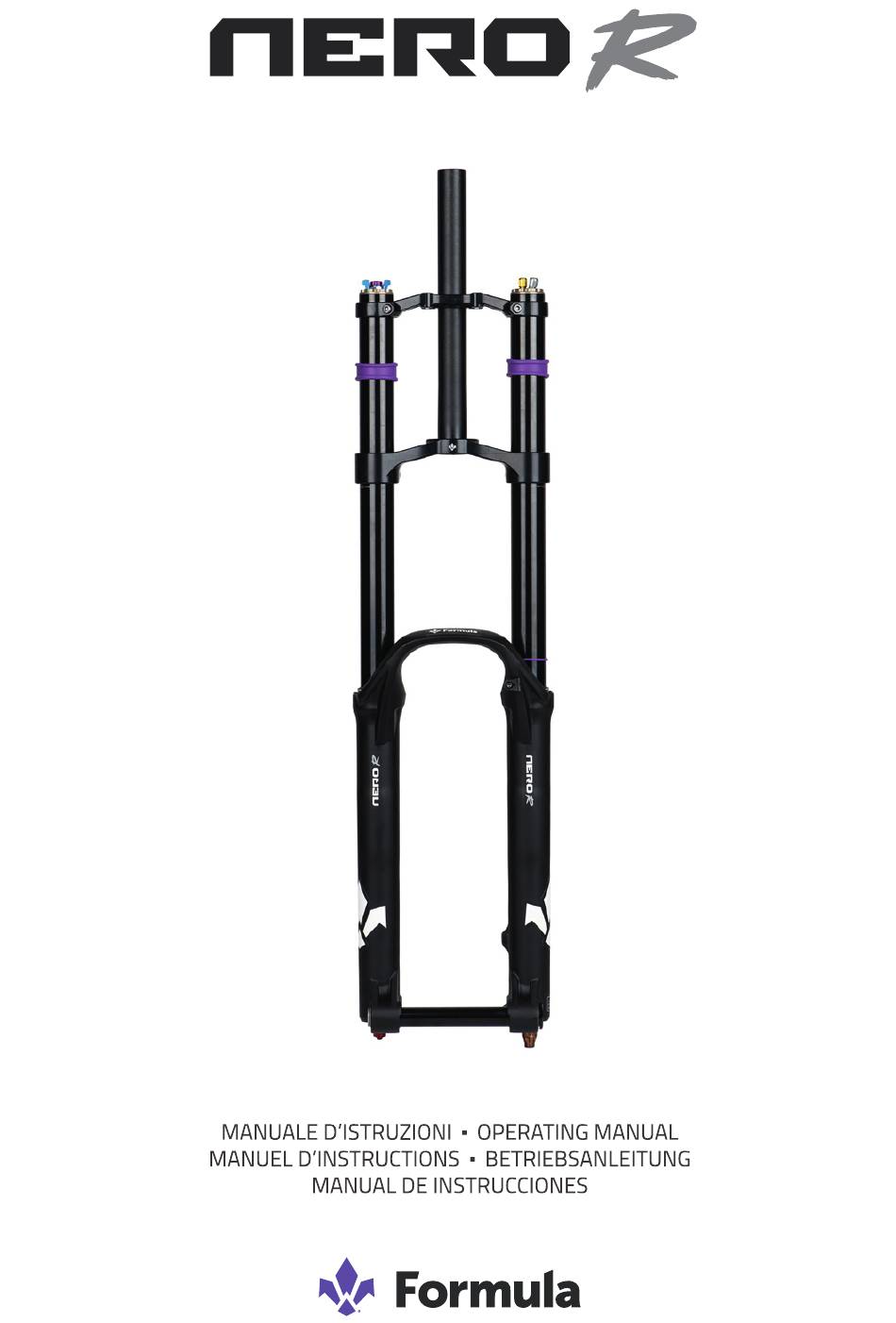

  • Page 1 Vers. 03...
  • Page 2 TORX® è un marchio registrato di CAMCAR / TEXTRON INC. Tutti i marchi appartengono ai rispettivi proprietati. TORX® is a registered trademark of CAMCAR / TEXTRON INC. All trademarks are the property of their respective owners. TORX® est une marque déposée de CAMCAR / TEXTRON INC. Toutes les marques appartien- nent aux propriétaires respectifs.

  • Page 3: General Safety Guidelines

    TRANSLATION OF THE ORIGINAL INSTRUCTION MANUAL WARNING! BEFORE INSTALLING AND USING THIS NEW FORMULA. PRODUCT IT IS CRITICAL TO YOUR SAFETY THAT YOU READ AND STRICTLY ADHERE TO THE IN- STRUCTIONS IN THIS MANUAL. FAILURE TO DO SO COULD CAUSE SERIOUS INJURY AND/OR INVALIDATE YOUR LEGAL RIGHTS.
  • Page 4 A locking device not correctly adjusted can cause the wheel detachment.. Legs Use the tightening torque marked on the pin surface. LOCK NUT with LEFT HAND THREAD SB-B043-05 SHIM FOR CONICAL AXEL SB-R052-15 CONICAL BUSH WHEEL AXLE SB-B035-05 AXLE BUSH Ø20 SB-B037-05 WHEEL AXLE CONICAL SEAT Ø20 DH SB-P089-05...
  • Page 5 NERO FORKS SAFETY GUIDELINES •The NERO forks produced by FORMULA. are designed exclusively for use on two wheel bicycles. Any other use is to be considered hazardous. FORMULA. shall not be held liable for any consequences from improper use. •If the fork ever loses oil or makes unusual noises, stop riding and have it inspected by FORMULA.

  • Page 6: Environmental Notes

    ENVIRONMENTAL NOTES In order to protect the environment, please follow to these simple instructions to correctly dispose of FORMULA. products: 1) The packaging does not require special disposal because it is not dangerous in any way; we suggest recycling paper and plastic.
  • Page 7 TECHNICAL SPECIFICATIONS NERO FORKS 27.5” Fork Axle To Crown Tire Size limit ± 5.0 mm (*) Travel 27.5 x 2.50 inch wide 200 mm Any tire size greater than 2.35 inch wide must be checked 190 mm with fork fully compressed and have a minimum of 6.0 mm 180 mm “tire to crown”...
  • Page 8 WARNING: Every time the value “axle to crown” is changed, make sure that the distance between the crown and the tire is greater than 6 mm. In addition, make sure that the words “end stroke” on the pipe remains below the lower plate (3).
  • Page 9 1.4 Lubricants Only use hydraulic oil, lubricant and grease included in the kit sold by FORMULA. Hydraulic oil Idemitsu OJ01, Formula FX and Grease Formula Fork Seal. In the cartridge, use hydraulic oil Idemitsu OJ01 only.

  • Page 10: Installation

    NERO suspension forks. FORMULA strongly recommends that a qualified service center authorized by FORMULA install the fork on your bicycle. Improperly installed forks can cause damage to the NERO suspension and serious injury or death. -FORMULA does not authorize the end user to install the fork on the bike.
  • Page 11 3.2 Adjusting hydraulic compression - The knob (11) is used to progressively adjust hy- draulic compression in high speeds. - The knob (25) is used to progressively adjust hy- draulic compression in low speeds. 3.3 Adjusting the air pressure The setting of the 3Air system is used to adjust the Fig.
  • Page 12 4) you cannot check the Silver chamber without first deflating the Bronze. The table below is given for reference on the leg of the fork. Follow the instructions given in the video tu- torial found in link bit.ly/3air-setup to know how to easily set the 3Air system in Nero R.

  • Page 13: Maintenance

    Neopos has been designed to be compatible with Formula forks only. To install Neopos on Nero R: 1- Deflate the chambers following the inflation steps in reverse order: bronze, silver e gold.
  • Page 14 4.2 Issues - Causes - Remedies This chart mentions some issues that may be encountered when using the fork along with the possible causes and remedies. WARNING: The operations listed below and accompanied by this symbol must be carried out only by authorized service centers. Fork extends too quic- Rebound damping insuf- Increase rebound damping...

  • Page 15: Read Carefully

    Incorrect compression adjustment may cause damage to the fork, serious injury or death. READ CAREFULLY! FORMULA. extends to the original purchaser of its forks a limited warranty that the forks are free of defects in material and/or workmanship for a period of two years from date of purchase.
  • Page 16 Some unintended purposes include cross country and UCI sanctioned downhill races. c. Use of materials or spare parts that do not carry the FORMULA trademark NERO forks. FORMULA. shall not guarantee conformity, safety, service life...
  • Page 17 FORMULA S.a.s. di “Formula Group S.r.l.” & C. Via Erbosa, 63 - 59100 Prato (Italia) Tel. +39 0574 603 609 Fax +39 0574 611 046 Reg. Imprese Prato / C.F. / P.IVA 02081070977 PEC: formula-italy@legalmail.it Cap. Soc. 500.000,00 € i.v.
