Page 1
HISTORY KDL-40/46/T3500/40V2900 Model Name SERVICE MANUAL Click on Page Number to display detail of changes. Date Part Number Description of Revisions Version 2007.10 9-927-588-01 Original Manual. 2007.12 9-927-588-02 Addition of full size schematic diagrams. (Full)
Page 2

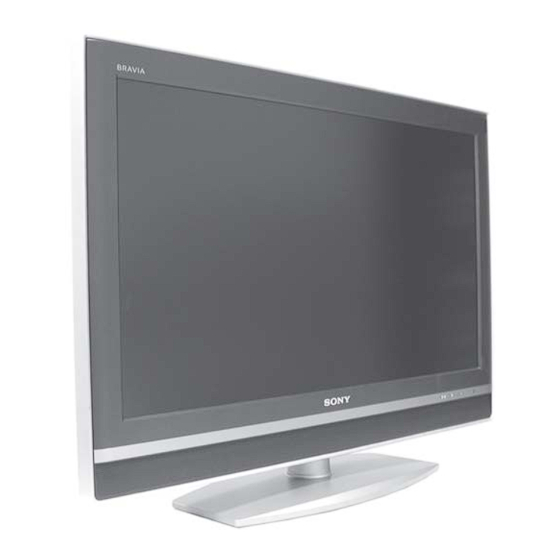

WAX2F RM-ED008 WAX2F SERVICE MANUAL CHASSIS MODEL MODEL COMMANDER DEST COMMANDER DEST KDL-40T3500 KDL-40T3500 RM-ED008 RM-ED008 KDL-46T3500 KDL-46T3500 RM-ED008 RM-ED008 KDL-40V2900 RM-ED008 KDL-40T3500 / KDL-46T3500 / KDL-40V2900 RM-ED008 FLAT PANEL COLOR TV - 1 -...
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE 3-4-1. Set up mode for White Balance Adjustment ... THESE COMPONENTS WITH SONY PARTS WHOSE PART 3-4-2. White Balance of colour temperature “Cool” .. NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN 3-4-3.
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics. For more information on the use of Lead Free Solder, please refer to http://www.sony-training.com - 3 -...
WAX2F RM-ED008 SPECIFICATIONS Sound Output LCD(Liquid Crystal Display) Panel Projected Picture Size Approx 101.6cm (40 inches) Right and Left speaker 2 x 10W (RMS) Approx 116.8cm (46 inches). Sub-woofer Input/Output Terminals [REAR] General Specifications Power Requirements 220 - 240V Inputs for Audio and Video signals. 1: 21-pin Euro connector Inputs for RGB.
WAX2F RM-ED008 CONNECTORS 21 Pin Connector (SCART) Pin No Signal Signal level Audio output B Standard level : 0.5V rms (right) Output impedence : Less than 1kohm* Audio input B Standard level : 0.5V rms (right) Output impedence : More than 10kohm* Audio output A Standard level : 0.5V rms (left)
Page 7
WAX2F RM-ED008 HDMI Connector Pin No Signal Assignment Pin No Signal Assignment TMDS Data2+ TMDS Clock Shield TMDS Data2 Shield TMDS Clock- TMDS Data2- TMDS Data1+ Reserved (N.C. on device) TMDS Data1 Shield TMDS Data1- TMDS Data0+ DDC/CEC Ground TMDS Data0 Shield +5V Power TMDS Data0- Hot Plug Detect...
WAX2F RM-ED008 WAX2F SELF DIAGNOSTIC SOFTWARE The identification of errors within the WAX2F chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty.
WAX2F RM-ED008 2-7. BE and FEE BOARD REMOVAL Six screws Six screws B2H board B2H board Four screws Four screws FEE board FEE board 2-8. G2A BOARD REMOVAL Four screws Four screws G2A board G2A board – 11 –...
WAX2F RM-ED008 2-9. H1E BOARD REMOVAL 2-10. H2E or H46 BOARD REMOVAL H2E(KDL-32/40V2500) or H46E Board(KDL-46V2500) H2E(KDL-32/40V2500) or H46E Board(KDL-46V2500) Holder, Side Jack (L) Holder, Side Jack (L) – 12 –...
WAX2F RM-ED008 SECTION 3 ADJUSTMENTS 3-2. Signal Level Adjustment 3-1. How to enter Service Mode Service adjustments to this model can be performed using the 3-2-1. Set up of AD calibration1 adjustment for supplied remote Commander RM-ED008. terrestrial analog. The following adjustments are done via ECS. Turn on the power to the TV set and enter into the stand-by mode.
WAX2F RM-ED008 3-2-4. C signal calibration1 adjustment for 3-2-7. Set up of C signal calibration1 adjustment terrestrial analog. for video. 1. Send ECS_ADJUST_TCD3_HUE_RF command. 1. Input PAL colour bar 75%Y, 75%C via AV1 input. 2. Read S-REG: READ_BACK_B00 via ECS. (READ_AREA=0). 2.
WAX2F RM-ED008 2. Send ECS_ADJUST_TCD3_CONT_V command. 3-3-2. Set up Trident internal SG and brightness measurement 3. Read the value of S-REG:APL_LUMA via ECS. Confirming that the value is within spec of the table below. 1. Ensure TEST_PATTEN_ON=1. 2. Ensure TEST_G_LEVEL=204. 3.
WAX2F RM-ED008 7. Set up TEST_G_LEVEL=153. b). Adjustment value of R_GAMMA_OFST_05=<128. 8. Adjust R_GAMMA_OFST_04 and B_GAMMA_OFST_04 · chroma values so that they are within tolerance in the table below. R_GAMMA_OFST_06 = R_GAMMA_OFST_07 =R_GAMMA_OFST_04. Tolerance c). Adjustment value of B_GAMMA_OFST_05=<180. 40" 0.1924 0.4272 0.7JND...
WAX2F RM-ED008 4. Set up TEST_G_LEVEL=51 and adjust R_BKG and B_BKG 3-5. Panel Replacement values to within the spec of the table below. When replacing the panel please reset the gamma and white balance before performing W/B (See page 27, 3-4) for new panel. Spec.
Page 45
FIX2 RM-ED010 FEE.-WAX2F NOTE: THESE ARE THE TWO SCREW +3V3D CONNECTIONS TO THE GND ISLAND CN3610 A SIDE B SIDE NEAR END OF CI CONNECTOR. R3612 R3618 CN3604 FB3600 THIS ISLAND IS GROUNDED VIA THE R3613 R3619 CHASSIS SCREWS. IT CONNECTS R3614 R3620 +3V3D...
Text Search ~ FEE Printed Wiring Board Conductor Side A ~ ~ TUE Printed Wiring Board Conductor Side A ~ ~ FEE Printed Wiring Board Conductor Side B ~ ~ TUE Printed Wiring Board Conductor Side B ~ - 53 -...
Text Search ~ H1E Printed Wiring Board Conductor Side A ~ ~ H1E Printed Wiring Board Conductor Side B ~ ~ H2E Printed Wiring Board Conductor Side A ~ ~ H2E Printed Wiring Board Conductor Side B ~ ~ H4E Printed Wiring Board Conductor Side A ~ ~ H4E Printed Wiring Board Conductor Side B ~ ~ H46 Printed Wiring Board Conductor Side A ~ ~ H46 Printed Wiring Board Conductor Side B ~...
WAX2F RM-ED008 SECTION 5 EXPLODED VIEWS NOTE : Items with no part number and no description are not Items marked “*” are not stocked since they are seldom required for stocked because they are seldom required for routine service. routine service. Some delay should The construction parts of an assembled part are indicated be anticipated when ordering these with a collation number in the remarks column. items. 5-1. CHASSIS a 7-685-648-79 SCREW, +BVTT 3X12(S)TYPE2 IT-3 b 2-580-640-01 SCREW, +BVTP2 4X16 c 2-580-606-01 SCREW, +PSW M5X8 Note : The components identified by mark contain confidential information. Strictly follow the instructions when ever the components are repaired and/or replaced.
SECTION 6 ELECTRICAL PARTS LIST PARTS LISTING TABLE OF CONTENTS Page FEE BOARD COMPLETE Parts List : ....................60 TUE BOARD COMPLETE Parts List : ....................63 H46 BOARD COMPLETE Parts List : (46 inches only)................. 65 G2A BOARD COMPLETE Parts List : ....................
Page 70
Note : The components identified by mark G2A BE contain confidential information. Strictly follow the instructions when ever the components are repaired and/or replaced. REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK * A-1196-582-A BE COMPLETE R6530 1-219-729-61 METAL 0.33 10% 5W R6531 1-219-729-61 METAL 0.33 10% 5W 2-586-175-01...
