NT

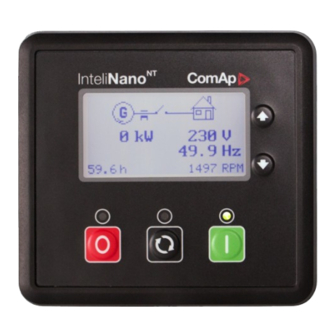

InteliNano
MRS 3
IMPORTANT: D+ is not used, connect this terminal to battery
positive!

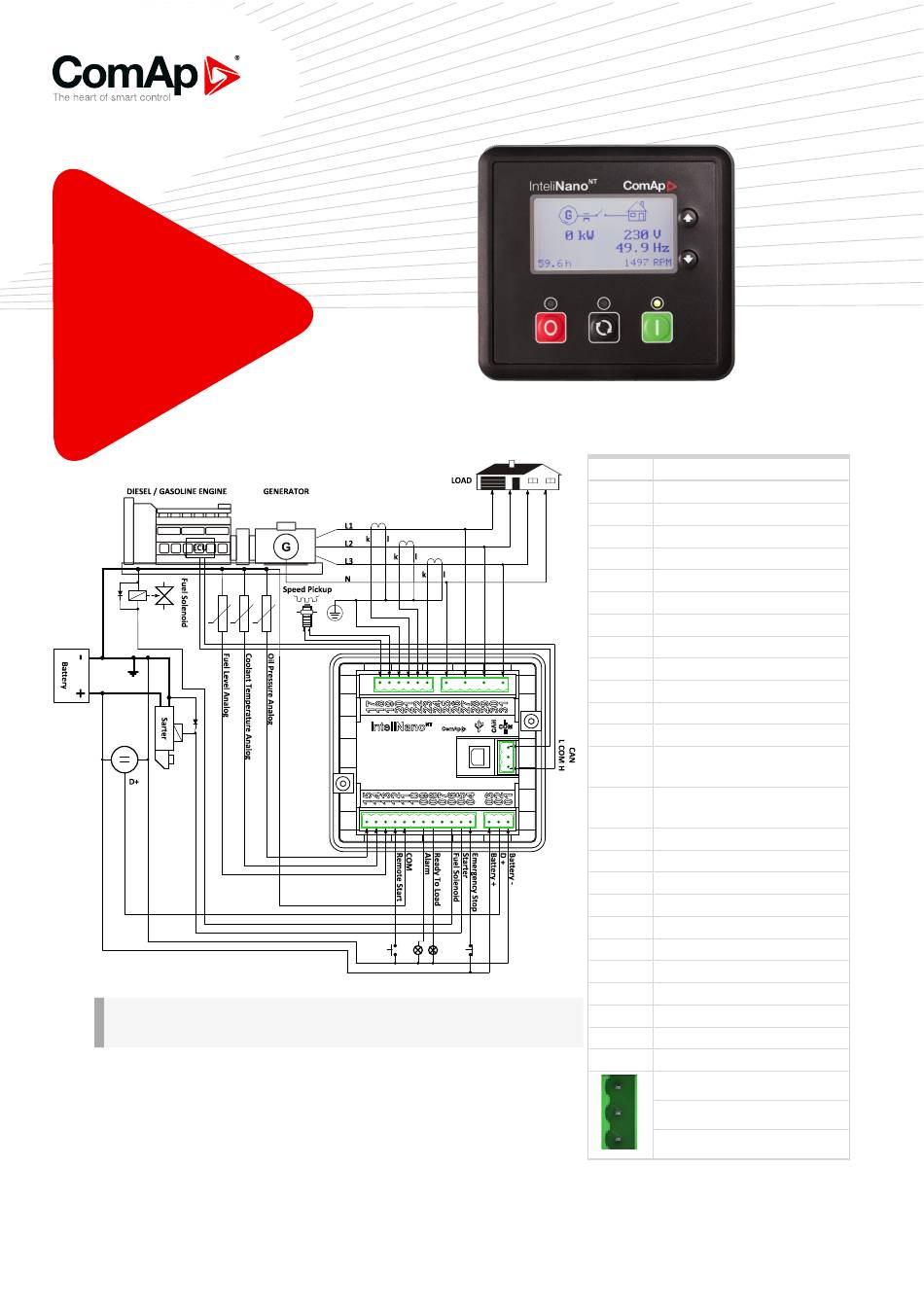

InteliNano NT MRS 3 Fast User Guide
Fast user guide
Terminal
Description
T01
BATT-
T02
D+
T03
BATT+
T04
Binary input – Emergency stop
T05
Binary output –Start (6A)
T06
Binary output – Fual Solenoid (6A)
T07
Binary output (500 mA)
T08
Binary input/output (500 nA)
T09
Binary output (500 mA)
T10
Binary output (500 mA)
T11
Com for nalog inputs binary input
T12
Binary input – Remote start
Binary/analog input –
T13
Low Fuel Level
Binary/analog input –
T14
Coolan Temperature
T15
Binary/analog input – Oil Pressure
T18
RPM
IN
T19
RPM
GND
T20
COM (I)
T21
Phase1 (k)
T22
Phase2 (k)
T23
Phase3 (k)
T25
Neutral
T27
Phase1
T29
Phase2
T31
Phase3
L
COM
H
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ComAp InteliNano MRS 3
Summary of Contents for ComAp InteliNano MRS 3
- Page 1 InteliNano MRS 3 Fast user guide Terminal Description BATT- BATT+ Binary input – Emergency stop Binary output –Start (6A) Binary output – Fual Solenoid (6A) Binary output (500 mA) Binary input/output (500 nA) Binary output (500 mA) Binary output (500 mA) Com for nalog inputs binary input Binary input –...
- Page 2 Accessing the setup mode START AUTO STOP Ensure the engine is stopped and the controller is in Manual mode (the green LED above button AUTO is turned off). If you have not configured the custom initialization (init) screen then press and hold STOP button, then briefly press up button and then AUTO...
- Page 3 Outputs and inputs Input settings Input code Input source Type Terminal assignment Not Used Binary T08, T12, T13, T14, T15 Emergency Stop Binary Remote Start/Stop Binary Remote Start And Load Binary Access Lock Binary T08, T12, T13, T14, T15 GCB Feedback Binary T08, T12, T13, T14, T15 External Warning 1...
- Page 4 Start on Low Battery GCB Fail Fuel Level SD Stop After Charging Cycle Generator Overvoltage For ECU configuration use PC software NanoEdit. For more details see InteliNano MRS 3 Reference Guide. Technical data Dimensions Operating temperature −20 to 70 °C...
