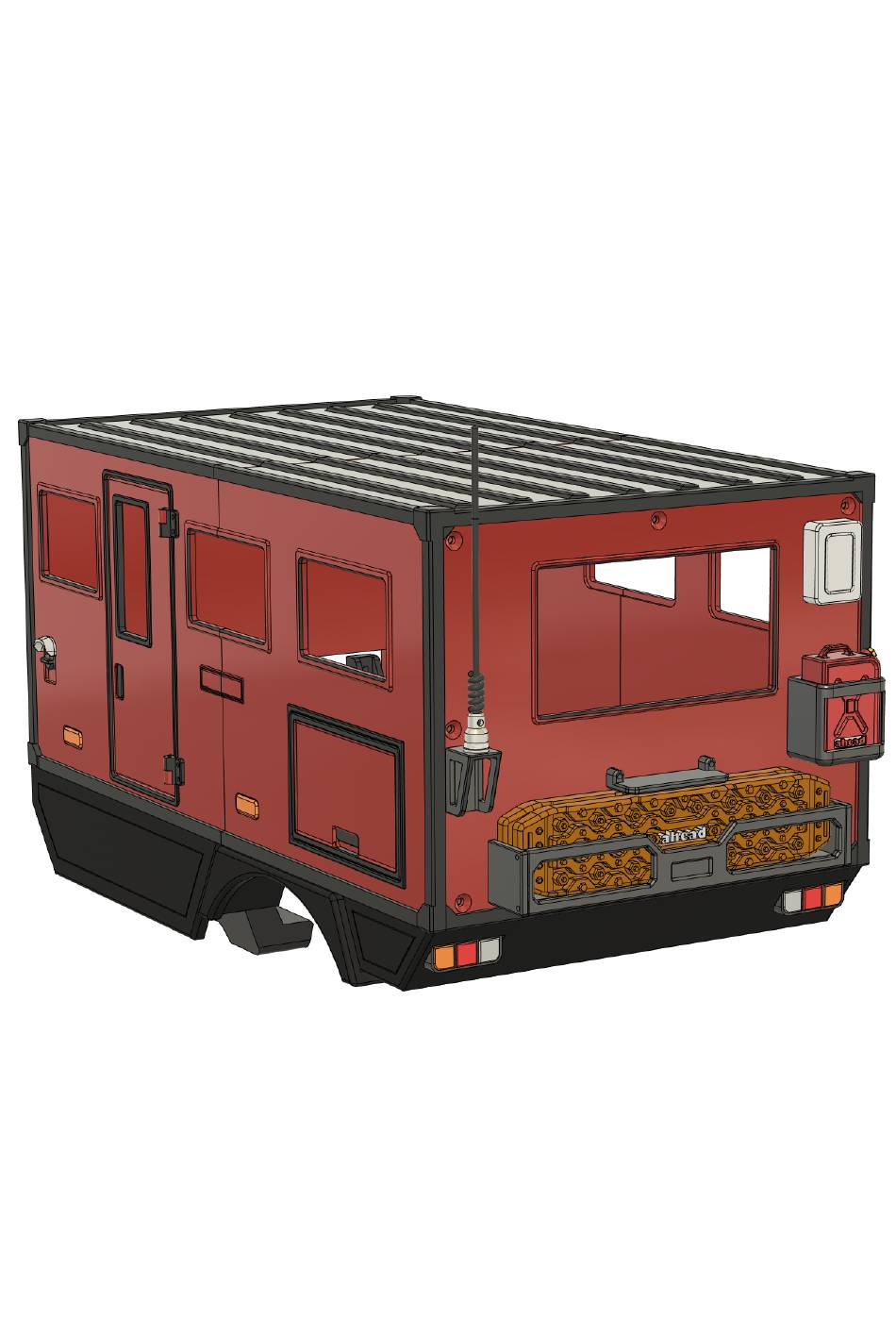

- Page 1 RC Crawler G90 4x4 Expedition Suite Assembly Manual ahead RC...
- Page 2 Required tools and hardware Tools 1.5mm Hex Driver 2.0mm Hex Driver 2.5mm Hex Driver Needle Nosed Pliers Instant Glue Hot Glue Electronics 5mm White LED x2 5mm Orange LED x2 5mm Red LED x2 3mm Orange LED x4 Hardware Hardware Quantity Check M2*5 Socket head M2*10 Socket head M2*12 Socket head M3*10 Socket head M3*15 Socket head M3*10 Countersunk (CS) M3*3 Grub screw (GS) ahead RC...
- Page 3 Before you begin Be sure to read through the manual and familiarise yourself with the instructions Visualise a plan to assemble all the pieces Make sure you have all of the hardware and tools Be sure to have enough instant glue Dry fit all parts before painting and assembling Tip: It will help to paint all of the parts before final assembly ahead RC...
- Page 4 Assembling the cab and door M3x10mm x5 M2x12mm x2 Repeat on the other hinge ahead RC...
- Page 5 Assembling the door and fenders M2x5mm x4 M3x10mm Repeat on the other fender ahead RC...
- Page 6 M3x15mm Repeat on the other side cover ahead RC...
- Page 7 Assembling the body mounts M3x15mm Repeat on the other body mount ahead RC...
- Page 8 Installing the lights Repeat on all 6 rear lenses M2x5mm Repeat on the other rear light 5mm White, Red, Orange LED x2 each ahead RC...
- Page 9 M3x10mm 3mm Orange LED x4 ahead RC...
- Page 10 Installing accessories and details M2x5mm Repeat on the other side ahead RC...
- Page 11 M3x3mm GS x1 M3x10mm M2x5mm ahead RC...
- Page 12 M2x10mm ahead RC...
- Page 13 M2x10mm ahead RC...
- Page 14 Installing the rear wall M3x10mm CS x7 ahead RC...
- Page 15 Installing the front wall M3x10mm CS x5 ahead RC...
- Page 16 Body is now fully complete. Thank you for selecting ahead RC products. If you have any questions or need help with the assembly, please do not hesitate to contact us at: aheadrc@gmail.com or visit us at: www.aheadrc.com Best of luck with your build! ahead RC...
