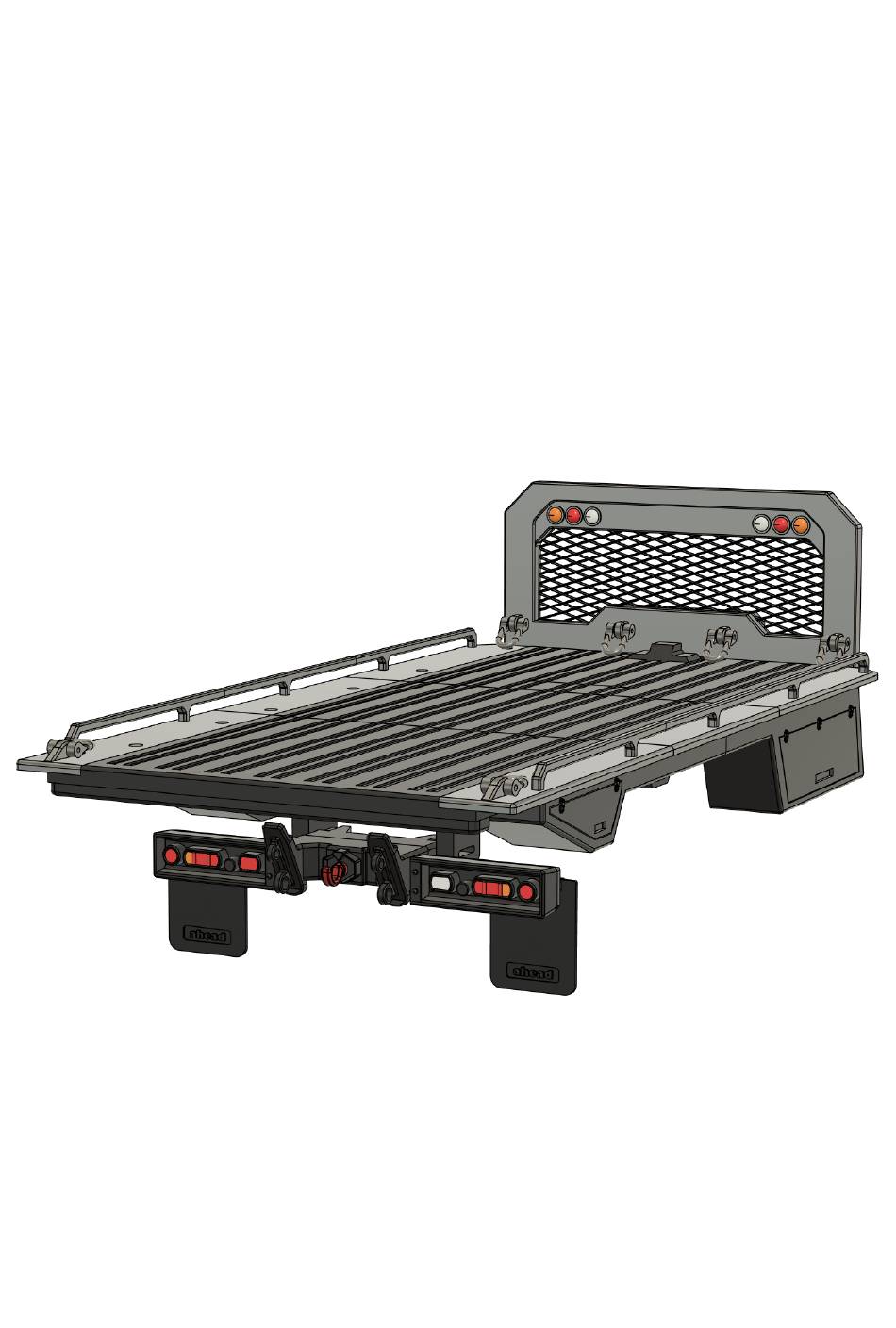

- Page 1 RC Crawler Cat 1 TRX6 Tow Bed Assembly Manual ahead RC...
-
Page 2: Required Tools And Hardware
Required tools and hardware Tools 1.5mm Hex Driver 2.0mm Hex Driver 2.5mm Hex Driver Needle Nosed Pliers Instant Glue Hot Glue Electronics 3mm Orange LED x4 3mm Red LED x9 3mm White LED x3 Hardware Hardware Quantity Check M2*8 Socket head M2*10 Socket head M3*10 Socket head M3*15 Socket head M3*20 Socket head M3*25 Socket head M3*5 Countersunk (CS) M3*10 Countersunk (CS) M3*15 Countersunk (CS) M3*10 Grub screw (GS) M3 Washer M3 Nut 12x4mm magnet (with countersunk hole) ahead RC... -
Page 3: Before You Begin
Before you begin Be sure to read through the manual and familiarise yourself with the instructions Visualise a plan to assemble all the pieces Make sure you have all of the hardware and tools Be sure to have enough instant glue Dry fit all parts before painting and assembling Tip: It will help to paint all of the parts before final assembly ahead RC... - Page 4 Installing the rear shock mounts Rear Front Use stock screws ahead RC...
- Page 5 Assembling the bed and headache rack M3x10mm x8 3 m m 3mm Red White Repeat on the 3mm other headache Orange lights M3x10mm Repeat on all 4 headache rack shackles M3x15mm x4 Remove rear inner fenders before installing shock mounts ahead RC...
- Page 6 M3x15mm CS x4 ahead RC...
- Page 7 Assembling the bed flares M3x10mm Repeat on the GS x4 other side M2x8mm ahead RC...
- Page 8 M3x15mm CS M3x5mm CS Repeat on the other side Repeat on the other side M3x15mm M2x8mm ahead RC...
- Page 9 Installing the mounts M3x15mm CS M3x10mm Repeat on the other front mount ahead RC...
- Page 10 ahead RC...
- Page 11 Mounting the bed, bumper and details Repeat on the other side To battery tray M3 washer x4 M3 washer x2 M3x25mm M3x20mm ahead RC...
- Page 12 ahead RC...
- Page 13 M3x15mm ahead RC...
- Page 14 Assembling and mounting the battery access hatch 12x4mm magnet x1 M3x10mm CS 12x4mm magnet x1 ahead RC...
- Page 15 ahead RC...
- Page 16 Body is now fully complete. Thank you for selecting ahead RC products. If you have any questions or need help with the assembly, please do not hesitate to contact us at: aheadrc@gmail.com or visit us at: www.aheadrc.com Best of luck with your build! ahead RC...
