Simplified MFG SP18CAT120 User Manual

18gbps hdmi 1×8 120m hdbaset splitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SP18CAT120
18Gbps HDMI 1×8 120m HDBaseT Splitter
VER 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP18CAT120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simplified MFG SP18CAT120

Summary of Contents for Simplified MFG SP18CAT120

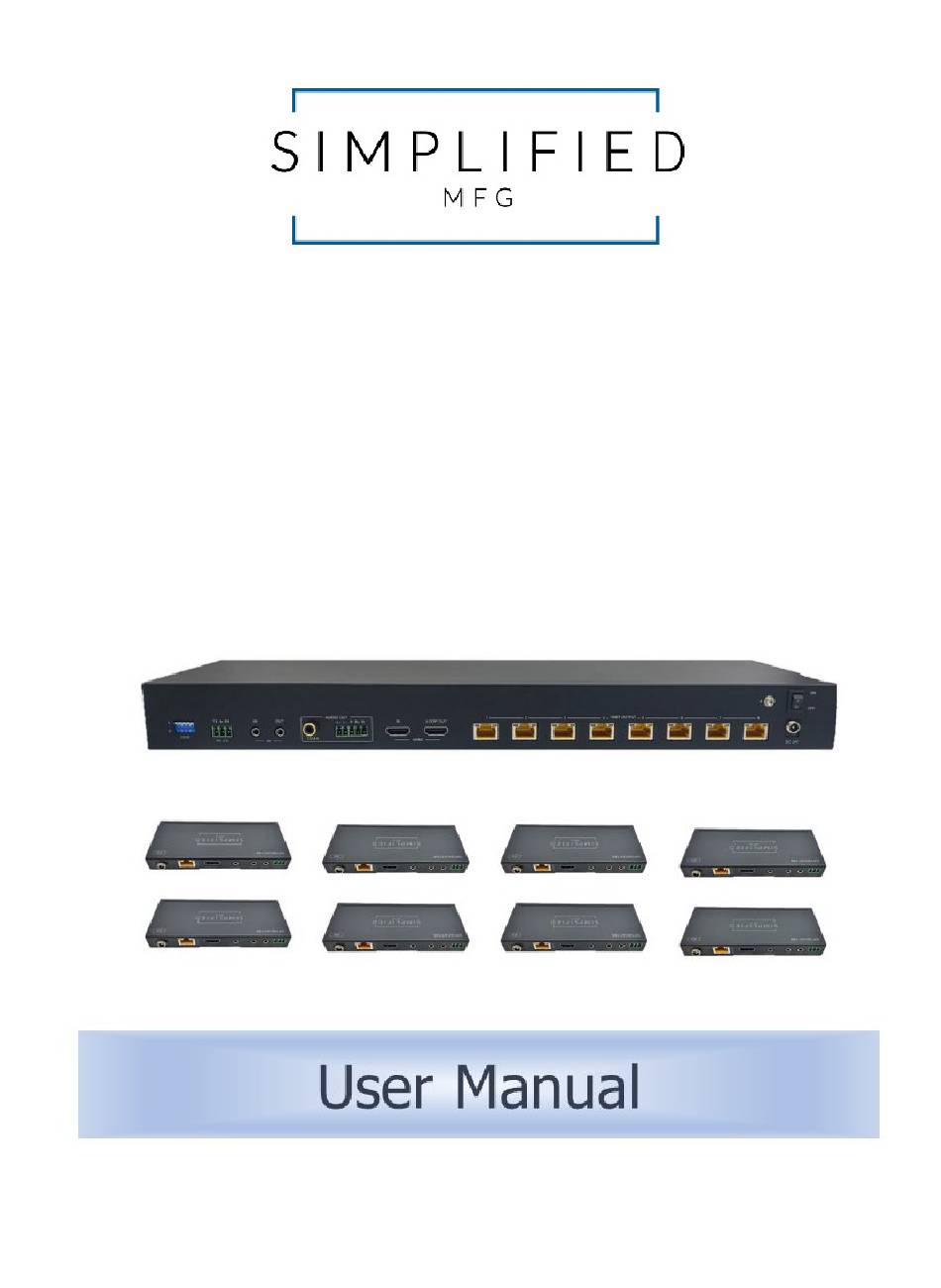

  • Page 1 SP18CAT120 18Gbps HDMI 1×8 120m HDBaseT Splitter VER 2.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this device The Simplified MFG SP18CAT120 was designed to provide years of reliable service. Please read this manual thoroughly before connecting, operating, or adjusting this device. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The SP18CAT120 HDMI 1x8 HDBaseT splitter can distribute 1 source signal to any 8 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit Color Depth (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Color Space Support HDR, HDR10+, HLG, DolbyVision™ LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby HDMI Audio Formats Digital+, Atmos, DTS-ES, DTS HD Master, DTS HD-HRA,...

  • Page 5: Operation Controls And Functions

    ❷ ❸ ❹ Name Function Description When the SP18CAT120 is powered on, the red power LED POWER LED will be illuminated When the HDMI IN port is connected to an active source IN LED device, the green LED will be illuminated...
  • Page 6 • Firmware update RS-232 • Control the SP18CAT120 via RS-232 commands • RS-232 signal pass-through (from transmitter to receiver or from receiver to transmitter) Connect to IR receiver cable, the IR signal will emit to “IR IR IN OUT”...

  • Page 7: Hdbaset Receiver

    5.2 HDBaseT Receiver ❶ ❷ ❸❺ ❹❻ ❼ ❽ ❾ ❿ ⓫ Name Function Description Power Indicator When the receiver is powered, this will illuminate SERVICE port Used for firmware update. Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet (Note: The HDBaseT receiver is DC 24V powered by the transmitter via a CAT cable.)

  • Page 8: Ir Pin Definition

    Connect to the IR blaster cable, the IR signal is from IR IR OUT IN port of the transmitter. 3-pin Phoenix connector for RS-232 command RS-232 transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.

  • Page 9: Edid Mode

    6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001...

  • Page 10: Ascii Commands

    7. ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below.
  • Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable hdmi loop out Set hdmi loop output stream stream on/off s hdmi stream 1 ! s hdmi stream z! enable Disable hdmi loop out z=0~1(0:disable,1:enable) stream Enable hdmi loop out Set hdmi loop output hdcp on/ hdcp enable...
  • Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~32 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
  • Page 13 Command Code Function Description Example Feedback Default Setting s edid user1 00 s edid user1 00 user1 EDID data: 00 Set user1 EDID data FF FF FF FF …! ff ff ff ff …. ! FF FF …. user1 EDID data : 00 FF FF FF FF FF FF r edid user1! Get user1 EDID data...

  • Page 14: Application Example

    8. Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -12-...

  • Page 15: Warranty And Contact

    A purchase receipt or other proof of purchase date is required for the limited warranty service. Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 ©Copyright Simplified MFG 2021 -13-...
