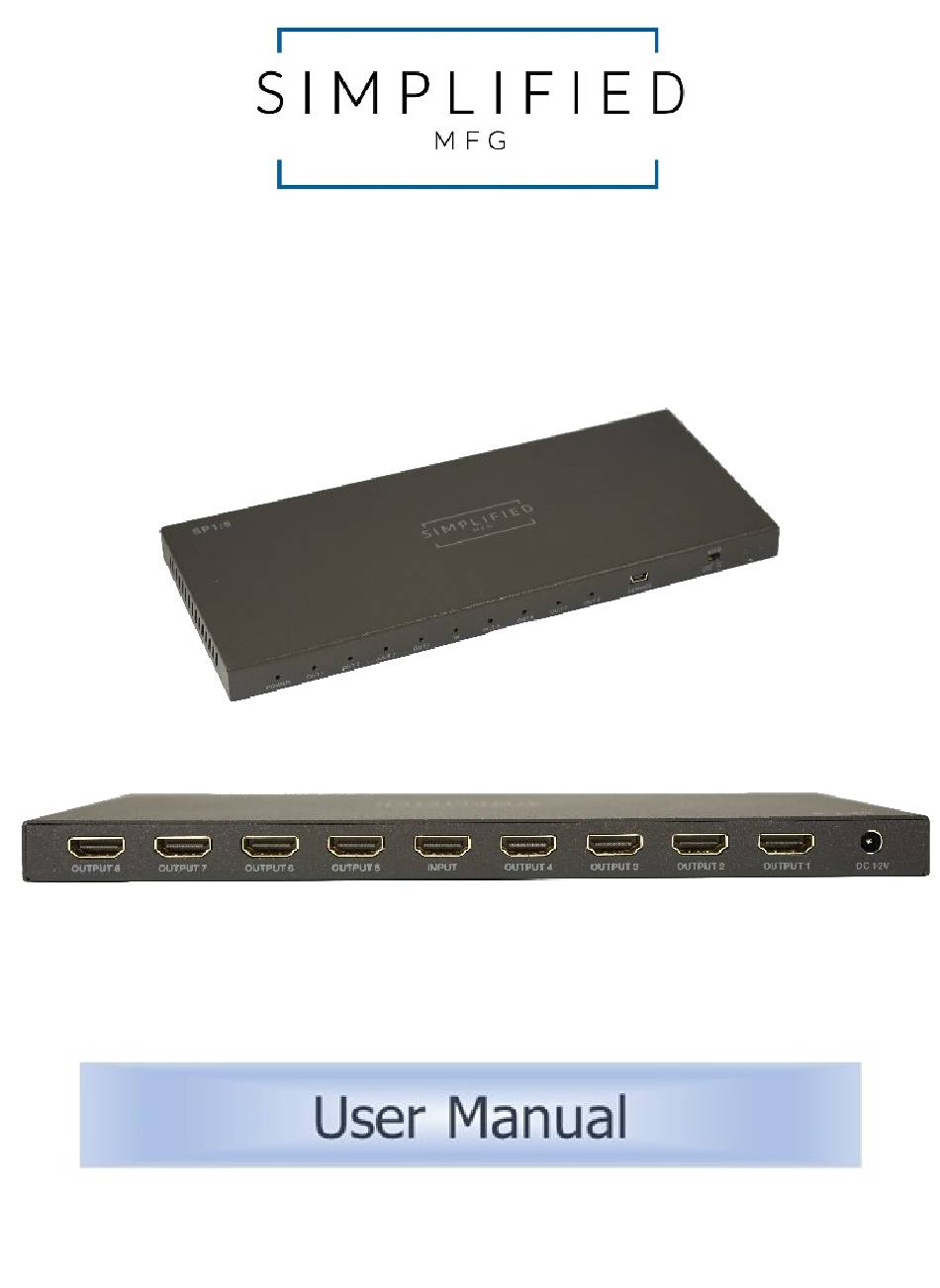

- Page 1 SP1:8 VER 2.0...
- Page 2 Thank you for purchasing this product The Simplified MFG SP1:8 designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ............3 2. Features ............3 3. Package Contents ..........3 4. Specifications ............ 4 5.Operation Controls and Functions ...... 6 5.1 Front Panel ..........6 5.2 Rear Panel ..........7 6. Application Example ......... 7 7. -
Page 4: Introduction
1. Introduction The SP1:8 is an 18Gbps HDMI2.0b splitter. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2/1.4. The EDID is automatically copied from output 1. It can also be overridden with a switch (STD) that will force the EDID to 1080p on all outputs. -
Page 5: Package Contents
3. Package Contents 1× HDMI 4K Ultra HD Splitter • 1x 12V/2.5A Power Supply • • 1x User manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions 720P50/60Hz,1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) Color Depth 8, 10, or 12bit (depends on source... - Page 6 Connections Input ports 1×HDMI Type A [19-pin female] Output ports 8×HDMI Type A [19-pin female] Mechanical Housing Metal Enclosure Color Black Dimensions 245mm (9.65”) [W] × 105mm (4.13”) [D] × 16mm (.63”) [H] Weight 630g / 22.25 oz. / 1lb. 6.25 oz. Power Supply Input: AC100~240V 50/60Hz, Output: DC12V/2.5A...
-
Page 7: Operation Controls And Functions
5.Operation Controls and Functions 5.1 Front Panel ❶ ❷ ❸ ❹ ❺❻ Name Function description This blue LED will illuminate when the POWER LED unit has connected power supply. This blue LED will illuminate when the HDMI INPUT HDMI IN has connected an active HDMI source device with a HDMI cable. -
Page 8: Rear Panel
5.2 Rear Panel ❶ ❷ ❶ ❸ Name Function description HDMI Connect to HDMI display device such as TV OUTPUT or monitor. HDMI HDMI input from source INPUT Connect 12VDC 2.5A power supply to this 12V INPUT connection 6. Application Example... -
Page 9: Warranty
(starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. -
Page 10: Contact
6. Contact Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2021... - Page 11 EDID, unless the “Std” switch is engaged and then it shows a 1080p EDID to the Source HDMI Source HDMI Source Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
- Page 12 Compliance HDCP HDCP 2.2/HDCP 1.4 Compliance Video Bandwidth (600MHz/18Gbps) The SP1:8 is a HDMI 2.0b (18Gbps) Video Up to 4K2K @50/60Hz. (YUV4:4:4), 4K 30Hz., & 1080p HDMI splitter device. The SP1:8 has Resolutions @ 60Hz. 1 HDMI Input and 8 HDMI Outputs.
