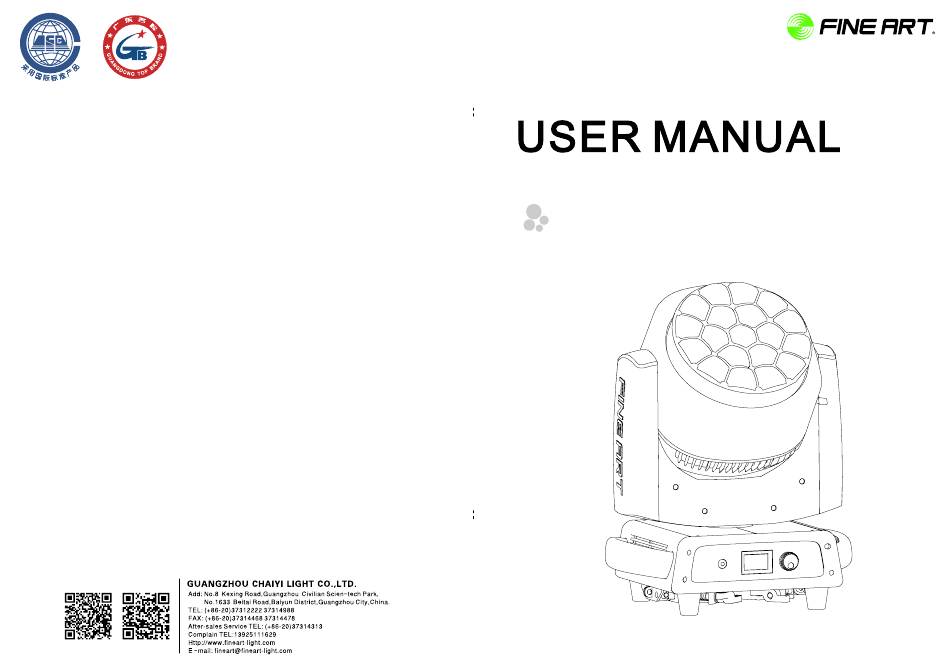

  • Page 1 FINE 4019 PIXIE PLUS FINE ART Website Product manual Read the user manual before installing or operating this product.

  • Page 2: Table Of Contents

    Contents P/N: 390712000115 Version: A 1.Technical Feature 2.Photometric diagram 3.Control channel 4.Operation chart for the display panel function 5.Control panel 5.1 Control panel introduction 5.2 Control panel Operation introduction 6.Routine maintenance 7.Safety information 8.Product Connection 8.1 Included items 8.2 Power Connection 8.3 Signal Connection Attached 1.

  • Page 3: Technical Feature

    Technical feature Technical feature FINE 4019 PIXIE PLUS LED Light source 40W 4 in1 LEDS Input voltage 100-240V~ 50/60Hz Input current Input power 900W Power factor PF≥0. 98 Beam angle 4°~60° Initial luminous flux Small angle: 5834.8 lm, Large angel: 12791 lm Efficiency...

  • Page 4: Photometric Diagram

    Photometric diagram FINE 4019 PIXIE PLUS (Min Angle) 38332 9582 4259 2396 1065 1533 R(lux) 80773 20193 8975 5048 3231 2244 G(lux) 18834 4709 2093 1177 B(lux) 140278 35069 15586 8767 3897 5611 W(lux) 246490 61622 29500 15406 6847 9860 Full(lux) 4°...

  • Page 5: Control Channel

    Control channel RBG RGBW SHAP Value Stnd Function Specific 0->255 Red Tuning Red fine 0->255 Red Fine Green 0->255 Green Tuning Green fine 0->255 Green Fine Blue 0->255 Blue Tuning Blue fine 0->255 Blue Fine White 0->255 White Tuning 0->255 White Fine White fine 0->3...
  • Page 6 Separate control on single Shape 22-> LED under stnd, RGB, RGBW mode 0->255 Selection >78 Shap mode control shap selection manual 0->63 Static shape 64->158 Speed from fast to slow Shape Speed 159->160 Stop 161->255 Speed from slow to fast no fade-in/out function 0->15 Shape Fade...

  • Page 7: Operation Chart For The Display Panel Function

    Operation chart for the display panel function Menu Item Options Notes(Default settings in bold print) Address 001-512 DMX address Setting Pan Invert Reverse DMX pan control ，R->L Normal DMX pan control ，L->R Tilt Invert Reverse DMX tilt control, D ->U Normal DMX tilt control ，U->D Specification Pan/Tilt Swap...
  • Page 8 000 ~ 255 Red Fine 000 ~ 255 Green 000 ~ 255 Green Fine 000 ~ 255 Blue 000 ~ 255 Blue Fine 000 ~ 255 White 000 ~ 255 White Fine 000 ~ 255 000 ~ 255 Color Macro 000 ~ 255 Strobe 000 ~ 255...
  • Page 9 0000~FFF0 Tilt 0000~FFF0 Zero setting and calibration Calibration deviations of ever y channel Zoom 0000~FFF0 Prism rotation 0000~FFF0 Exit Return to the last menu Receive01~ Display ever y DMX channel value received 000 ~ 255 Receive48 DMX VALUES Exit Return to the last menu Modify restriction of using times and 000 ~ 255 Code01~ Code16...
  • Page 10 Disconnect to wireless emiter Wireless Unlink Connect to wireless emitter Fixture Type F4019 Modify fixture type Personality Sleep Mode Sleep mode enabled Sleep mode disabled Error display Error display enabled Error display disabled Exit Return to the last menu Power On Time 0000~9999 Power on time inquir y（unit：hour) Lamp On Time...

  • Page 11: Control Panel

    The control panel 5.1 Control panel introduction 1.Exit button 2.LCD display 3.Function button(Enter) 4.DMX interface 5.Mains switch 6.Power in 7.Fuse Figure(5.1-1) 5.2 Control panel Operation introduction 1. Mains switch: It’s power off when turning the mains switch to “O”. And it's power on when turning the mains switch to “I”.

  • Page 12: Routine Maintenance

    Routine maintenance This fixture requires routine cleaning. The service life depends on the operating envir- onment heavily. Please kindly contact GUANGZHOU CHAIYI LIGHT CO., LTD for more maintenance information not included in this user’s manual. Notice: Excessive dust, smoke fluid and particulate buildup will degrade performance and cause over heating or damage to the fixture that is not covered by the warranty.

  • Page 13: Safety Information

    Safety information The following symbols are used to identify important safety information on the product and in this manual: Safety hazard. Refer to manual Hazardous Fire Burn hazard. Risk of Do not stare Risk of before installing, voltage. Risk of hazard.

  • Page 14: Product Connection

    Product Connection 8.1 Included items FINE 4019 PIXIE PLUS LED is packed with flight case.One single standard flight case carries two fixtures, Included items listed below (shown as table 8.1-1): Accessories UNIT User manual Warranty card Female plug Signal cable...
  • Page 15 DMX connection Note: The signal cable was type X connection. Type X connection—if the external flexible cable or cord of this fixture is damaged, it shall be replaced by a special cord or cord exclusively available from the manufact- urer or his service agent. 3-pin or 5pin XLR connecters are provided for fixture DMX input and output.
  • Page 16 Attached1: FINE 4019 PIXIE PLUS LED Wiring diagram LED Light board LED Light board Focusing Focusing A rotary motor 1 motor 2 motor driver board Motor transfer plate The LED panel Spin hall Focusing motor 3 Motor drive board X light...
