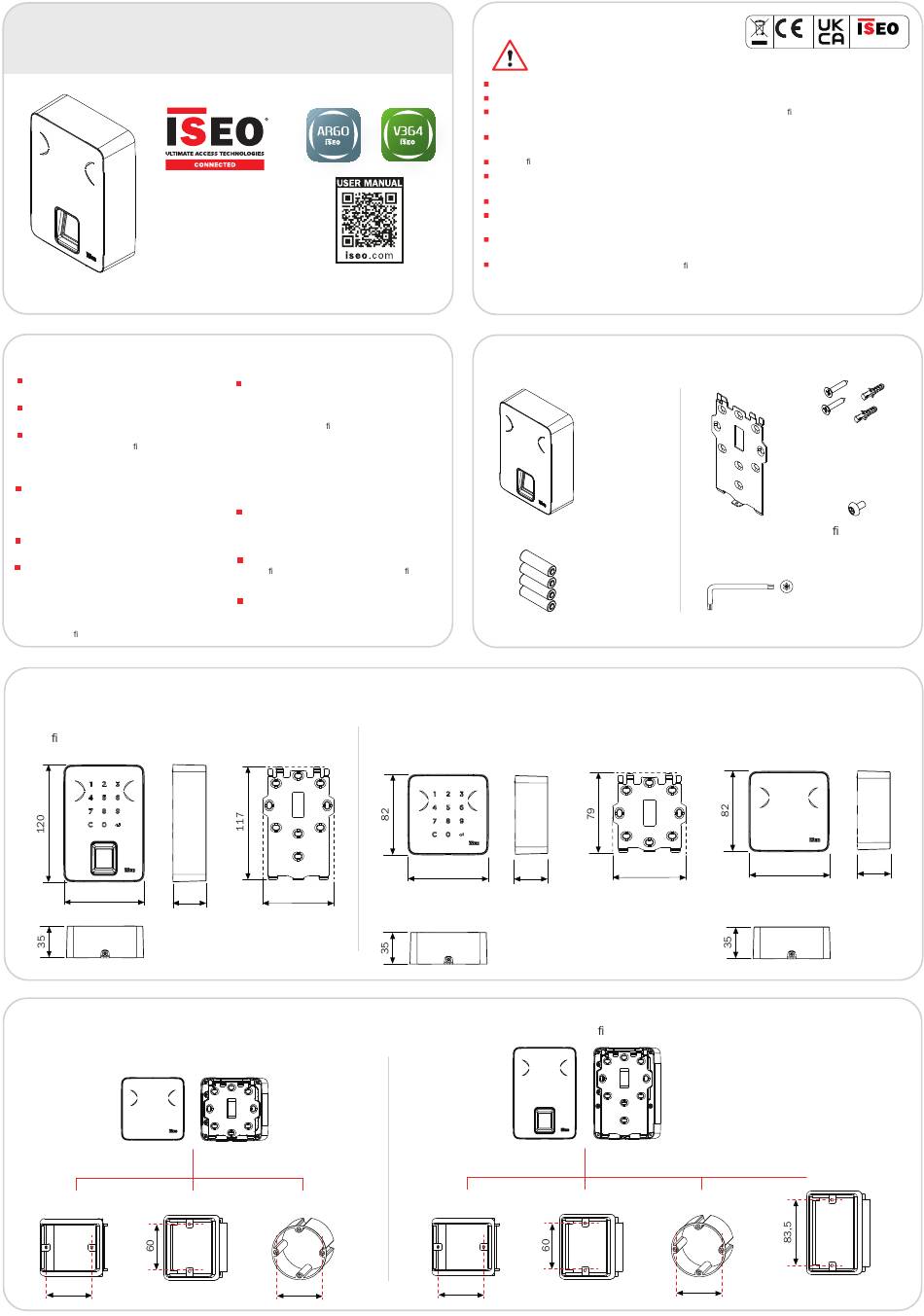

INSTALLATION GUIDE (EN)
Iseo Serrature s.p.a
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
Non contractual document. Subject to change. Cod. KW11100 - 12/04/2023
1NCA Cable Free Installation Guide (EN) - © 2023 Iseo Serrature S.p.a.

TECHNICAL DATA

PRODUCT:
1NCA Cable Free
APPLICATION:
To manage and open any ISEO Smart device
MODELS:
- Cable Free keyboard and ngerprint
- Cable Free keyboard
- Cable Free LED only
SOFTWARE COMPATIBILITY:
- ARGO System
- V364 System
- Integrators by SDK
POWER SUPPLY:
4 x Alkaline batteries 1,5V type AA
KEY FEATURES:
- 12 keys capacitive keyboard (keyboard models)
- Multi-color LED (green, red, yellow)
- Multifrequencies buzzer
- Automatic low power mode
- Modular design
- Multi-holes xing bracket
MODELS & DIMENSIONS
Cable Free RFID with keyboard and
ngerprint (art. 5E1511355)
82
35
COMPATIBILITY WITH RECESSED WALL BOX
Cable Free RFID with
keyboard or LED only
Vertical
Horizontal
60
COMMUNICATION INTERFACES:
- Bluetooth 5.0 - Frequency 2,40 - 2,4835 GHz
Maximum power: < 10 mW
- RFID reader frequency 13,553 - 13,567 MHz,
maximum magnetic eld: < 40 µA/m (measured
at 10m at the maximum power capacity).
Compatible to:
• ISO/IEC 14443 Type A and Type B cards
• MIFARE Classic & DESFire (EV1, EV2, EV3)
• ISEO Cards & Keyfobs (min.20mm antenna diam.)
• NFC (static UID required)
CERTIFICATIONS:
Compliance to RED, European and UK directives
concerning radio equipment regulations
IP Grade: IP66
HOUSING:
To be xed to the wall by the mulit-holes xing
bracket
OPERATING TEMPERATURES:
- Working temperature: -20°C/+55°C
- Storage temperature: -20°C/+70°C
- H.R.: Max. 95% with no condensing
Cable Free RFID with keyboard
Fixing bracket
74
Round
60

WARNINGS

Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation and maintanance of the device must be carried out by quali ed technical staff, adequately
trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modi cations of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a door lock
for residential, commercial and light industry locations. Any other use is considered improper and dangerous.
For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Remove the batteries before carrying out any technical service that involves opening or accessing
the internal parts of the product.
Dispose of the product and batteries separately from household waste, in accordance with local laws and
regulations.
Battery replacement must be carried out by quali ed technical staff. Replace all batteries at the same time.
Risk of explosion if the batteries are replaced with an incorrect type.

PACKAGE CONTENTS

Cable Free
4 x Alkaline
batteries
(art. 5E1511255)
82
35
Cable Free RFID with
keyboard and ngerprint
Vertical
Horizontal
60
EC Declarations of conformity available at:
https://www.iseo.com/it/en/download
Fixing bracket
Torx key 2,5x5
Cable Free RFID - LED only
(art. 5E1511155)
Fixing bracket
82
74
Round
60
ULTIMATE ACCESS
T E C H N O L O G I E S
2 x screws and
wall plugs
1 x xing bracket
Torx screw
(M2,5x5)
35
Vertical
Compatible to
Stylos
