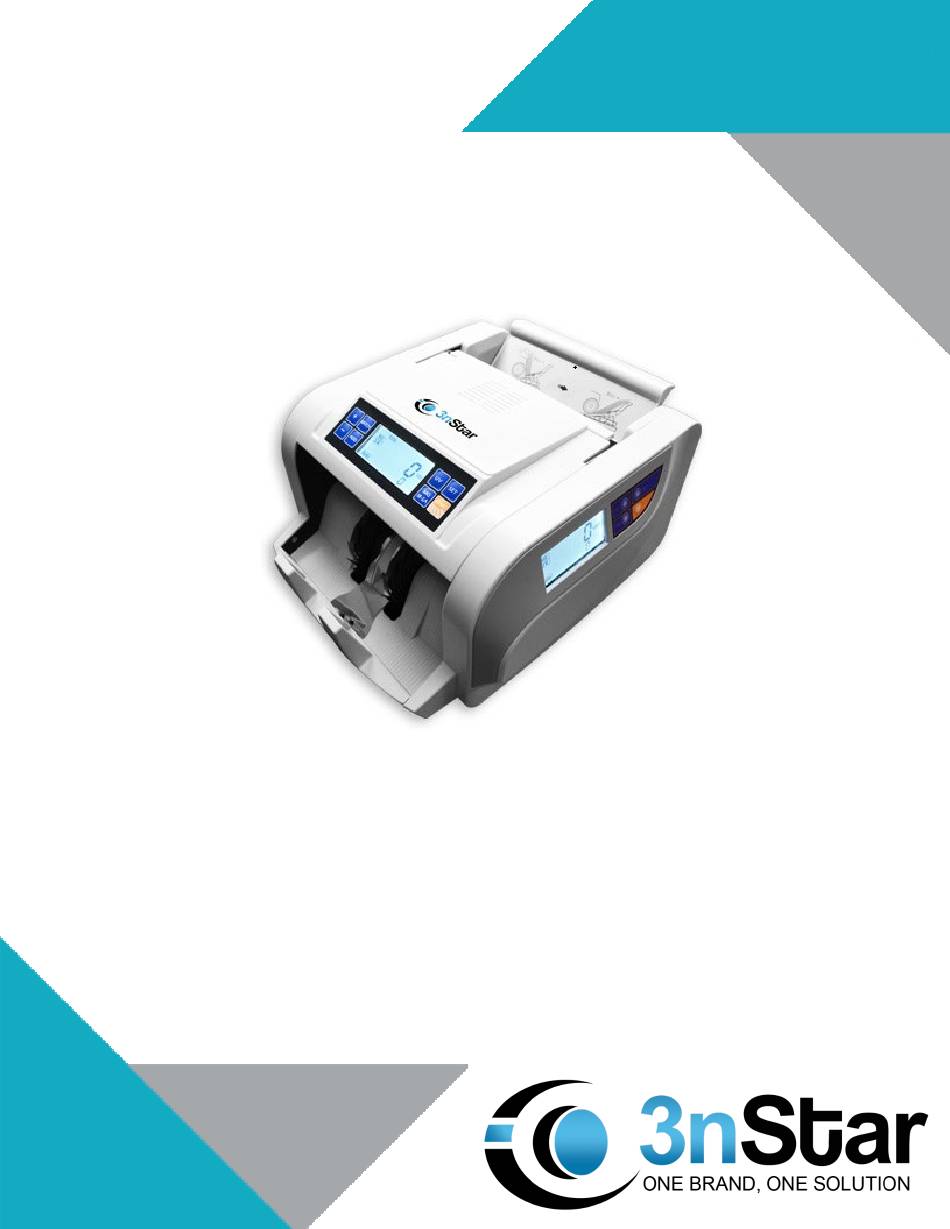

- Page 1 Bill Counter Technical Service Manual BC1005...
- Page 2 Table of Contents Error Code & Solutions ....................... 1 Self-Detection Codes ..........................1 E26 ............................... 1 E27 ............................... 1 E32 ............................... 2 E30 ............................... 2 E29 ............................... 2 Alarm Codes ............................2 E17 ............................... 2 E18 ............................... 2 E11 ............................... 2 E23 ...............................
- Page 3 Error Code & Solutions Self-Detection Problem Reason Solution E-26 Left Counting Sensor Page 1 E-27 Right Counting Sensor Page 1 E-32 Speed Sensor Page 1 E-30 Stacker Sensor Page 2 E-29 Hopper/Feeding Sensor Page 2 Alarm Codes Meaning E-17 UV Detection Page 2 E-18 MG Detection...
-
Page 4: Alarm Codes
1. Please check if speed sensor’s plug is well connected to the mainboard. 2. If it is well connected, please change the speed sensor with the normal sensor. 3. Check the disk and make sure it is not deformed. If it is deformed, please change the disk. 4. - Page 5 1. Make sure banknotes are in order when feeding. Do not tilt the banknotes. 2. Check feeding rollers, and make sure 3 rollers on the left & 3 rollers on the right have the same pulling power. 1. Check the alarmed note if the dimension is different. 1.
- Page 6 Software Version: Turn on the machine and the LCD display will show the software version. Setting Menu: Hold press SET 5~6 second to enter the SET program. 1. MG sensitivity adjustment. Increased sensitivity Decreased sensitivity...
- Page 7 2. Press SET again to enter UV sensitivity adjustment. Increased sensitivity Decreased sensitivity 3. Press SET again to enter IR sensitivity adjustment. Increased sensitivity Decreased sensitivity...
- Page 8 4. Press SET again to enter Size sensitivity adjustment. Increased sensitivity Decreased sensitivity 5. Press SET again to enter Voice ON and OFF (some models may differ). Turn On Turn Off...
- Page 9 6. Press SET again to turn ON or OFF Half note detection (may differ for certain models). Turn On Turn Off 7. Press SET again to set the alarmed note to be counted or ignored. Turn On (counted) Turn Off...
- Page 10 8. Press SET again to set batch mode to automatically count when the number is reached, and notes are taken from stacker or need to press Start button. Turn On (automatic) Turn off (press Start) 9. Press SET again to turn ON or OFF the batch qty whether it reached remind or not (if the switch is on the function, when batch qty is reached, the display will become red and remind you).
- Page 11 10. Press SET again to set breaking time during batch or stop. NOTE: Do not adjust (please contact factory in advance). Press + and - to set The bigger number the faster breaking time 11. Press SET again to set depth UV regulation (this is only suitable for NO.2 c and cannot solve UV note). The original alarm note is increased number because money cannot catch a decreased number.
- Page 12 12. Press SET again to set to factory default setting. Press SET for factory default setting...
