CLINTON INDUSTRIES 80100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

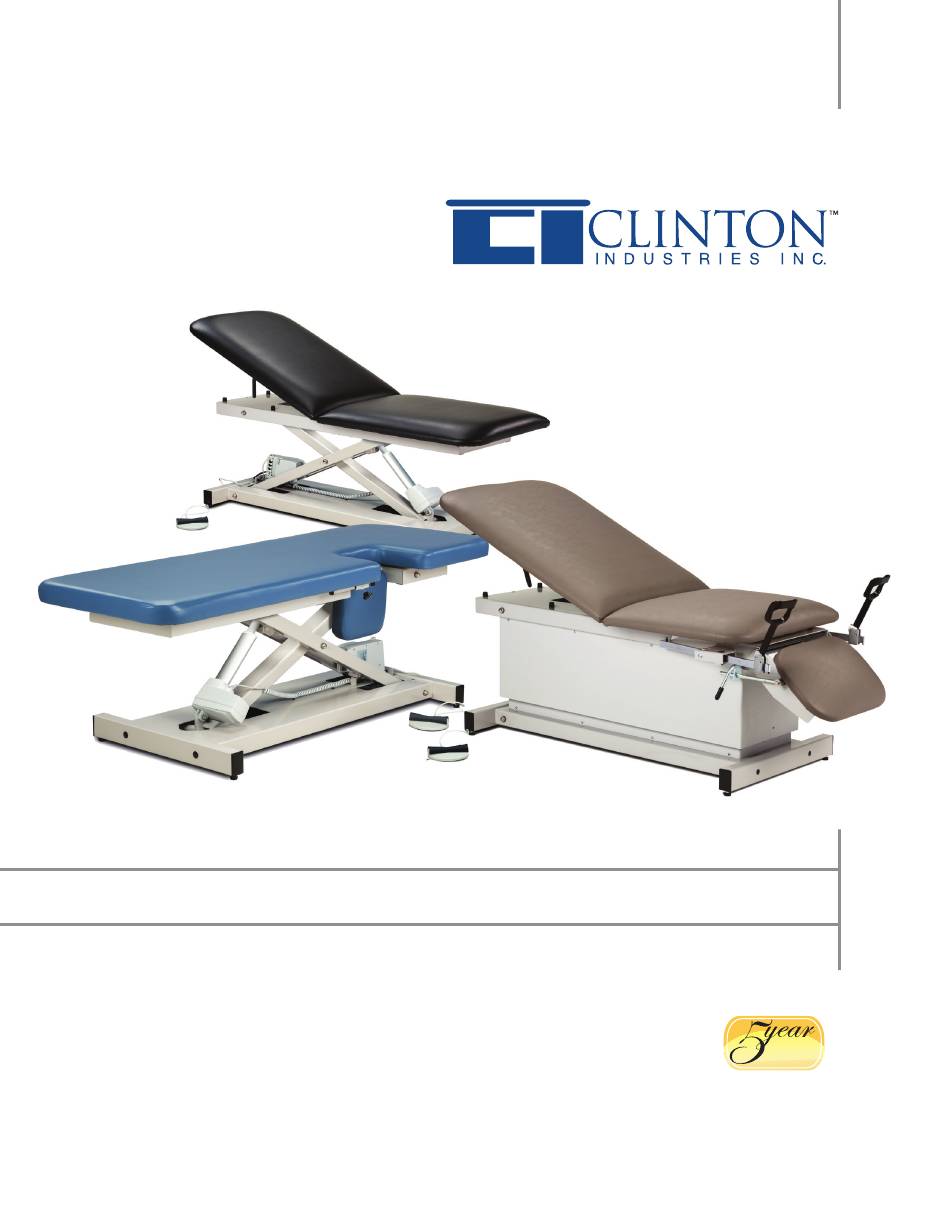

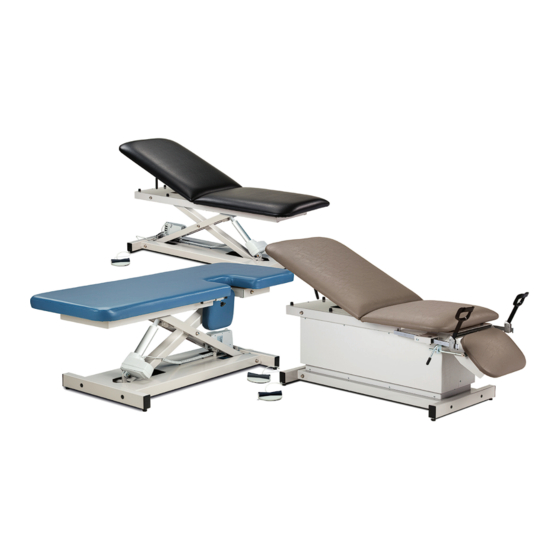

U S E R M A N U A L
OPEN BASE POWER TABLES
SHROUDED POWER TABLES
OPEN BASE IMAGING TABLES
Limited Warranty
ON FRAME &
ELECTRICAL
COMPONENTS
Limited
Warranty
CLI-MA-004
REV C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80100 and is the answer not in the manual?

Questions and answers

SSG Wagner
February 7, 2025

can caviwipes be used on the 80200?

0

Related Manuals for CLINTON INDUSTRIES 80100

Summary of Contents for CLINTON INDUSTRIES 80100

  • Page 1 U S E R M A N U A L OPEN BASE POWER TABLES SHROUDED POWER TABLES OPEN BASE IMAGING TABLES Limited Warranty ON FRAME & ELECTRICAL COMPONENTS Limited Warranty CLI-MA-004 REV C...
  • Page 2 In no event shall Clinton Industries’ liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, or its documentation or errors in its documentation.

  • Page 3: Table Of Contents

    CONTENTS Intended use ............................... 3 Symbols, Classification, Rating & Mode of Operation ................. 4 Important Safety Guidelines ........................5 Product Description ..........................6—18 Unpacking & Setup ..........................19 Cleaning ..............................20 Installation ..............................21 Operation ............................22—25 Periodic Visual Inspections ........................26 Warranty ..............................

  • Page 4: Intended Use

    (227 kg), or 600 lbs. (272 kg) for bariatric models. SERVICE If your Clinton Power Tables should fail operating for any reason, please call Clinton Industries for assistance in diagnosing the problem and having your equipment serviced, if necessary. Clinton Power Treatment Tables have no field serviceable parts. If failure occurs, unplug the table from the wall outlet and contact Clinton Industries, or your local Clinton distribution office.

  • Page 5: Symbols, Classification, Rating & Mode Of Operation

    SYMBOLS, CLASSIFICATION, RATING & MODE OF OPERATION SYMBOLS For safety purposes, please familiarize yourself with the following symbols and their meanings which appear through this manual. Operating Instructions Pay particular attention to Cautions and Warnings throughout this manual. Potentially hazardous and harmful situations to users, patients and property can occur if these cautions and warnings are ignored.

  • Page 6: Important Safety Guidelines

    Risk of Electrical Shock. Always connect these tables to a properly grounded 120V outlet. The power supply and controller contains no serviceable parts. If failure occurs, unplug the table from the wall outlet and contact Clinton Industries, or your local Clinton distribution office.

  • Page 7: Product Description

    PRODUCT DESCRIPTION: Open Base Power Tables 80100 SPECIFICATIONS Length 72" Width 27" Height Range 18" – 35" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings OPTIONS PARTS 030 Paper Dispenser A. Frame 040 Paper Cutter B.
  • Page 8 PRODUCT DESCRIPTION: Open Base Power Tables 80220 SPECIFICATIONS Length 76" Width 27" Height Range 18" – 35" Drop Section 13" x 27" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS OPTIONS A. Frame 030 Paper Dispenser B.
  • Page 9 PRODUCT DESCRIPTION: Open Base Power Tables 80350 SPECIFICATIONS Length 76" Width 27" Height Range 18" – 35" Leg Rest 13" x 26" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS OPTIONS A. Frame 030 Paper Dispenser B.
  • Page 10 PRODUCT DESCRIPTION: Open Base Power Tables 84100-34 SPECIFICATIONS Length 72" Width 34" Height Range 18" – 35" Drop Section 13" x 27" Load/Force Capacity 600 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS OPTIONS A. Frame 030 Paper Dispenser B.
  • Page 11 PRODUCT DESCRIPTION: Open Base Power Tables 84430-34 SPECIFICATIONS Length 76" Width 34" Height Range 18" – 35" Backrest 38" x 34" Drop Section 13" x 34" Load/Force Capacity 600 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS A.
  • Page 12 PRODUCT DESCRIPTION: Shrouded Power Tables 81100 SPECIFICATIONS Length 72" Width 27" Height Range 21" – 34" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS OPTIONS A. Frame 030 Paper Dispenser B. ABS Shroud 040 Paper Cutter C.
  • Page 13 PRODUCT DESCRIPTION: Shrouded Power Tables 81220 SPECIFICATIONS Length 76" Width 27" Height Range 21" – 34" Drop Section 13" x 27" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS A. Frame OPTIONS B. ABS Shroud 030 Paper Dispenser C.
  • Page 14 PRODUCT DESCRIPTION: Shrouded Power Tables 81350 SPECIFICATIONS Length 76" Width 27" Height Range 21" – 34" Leg Rest 13" x 26" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS A. Frame OPTIONS B. ABS Shroud 030 Paper Dispenser C.
  • Page 15 PRODUCT DESCRIPTION: Shrouded Power Tables 84108-34 SPECIFICATIONS Length 72" Width 34" Height Range 21" – 34" Drop Section 13" x 27" Load/Force Capacity 600 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS OPTIONS A. Frame 030 Paper Dispenser B.
  • Page 16 PRODUCT DESCRIPTION: Shrouded Power Tables 84438-34 SPECIFICATIONS Length 76" Width 34" Height Range 21" – 34" Backrest 38" x 34" Drop Section 13" x 34" Load/Force Capacity 600 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS A.
  • Page 17 PRODUCT DESCRIPTION: Open Base Power Imaging Tables 85100 SPECIFICATIONS Length 72" Width 27" Height Range 18" – 35" Drop Window 10" x 10" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V Safety Listings PARTS OPTIONS A. Frame 030 Paper Dispenser B.
  • Page 18 PRODUCT DESCRIPTION: Open Base Power Imaging Tables 85300 SPECIFICATIONS Length 76" Width 27" Height Range 18" – 35" Backrest 38" x 27" Drop Section 13" x 27" Drop Window 10" x 10" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V...
  • Page 19 PRODUCT DESCRIPTION: Open Base Power Imaging Table 85309 SPECIFICATIONS Length 76" Width 27" Height Range 21" – 34" Backrest 38" x 27" Drop Section 13" x 19" Drop Window 10" x 10" Load/Force Capacity 500 lbs. Upholstery knit-backed vinyl Warranty 5-year limited Voltage 120V...

  • Page 20: Unpacking & Setup

    Clinton uses every packaging option available to insure that equipment arrives at its destination in factory condition, however, Clinton Industries has no control over third party handling once it leaves our facilities. Report any visible damage to Clinton and the shipping carrier immediately.

  • Page 21: Cleaning

    CLEANING CLEAN BEFORE USING (All Models) It is important to thoroughly clean tables according to facility standards before it is put into service. See cleaning suggestions below. WARNING Make certain that the power table's power cord is disconnected from the outlet before cleaning with any liquid.

  • Page 22: Installation

    INSTALLATION All Clinton Power Tables are shipped fully assembled. Simply plug the power cord into a grounded (three-prong) 120V outlet and your power table is ready for operation. Make certain the power cord is readily accessible, if the table needs to be disconnected for any reason. Power cord and foot control should be located where they will not present a tripping hazard.

  • Page 23: Operation

    OPERATION OPERATOR/PATIENT/OTHERS POSITIONING (All Models) The operator’s position should be standing within a close proximity to the patient with a full view of both the patient and the immediate area surrounding the table. The patient should be sitting or lying on the table’s surface with the backrest either in the inclined or prone position. Others, located in the area, should be clear of the table during operation.
  • Page 24 OPERATION ADJUSTABLE BACKREST (Models 80200, 80330, 80350, 80360, 81200, 81330, 81350, 81360, 84200-34, 84200-40, 84208-34, 84208-40, 84430-34. 84430-40, 84438-34, 84438-40, 85200, 85300 & 85309 If the table is equipped with an adjustable backrest with a pneumatic cylinder, the angle of the backrest is controlled from either side of the table by an actuator.
  • Page 25 OPERATION STIRRUPS (Models 80360, 81360 & 85309) Stirrups are shown in the stored position in photo below at left. When extended, stirrups have two width positions. Position 1 is the narrowest and Position 2 the widest. The length of the stirrups can be adjusted by moving the stirrup slider to the desired location.
  • Page 26 OPERATION (All Models) OPTIONAL LOCKING CASTERS Locking casters are an option on all models. The locking mechanism can be engaged by using your foot to depressing the tab located at the rear of each caster. This action locks the swivel of the caster and acts as a brake to minimize movement of the wheel.

  • Page 27: Periodic Visual Inspections

    PERIODIC VISUAL INSPECTIONS PERIODIC MONTHLY INSPECTION • Inspect all electrical cords and connections for damage or wear. • Check that all fasteners are in place and securely fastened. • Make certain that the hi-lo function of the table is in proper working condition. •...

  • Page 28: Warranty

    Clinton Industries located at 525 East Market St, York, PA, 17403. If replacement parts are deemed necessary by Clinton Industries within (1) one year of the purchase date, all new parts and shipping will be covered by Clinton Industries. Thereafter in warranted years (2) two through (5) five, all shipping charges of replacement parts or replacement product (at our discretion) covered under this warranty will be the responsibility of the purchaser.

  • Page 29: Model & Serial Number

    MODEL & SERIAL NUMBER Model Number and Serial Number are located on the leg on the foot end of the table York, PA 17403 • 800-441-9131 120VAC 60Hz 5.0 AMPS MAX Duty Cycle: 10% (2min on / 18 min off ) at Max 5A IPX4 SERIAL # MODEL #...

  • Page 30: Specifications/Products

    SPECIFICATIONS Motor Specifications—All Models Clinton Industries Power Treatment Tables use motors and power supplies that meet UL 60601-1, IEC 6060-1 3rd ED, and CAN/CSA C22.2 601.1. 120VAC, 60Hz Duty cycle: 10% (2 min on / 18 min off) at Max 5A The power supply cord with mains plug is used as the primary means of disconnect to isolate the Power Treatment Table from supply mains.
  • Page 31 SPECIFICATIONS Models: 80220, 80330, 80350 & 80360 Table Weight ......................280 lbs. Max (127 kg) Total Load Capacity (including force) ................500 lbs. (227 kg) Overall Length ........................... 76" Overall Width ............................ 27" Height Range ...........................18" to 35" Backrest (Models 80330, 80350 and 80360) Length ...............................
  • Page 32 SPECIFICATIONS Models: 84100-34, 84100-40 & 84200-34, 84200-40 Table Weight ......................280 lbs. Max (127 kg) Total Load Capacity (including force) ................600 lbs. (272 kg) Overall Length ..........................72" Overall Width(s) ........................34" & 40" Height Range .......................... 21" to 34" Backrest (Model 84200-34 &...
  • Page 33 SPECIFICATIONS Models: 84430-34 & 84430-40 Table Weight ......................280 lbs. Max (127 kg) Total Load Capacity (including force) ................600 lbs. (272 kg) Overall Length ..........................76" Overall Width ........................... 27" Height Range .......................... 21" to 34" Backrest Length .............................. 38" Width .............................
  • Page 34 SPECIFICATIONS Models: 85100 & 85200 Table Weight ......................280 lbs. Max (127 kg) Total Load Capacity (including force) ................500 lbs. (249 kg) (249 kg) Overall Length ..........................72" Overall Width ..........................27" Height Range ......................... 18" to 35" Backrest (Model 85200) Length .............................

  • Page 35: Emc Compliance & Manufacturer's Declarations

    EMC COMPLIANCE & MANUFACTURER’S DECLARATION EMC Compliance COMPLIANCE STATEMENTS Electromagnetic Compatibility (EMC) Power Treatment Tables has been tested and found to comply with the electromagnetic compatibility (EMC) limits for medical devices to IEC 60601-1-2. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation.
  • Page 36 IEC 61000-3-3 The Patient Table is suitable for use in all establishments, other than domestic, and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes EMC COMPLIANCE & MANUFACTURER’S DECLARATION Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The Power Treatment Tables is intended for use in the electromagnetic environment specified below.
  • Page 37 EMC COMPLIANCE & MANUFACTURER’S DECLARATION Guidance and Manufacturer’s Declaration – Electromagnetic Immunity Non life supporting ME Equipment The Power Treatment Tables is intended for use in the electromagnetic environment specified below. The customer or the user of the Power Treatment Tables should assure that it is used in such an environment. Immunity Test Electromagnetic Environment –...
  • Page 38 Recommended separation distances between portable and mobile RF communications EMC COMPLIANCE & MANUFACTURER’S DECLARATION equipment and the Power Treatment Tables Non life supporting ME Equipment The Power Treatment Tables is intended for use in an electromagnetic environment in which radiated RF disturbances are Recommended separation distances between portable and mobile RF communications controlled.

  • Page 39: Notes

    NOTES...

  • Page 40: Contact Information

    York, Pennsylvania 17403 800-441-9131 • 717-848-3519 Toll-Free Fax 866-522-1233 Fax 717-843-5871 www.clinton-ind.com 5005889 Conforms to AAMI STD. ES60601-1 & IEC . 60601-1-6 & 62366 Certified to CSA STD. C22.2 # 60601-1 Printed in the USA © Copyright 2017, Clinton Industries, Inc.
