Onkyo TA-6210 Service Manual

TA-6210 |
Ref. No. 3512

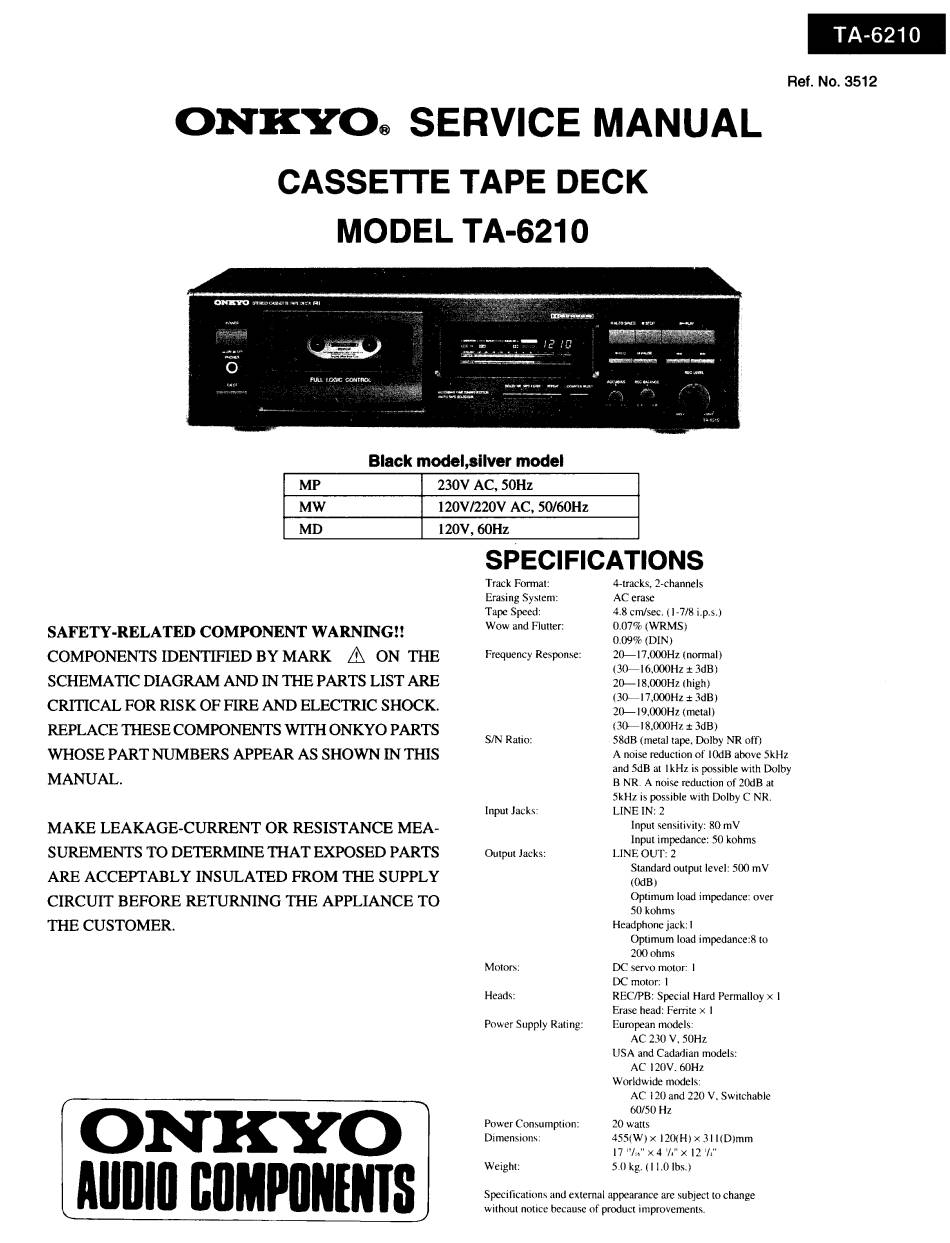

ONKYO. SERVICE MANUAL

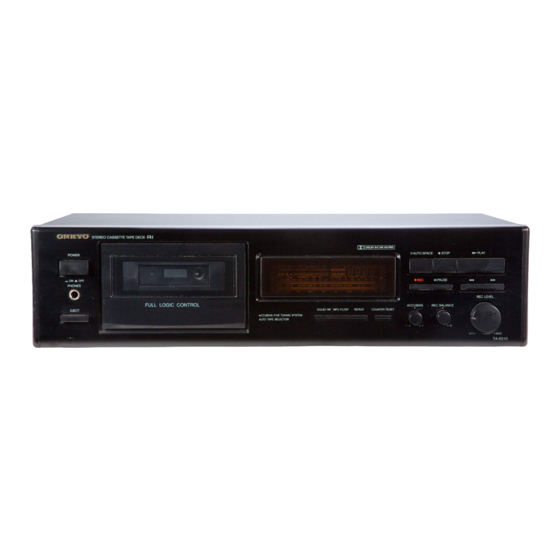

CASSETTE TAPE DECK
MODEL TA-6210
Black model,silver model
| MP | -230V AC, 50Hz
120V/220V AC, 50/60Hz
| MD | 120V, 60Hz
SPECIFICATIONS
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK /\ ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
ONKYO
AUDIO COMPONENTS
Track Format:
Erasing System:
Tape Speed:
Wow and Flutter:
Frequency Response:
S/N Ratio:
Input Jacks:
Output Jacks:
Motors:
Heads:
Power Supply Rating:
Power Consumption:
Dimensions:
Weight:
4-tracks, 2-channels
AC erase
4.8 cm/sec. (1-7/8 i.p.s.)
0.07% (WRMS)
0.09% (DIN)
20—17,000Hz (normal)
(30—16,000Hz + 3dB)
20—18,000Hz (high)
(30—17,000Hz + 3dB)
20— 19,000Hz (metal)
(30—18,000Hz + 3dB)
58dB (metal tape, Dolby NR off)
A noise reduction of 10dB above 5kHz
and 5dB at IkHz is possible with Dolby
B NR. A noise reduction of 20dB at
5kHz 1s possible with Dolby C NR.
LINE IN: 2
Input sensitivity: 80 mV
Input impedance: 50 kohms
LINE OUT: 2
Standard output level: 500 mV
(OdB)
Optimum load impedance: over
50 kohms
Headphone jack: |
Optimum load impedance:8 to
200 ohms
DC servo moter: |
DC motor: |
REC/PB: Special Hard Permalloy x |
Erase head: Ferrite x |
European models:
AC 230 V, 50Hz
USA and Cadadian models:
AC 120V. 60Hz
Worldwide models:
AC 120 and 220 V, Switchable
60/50 Hz
20 watts
455(W) x 120(H) x 311¢D)mm
V7 hie" & 4 Ys" & 12 1/4"
5.0 kg. (11.0 Ibs.)
Specifications and external appearance are subject to change
without notice because of product improvements.
