Safety information
WARNING:
•
Only install and use this product in accordance with applicable electrical codes and regulations
in your region.
•
The device is suitable for outdoor and damp locations. However, you should not immerse the
device in water.
•
Install the device above ground level at a minimum of 4.7 ft or 1.4 m with the outlets facing
downwards when outdoors.
•
The total current limit of the device is 15 Amps. To prevent damage, do not exceed the 15 Amps
limit. A direct short on the output may cause the device to malfunction.
•
Do not attempt to disassemble or repair the product yourself. Doing so may result in electric
shock and will void the limited warranty. If you require assistance, contact our after-sales
services.
•
IP65 protection can only be achieved when the rubber cover blocks the outlets.
•
Ensure that the plugs are completely inserted into the socket without any metal prongs
exposed.
•
Ensure that each socket is covered when not in use. To properly use the rubber cover, turn the
IQ Outdoor Plug-PG with the sockets facing up and press firmly on the rubber covers.
•
Make sure to use this product together with a 15A circuit breaker.

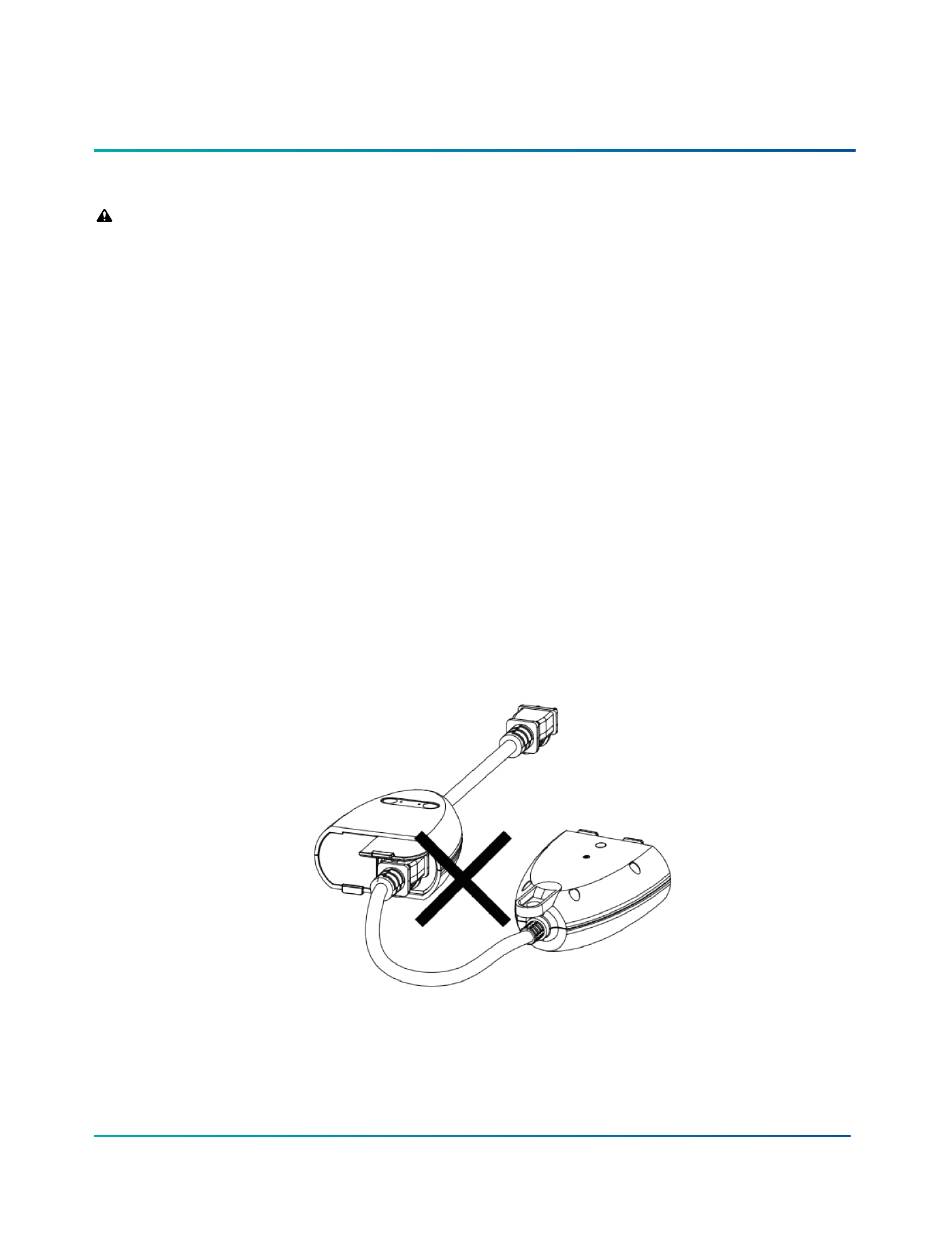

• Figure 1: Do not plug smart devices into each other
D-308966 Rev 00
IQ Outdoor Plug-PG Installation Guide
D-308966 IQ Outdoor Plug-PG Install Guide
*D-308966*
D-308966
Advertisement
Table of Contents
Related Manuals for QOLSYS IQ Outdoor Plug-PG
Summary of Contents for QOLSYS IQ Outdoor Plug-PG
- Page 1 • Ensure that each socket is covered when not in use. To properly use the rubber cover, turn the IQ Outdoor Plug-PG with the sockets facing up and press firmly on the rubber covers. • Make sure to use this product together with a 15A circuit breaker.
- Page 2 Overview With the IQ Outdoor Plug-PG you can control your devices remotely through your control panel. For panels that are compatible with the IQ Outdoor Plug-PG, see https://bit.ly/3CO71g8. Table 1: Overview Callout Description Function LED power buttons Press the left or right button to turn the corresponding socket on or off as required.
- Page 3 If the connection fails, a not enrolled status indicates on the control panel. • The IQ Outdoor Plug-PG enrolls as 2 devices that are individually controlled. Checking the PowerG signal strength of the device Ensure that the IQ Outdoor Plug-PG is powered on.
- Page 4 5 minutes. Resetting the device To reset the IQ Outdoor Plug-PG to factory default complete the following steps: Press and hold both buttons until the LED turns orange for 2 seconds. Release both buttons and then press and hold again for 5 seconds.
- Page 5 • Perform a factory reset on the IQ Outdoor Plug-PG. Delete the IQ Outdoor Plug-PG from the IQ panel and re-enroll it. The IQ Outdoor Plug-PG is not working with certain devices • Check if the device you want to control is compatible with the IQ Outdoor Plug-PG.
- Page 6 (DSC.) could void the user’s authority to operate the equipment. UL/ULC notes The IQ Outdoor Plug-PG has been listed by ETL for home automation applications in accordance with the requirements in the Standards UL 60730-1 Automatic Electrical Controls. For UL/ ULC installations use this device only in conjunction with compatible wireless receivers: Qolsys IQ4, IQ4 Hub.
- Page 7 Limited Warranty and EULA To access Warranty and EULA information, access the following link: https://bit.ly/3CO71g8 or scan the following QR code: Technical support Intrusion Tech support: +1- 855-476-5797 #2 or 1-800-387-3630 IQ Outdoor Plug-PG Installation Guide D-308966 IQ Outdoor Plug-PG Install Guide...
- Page 8 ©2023 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and DSC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. www.johnsoncontrols.com D-308966 IQ Outdoor Plug-PG Install Guide...
