QOLSYS QS1605-840 Quick Install Manual

IQ DOORBELL ADAPTER QUICK INSTALL GUIDE

OVERVIEW

The IQ Doorbell Adapter is a great add-on device for automating simple actions. For
example, taking a video or turning on a light when someone presses your doorbell, and
sending you a text message or email alert! The IQ Doorbell Adapter wires effortlessly into
an existing door bell using the included pre striped leads.

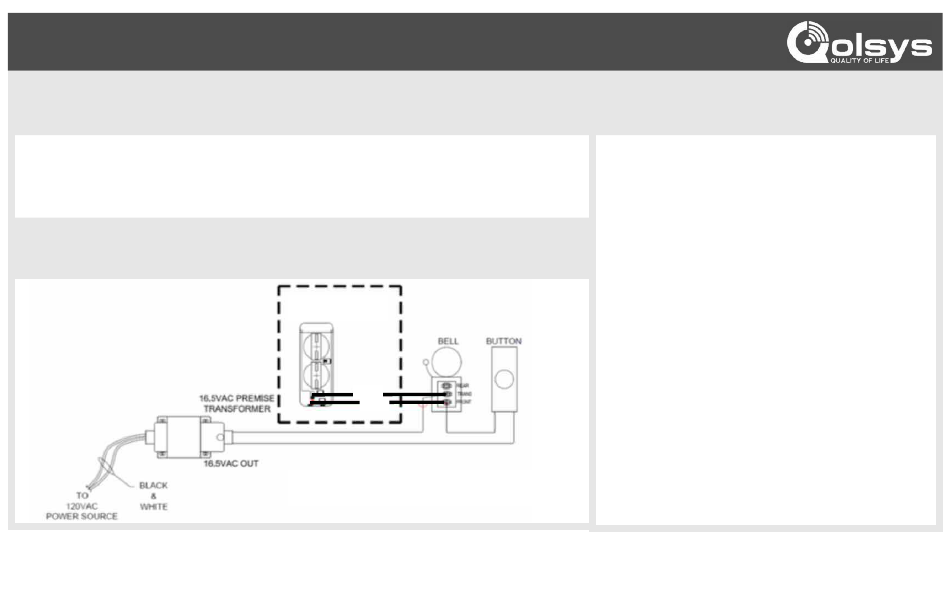

WIRING DIAGRAM

This is a quick guide for experienced installers only. For a detailed installation manual refer to the documentation found on
the "Documentation" tab on http://dealers.qolsys.com (login required, request access at PortalAccess@Qolsys.com)
TRANS
FRONT

SPECIFICATIONS

Sensor: 3.25""H x 1.3"W x 1"D
Wireless signal range: 600ft (200M), open air.
Code outputs: tamper, tamper restore, alarm, alarm
restore, low battery.
Transmitter frequency: 319.5 MHz
Unique code ID
Supervisory keep-alive interval: 70 minutes.
RF Peak field strength: typical 36000 uV/m at 3m
Operating Temperature: -10C~50C
Relative Humidity: 5-95% Non-Condensing
Storage Temperature: -40-80C
Replace battery with exact replacement every 5 years
with 3V Lithium (x2).
(2) -Panasonic CR2032
-Energizer CR2032
-Duracell DL2032
