Cembre BCB1-W Operation And Maintenance Manual

WIRELESS CHARGING PAD
PANNELLO DI CARICA WIRELESS
BCB1-W BCB1-WA BCB1-WE
BCB2-W BCB2-WA BCB2-WE
EN
OPERATION AND MAINTENANCE MANUAL
Before using the device, carefully read the instructions
contained in this manual.
SAVE THESE INSTRUCTIONS: this manual contains
important safety and operating instructions.
Magnet can erase data storage devices.
Only for internal use.
1. Technical specifications:
Type
USB INPUT 5 V
Wireless OUTPUT
USB OUTPUT
Operating temperature
Protection class
Impact resistance
Ingress protection
Weight
Battery charger (*)
(*) fitted with type: EU (BCB...-W) US (BCB...-WA) UK (BCB...-WE)
BCB1-W... BCB2
-W...
1.2 A max. 5 V 2.2 A max.
5 V 5 W 5 V
5 V 1 A
- 10°C ~ + 40°C
III
IK 07
IP 20
190 g 270 g
input 100 - 240 V 50/60 Hz
2. Proper intended use
The wireless charging pads are intended for use only with
Cembre CBLIGHT series wireless LED lamps, any other type of
use is prohibited.
The charging pads are only suitable for indoor charging ap-
plications.

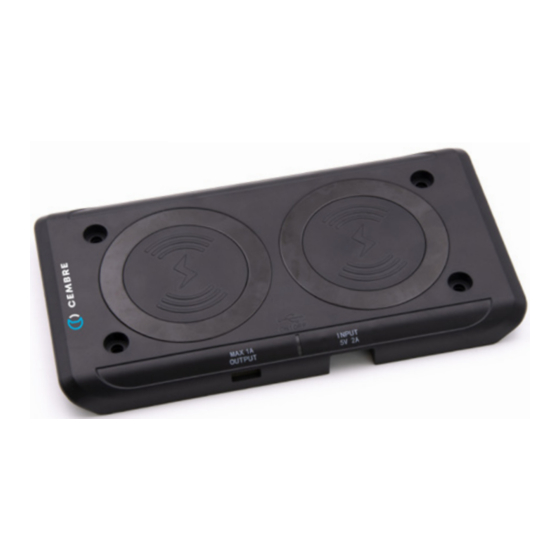

The BCB2-W pad is suitable to wireless charge two lamps at
the same time.
3. Operation
Magnets built within the bottom
to a metal surface and 4 ø 5 mm holes for fixing to the wall,
the height must be less than 2 m.
- Connect the supplied power adapter to the INPUT port
(USB type C).
- Green ON/OFF LED ligths up: charger pad ready.
Wireless mode: place the area of the LED lamp marked by
on the magnetic area
USB mode: connect the device to charge to the USB OUTPUT
socket.
- Red ON/OFF LED ligths up: charging in progress.
- To check the fully charge of the battery refers to the specific
indicator on the lamp.
Charging time depends on the battery capacity.
The pad do not support both wireless and USB output
when charging.
4. Safety Notes
- Before using, make sure the right voltage is available. Use
the supplied power adapter only.
- Prior to each charge, make sure the pad is not damaged in
any way. Do not use the pad or adapter if damaged.
- Do not use the pad in explosive environment in which flam-
mable liquids, gases or dusts are present.
Risk to life!
- Not suitable for children, not a toy! Responsible use pre-
vents problems or accidents.
- Do not disassemble or modify the pad.
- Disconnect the pad from the mains if not used.
5. Maintenance
Do not disassemble or modify the charging pad.
Failure to follow the instructions could result in electric shock
or injury.
Do not use solvents, corrosive cleaners or similar.
Use a dry or slightly moist cloth for cleaning ONLY.
6. Disposal
Dispose of electrical devices in an environmentally respon-
sible manner! Do not dispose of electrical devices with hou-
sehold rubbish, please contact your local authorities for avai-
lable disposal options.
USER INFORMATION in accordance with "Directives 2011/65/
EU and 2012/19/EU.
The 'Not in the bin' symbol above when shown
10 W on equipment or packaging means that the
equipment must, at the end of its life, be dis-
posed of separately from other waste. Unlawful
disposal of such equipment will be subject to ap-
plication of administrative sanctions provided by
the current legislation.
Made in China
Address / Indirizzo: Cembre S.p.A.
via Serenissima, 9 25135 - Brescia (Italy)
imported in UK by CEMBRE Ltd, Curdworth, B76 9EB
www.cembre.com
allow to stick the pad
on the pad.
20M195I/E rev2
