Calibration mode – Load Calibration

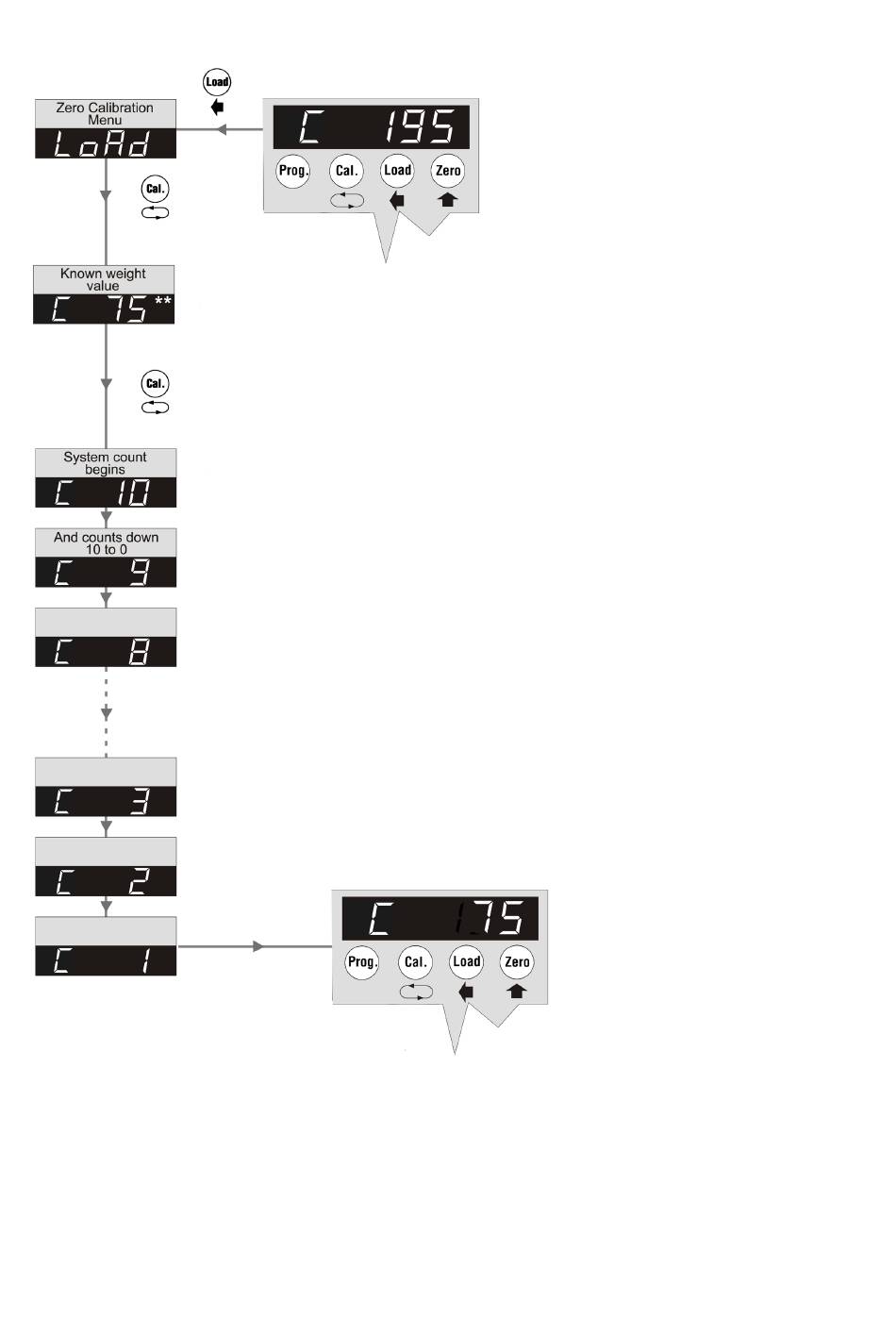

Load Calibration: Activate the Load Calibration menu by pressing the
"Load" button.
Use the "Cal." button to display the stored weight value. Adjust the value
so it matches the required calibration weight using both the "Zero" and
"Load" buttons.
Note: Use the "Zero" button to re-set the stored weight value to zero and
to increase the value of the digit(s). Use the "Load" button to select
additional digits as required.
Press the "Cal." and the display counts down from 10 to 1. This allows
time for the operator to leave the car to ensure that the correct
calibration weight is stored.
On return to display function the calibration weight is automatically
stored.
If no changes are made in Menu mode, the overload sensing system will
automatically return to Weight mode after 10 seconds.
Begin the Load Calibration procedure by
placing a calibration weight with known
weight in the car.
Weight should be between 50 – 120 % of
the lifts/hoists rated load.
To be able to perform Load Calibration –
press buttons "Prog."- and "Zero".
