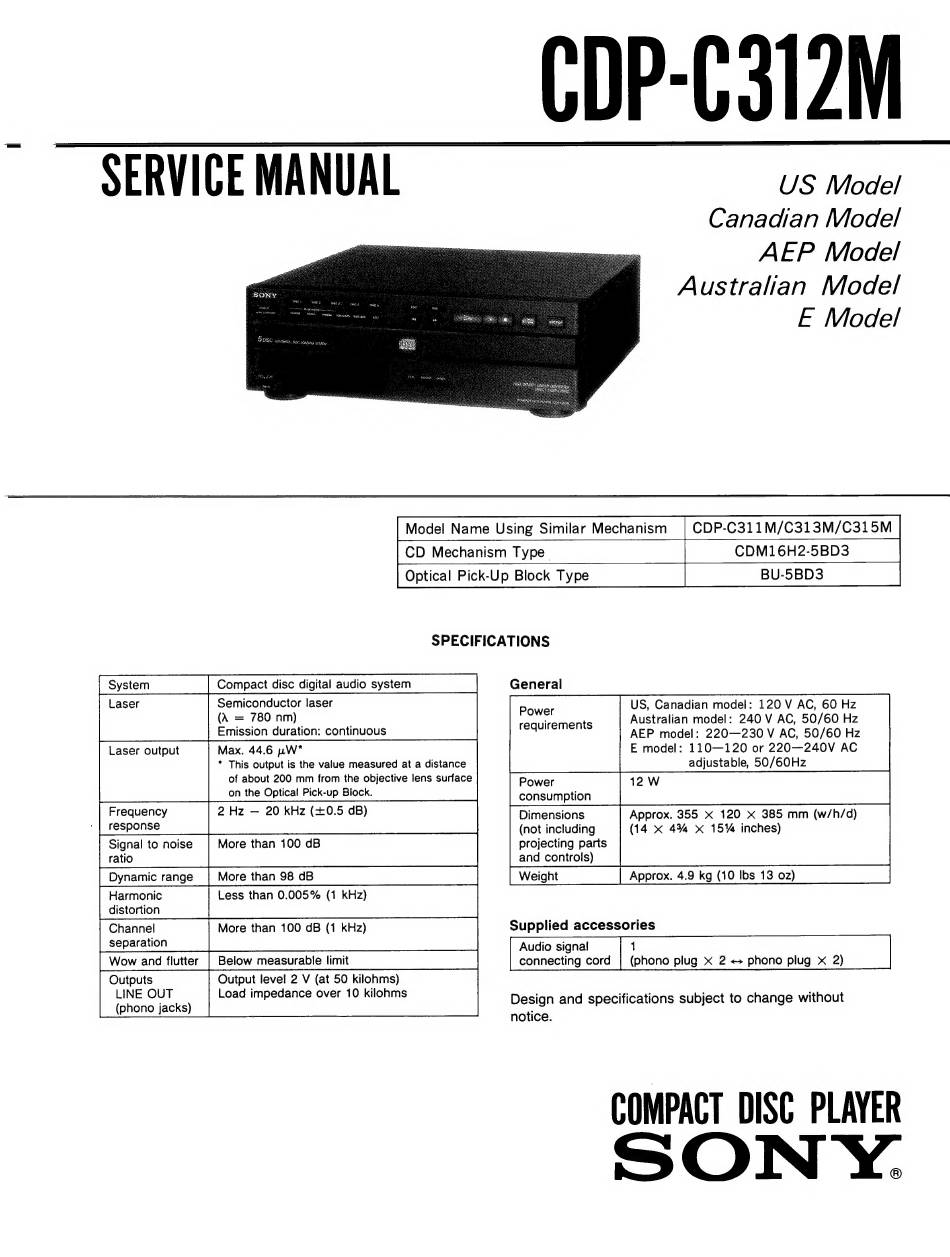

Sony CDP-C312M Service Manual

SERVICE MANUAL US Model
Canadian Model
AEP Model
Australian Model
E Model
I
SVC wroimne:
CDP-C311M/C313M/C315M
CDM16H2-5BD3
BU-5BD3
Model Name Using Similar Mechanism
CD Mechanism Type
Optical Pick-Up Block Type
SPECIFICATIONS
Compact disc digital audio system
Laser Semiconductor laser
(A = 780 nm)
Emission duration: continuous
Laser output Max. 44.6 2» W"*
* This output is the value measured at a distance
of about 200 mm from the objective lens surface
on the Optical Pick-up Block.
Frequency 2 Hz — 20 kHz (+0.5 dB)
- | response
Signal to noise More than 100 dB
ratio
More than 98 a8
Harmonic Less than 0.005% (1 kHz)
distortion
Channel More than 100 dB (1 kHz)
separation
Wow and flutter | Below measurable limit
Outputs Output level 2 V (at 50 kilohms)
LINE OUT Load impedance over 10 kilohms
(phono jacks)
General
US, Canadian model: 120 V AC, 60 Hz
Australian model: 240 V AC, 50/60 Hz
AEP model: 220—230 V AC, 50/60 Hz
E model: 110—120 or 220—240V AC
adjustable, 50/60Hz
Power 12 W
consumption
Dimensions Approx. 355 x 120 x 385 mm (w/h/d)
(not including (14 x 4% x 15% inches)
projecting parts
and controls)
Power
requirements
Approx. 4.9 kg (10 Ibs 13 02)
Supplied accessories
Audio signa! 1
connecting cord | (phono plug x 2 «+ phono plug x 2)
Design and specifications subject to change without
notice.
