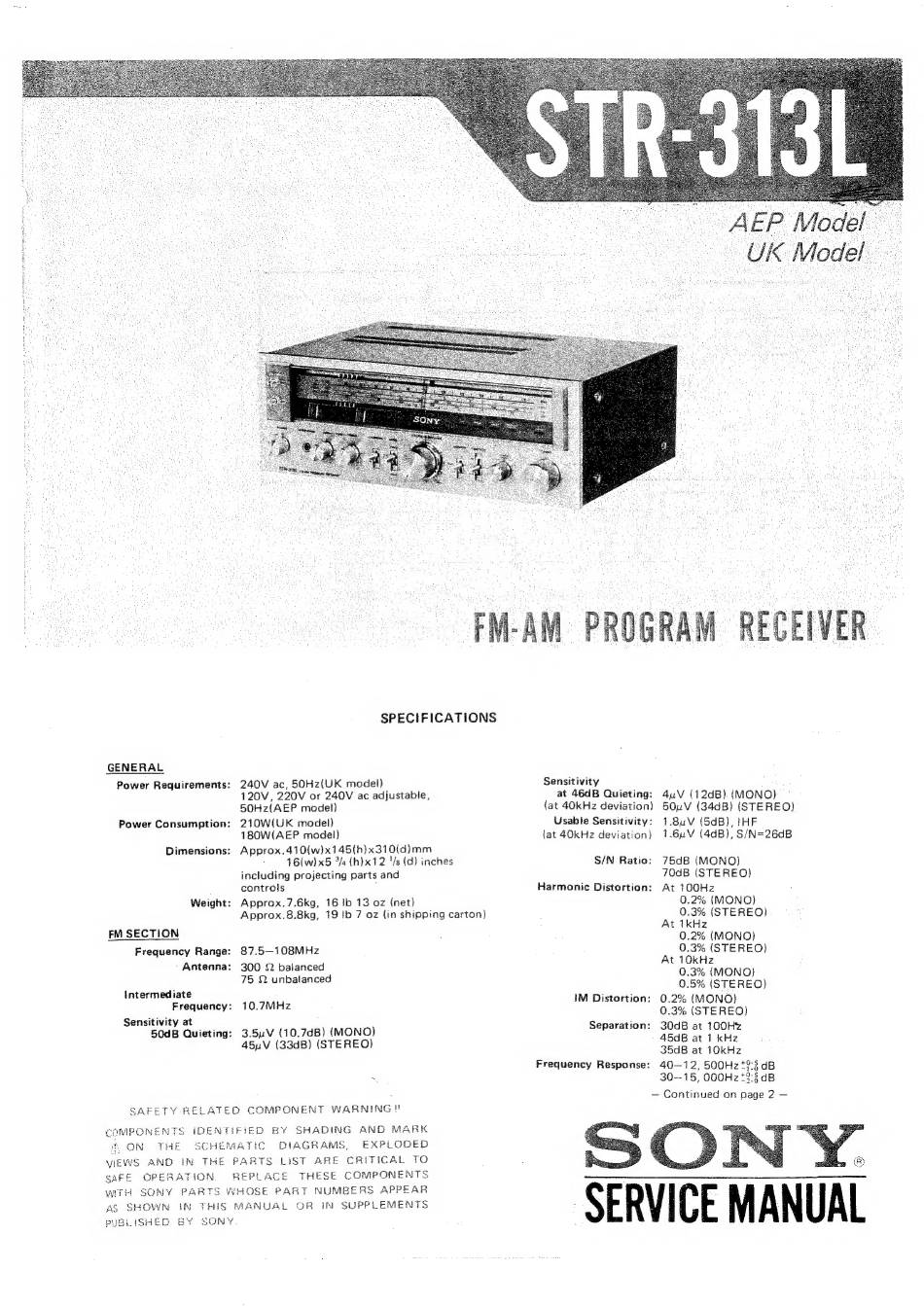

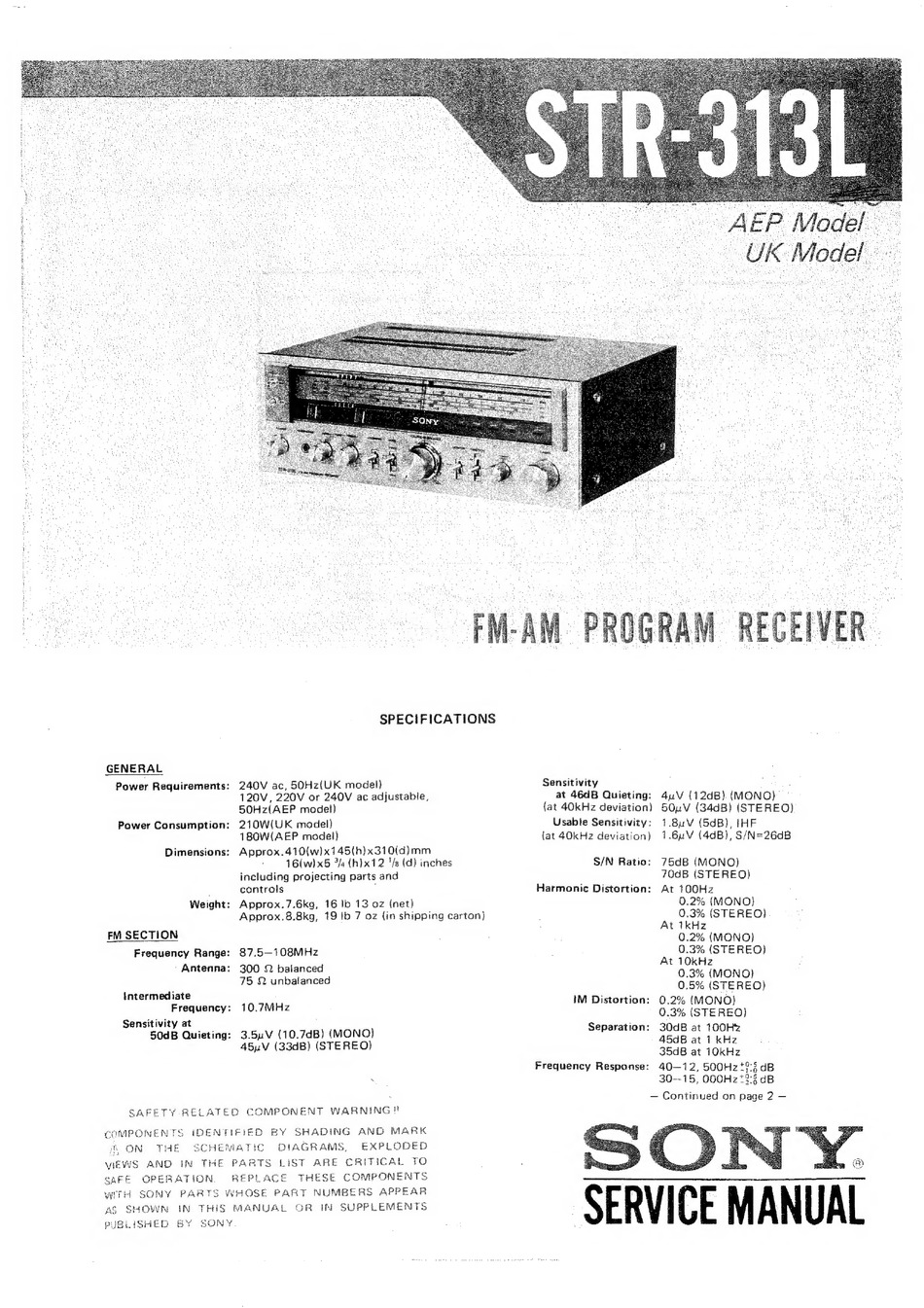

Sony STR-313L Service Manual

GENERAL
Power Requirements:
Power Consumption:
Dimensions:
Weight:
FM SECTION
Frequency Range:
Antenna:
Intermediate
Frequency:
Sensitivity at
50dB Quieting:
SPECIFICATIONS
240V ac, 50H2(UK model)
120V, 220V or 240V ac adjustable,
50Hz(AEP model}
210W(UK model)
180W(AEP model)
Approx.410(w)x145(h)x310{d)mm
: 16(w)x5 3/4 (h)x12 "/s (d) inches
including projecting parts and
controls
Approx.7.6kg, 16 Ib 13 oz (net)
Approx.8.8kg, 19 Ib 7 oz {in shipping carton)
87.5—108MHz
300 © balanced
75 2 unbalanced
10.7MHz
3.5uV (10.7dB) (MONO)
45uV (33dB) (STEREO)
SAFETY RELATED COMPONENT WARNING?
APONENT
ON THE
OPER ATION
IDENTIFIED BY
SCHEMATIC DIAGRAMS,
S AND IN
THE PARTS
LiST ARE
CRITICAL TO
REPLACE THESE COMPONENTS
i SONY PARTS WHOSE PART NUMBERS APPEAR
SHOWN IN
THIS MANUAL
OR IN SUPPLEMENTS
LISHED BY SONY
SHADING ANG MARK
EXPLODED
Sensitivity
at 46dB Quieting:
AEP Model
UK Model
4uV (12dB) (MONO)
{at 40kHz deviation) 50uV (34dB) (STEREO)
Usable Sensitivity:
{at 40kHz deviation)
S/N Ratio:
Harmonic Distortion:
1M Distortion:
Separation:
Frequency Response:
1.8uV (5dB), HF
1.6uV (4dB), S/N=26d0B
75dB (MONO)
70dB (STEREO)
At 100Hz
0.2% (MONO)
0.3% (STEREO)
At 1kHz
0.2% (MONO}
0.3% (STEREO)
At 10kHz
0.3% (MONO)
0.5% (STEREO)
0.2% (MONO)
0.3% (STEREO)
30dB at 100H%Z
45dB at 1 kHz
35dB at 10kHz
40-12, 500Hz*9:5 dB
30-15, OOOHz *3:3 dB
— Continued on page 2 —
SERVICE MANUAL
