YOSensi YO Pure Pro User Manual

Hide thumbs Also See for YO Pure Pro:
Table of Contents

Advertisement

Quick Links

Download this manual

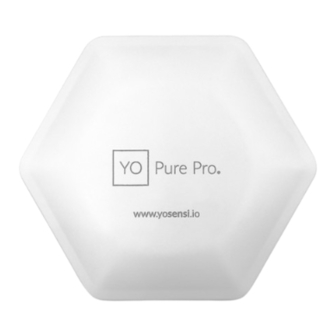

YO Pure Pro
User guide v1.3

Advertisement

Table of Contents
loading

Related Manuals for YOSensi YO Pure Pro

Summary of Contents for YOSensi YO Pure Pro

  • Page 1 YO Pure Pro User guide v1.3...
  • Page 2 figure describing threshold of 31.01.2022 measurements. Added configuration instructions using Yosensi Management Platform for firmware 3.4.0 and newer. Changed chart for CO sensor. Minor layout changes, text errors fixed, changed chart for CO sensor – Figure 6, improved readability, added PMx sensor marking on Figure 1, Measured Values descriptions 26.04.2023...

  • Page 3: Table Of Contents

    Device configuration Configurable parameters Parameter descriptions Outlier detection mechanism Configuration via CLI Configuration node via Yosensi Management platform Configuration node with Yosensi mobile app Connecting node with network Yosensi Management Platform configuration Adding a node manually Adding node via Bluetooth...

  • Page 4: Content

    YO Pure Pro User guide v1.3 page 4/42 www.yosensi.io...

  • Page 5: Product Description

    ), and total volatile organic compounds (TVOC). The included sensors also monitor atmospheric pressure, illumination, temperature, humidity, and noise level. YO Pure Pro may be ordered with the default CO sensor or customised to measure instead 0 , ETOH, H...
  • Page 6 YO Pure Pro User guide v1.3 page 6/42 Figure 2 Device side views. Device sticker placed on the bottom of the device enclosure contains information about model, version, LoRaWAN region and 3 parameters important in case of device identification and configuration:...

  • Page 7: Physical Interfaces

    General: battery charging process in progress. Buttons YO Pure Pro is equipped with one reset button placed next to the RGBW LED diode (see Figure 2). USB-C YO Pure Pro is equipped with a USB-C connector used for powering the device placed next to the battery charging diode (see Figure 2).

  • Page 8: Specifications

    YO Pure Pro User guide v1.3 page 8/42 Specifications Physical Figure 4 Dimensions of the device. PHYSICAL SPECIFICATION Dimensions Height: 45 mm Width: 130 mm Depth: 146 mm Colour White Mounting method Horizontal Vertical (can be screwed to the wall)

  • Page 9: Operating Conditions

    YO Pure Pro User guide v1.3 page 9/42 Operating conditions OPERATING CONDITIONS Temperature 0° to 70°C Humidity 0 to 90% Placement Indoor use Power supply USB-C 5 V DC 6 to 30 V DC 5 to 21 V AC 2x backup battery Li-Ion 18650 (2x 3,6 V DC)

  • Page 10: Measured Values

    YO Pure Pro User guide v1.3 page 10/42 Measured values MEASUREMENT RANGES Accuracy Parameter Measurement range 0 to 1000 μg/m Recommended working PM2.5 pre-calibrated ±10 μg/m at 25°C conditions: 10° to 40°C (all PMx measurements) 0 to 1000 μg/m ±25 μg/m at 25°C...

  • Page 11: Pm2.5, Pm4 And Pm10

    YO Pure Pro User guide v1.3 page 11/42 PM2.5, PM4 and PM10 The particulate matter (PM) sensor informs users about the quantity of particles in diameters equal to or less than 2.5 μm, 4 μm, and 10 μm, respectively. Additional information about surrounding air pollution may be obtained by analyzing these measurements.

  • Page 12: Co2 Sensor

    YO Pure Pro User guide v1.3 page 12/42 sensor Monitoring the CO level is an important indoor environment parameter that affects human health. High levels within a short duration can cause, for example, poor concentration, loss of attention, and an increased heart rate.

  • Page 13: Atmospheric Pressure

    YO Pure Pro User guide v1.3 page 13/42 Atmospheric Pressure By tracking changes in atmospheric pressure it's possible to predict how the value/difference might affect human mood. Figure 9 Example of atmospheric pressure monitoring chart. Illuminance Illuminance sensor measures the value of light intensity. It can tell if there's a proper amount of light in the room.

  • Page 14: Temperature And Relative Humidity

    YO Pure Pro User guide v1.3 page 14/42 Temperature and relative humidity Temperature and relative humidity are measured by sensors placed inside the device enclosure. These measurements can be used to monitor ambient conditions (see recommended conditions). Figure 11 Example of temperature monitoring chart.

  • Page 15: Sound Pressure Level

    YO Pure Pro User guide v1.3 page 15/42 Sound Pressure Level Sensor for measuring sound pressure level in the room. It can be used for monitoring the noise in the building. Figure 13 Example of sound pressure level monitoring chart.

  • Page 16: Installation

    YO Pure Pro User guide v1.3 page 16/42 Installation Package contents Device (without batteries). Warranty card. Mounting bracket. Battery lock. External power supply connector. Safety precautions SAFETY PRECAUTIONS SYMBOL DESCRIPTION Device is marked with a symbol saying that electrical and electronic products may not be mixed with unsorted household waste.

  • Page 17: Installation Guide

    YO Pure Pro User guide v1.3 page 17/42 Device is intended for indoor use. Installation guide The device can be powered via a USB-C connector, an external power supply, or Li-Ion 18650 batteries. USB-C connector 5 V DC. Plug the USB-C cable into the socket on the enclosure. If the LED indicating the status of the device flashes blue, then the device is successfully...
  • Page 18 YO Pure Pro User guide v1.3 page 18/42 Figure 15 Connecting the power supply to the device. Backup batteries Li-Ion 18650. Remove the three screws located on the bottom of the device’s enclosure (3 out of 6 places marked with +) to remove the top of the enclosure.
  • Page 19 YO Pure Pro User guide v1.3 page 19/42 1. Place on a desk. Install the rubber feet (installed by default) and connect the power supply. Figure 17 Installation of the rubber feet for a desk placement. 1. Mount on a wall.
  • Page 20 YO Pure Pro User guide v1.3 page 20/42 C. When using a 6-30 V DC or 5-21 V AC power supply, the centre plastic circle labelled PUSH must be snapped out of the mounting bracket before installation. Next, route the cable through the centre hole of the bracket.
  • Page 21 YO Pure Pro User guide v1.3 page 21/42 Figure 21 The final position of the device after properly mounting on a wall. 1. Mount on a ceiling. Installation of the device on a ceiling is similar to a wall mount described in section II.2. For a ceiling mount, the PMx sensor must be turned upside down to function correctly.
  • Page 22 YO Pure Pro User guide v1.3 page 22/42 Figure 22 Rotating the PM sensor to prepare for a ceiling mount installation. www.yosensi.io...

  • Page 23: Operation

    3. Server – in most cases, a cloud-based service where data is processed, stored, analysed, and presented in user-friendly ways (via a user interface); Yosensi default and recommended tools are Yosensi Management Platform (for IoT structure management) and Grafana (for data presentation).

  • Page 24: Device Configuration

    CO sensor, extgassens (dynamic): configuration of additional custom sensor that can be plugged directly to the device I2C bus using a 5 pin socket on the PCB (disabled by default); for more information contact us on support@yosensi.io. www.yosensi.io...
  • Page 25 YO Pure Pro User guide v1.3 page 25/42 Sample configuration file for the YO Pure Pro device. "info": { "devmodel": "LNPP", "fwver": "3.5.0", "loraradio": "SX1261", "lorawanver": "1.0.2", "loraregion": "EU868", "blemacaddr": "0123456789ab" "lorawan": { "subband": 1, "nwktype": "public", "acttype": "otaa", "otaa": { "deveui": "0123456789abcdef",...
  • Page 26 YO Pure Pro User guide v1.3 page 26/42 GENERICS PARAMETERS SECTION NAME DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE devmodel Device name LNPP fwver Firmware version 3.5.0 loraradio Radio chipset model SX1261 info lorawanver LoRaWAN stack version 1.0.2 loraregion LoRaWAN region...
  • Page 27 YO Pure Pro User guide v1.3 page 27/42 DEVICE PARAMETERS NAME DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE measinterval Measuring and sending interval LoRa [s] 1 - 999999 tempdiffpct Measuring temperature threshold in % 0 - 9999 humdiffpct Measuring humidity threshold in %...

  • Page 28: Parameter Descriptions

    YO Pure Pro User guide v1.3 page 28/42 Parameter descriptions tempdiffpct, … , pm10diffpct: the sensor measurement minimum percentage difference based on the previous two consecutive data points. tempoffset: the offset value subtracted from the temperature measurement. enable: an activation/deactivation indicator for a specific sensor i.e. PMx sensor, additional internal sensor.
  • Page 29 YO Pure Pro User guide v1.2 page 29/42 Figure 25 The outlier detection mechanism using a configurable threshold value. REV 1.2.0 www.yosensi.io...
  • Page 30 YO Pure Pro User guide v1.2 page 30/42 UPLINK SUBBAND REGION DESCRIPTION POSSIBLE DEFAULT READ/ VALUES VALUE WRITE EU868 Sub-band 1; 867.1 - 868.5 MHz; channels 0-7 Sub-band 1; 902.3 - 903.7 MHz; channels 0-7 Sub-band 2; 903.9 - 905.3 MHz; channels 8-15 Sub-band 3;...

  • Page 31: Configuration Via Cli

    2. Make sure you have your Bluetooth LE adapter turned on and working properly. 3. Download and run the CLI tool in the terminal/console application. 4. Make sure you have placed batteries in the YO Pure Pro device. 5. Run yosensi-cli-tool_vX.X.X_WIN.exe list to scan for Bluetooth devices. You can see all commands by typing yosensi-cli-tool_vX.X.X_WIN.exe --help or add -h to your...

  • Page 32: Configuration Node Via Yosensi Management Platform

    YO Pure Pro User guide v1.2 page 32/42 Configuration node via Yosensi Management platform Connect to the device as follows: 1. Log in at app.yosensi.io. 2. You’ll see the dashboard organization view. Go to the Application section in the sidebar.

  • Page 33: Configuration Node With Yosensi Mobile App

    Configuration node with Yosensi mobile app Connect to the device using Yosensi app as follows: 1. Login to Yosensi App using your credentials. 2. Go to the Devices section and choose the device you want to configure. If you can not see the device ensure that you are in the correct organization.

  • Page 34: Connecting Node With Network

    IoT systems management (like the root directory in operating systems). It can be created only by Yosensi staff, and all clients using Yosensi Management Platform have one created for them by default. In case of any questions, you can find us at support@yosensi.io.
  • Page 35 Select a model that is compatible with your device — this choice affects the number of charts and data source (YO Pure Pro). You can also set the node’s ‘Location’ , if locations have been pre-defined. If you haven’t defined a suitable location, leave this field set at <None>.
  • Page 36 5. New nodes must be added in OTAA mode. Nodes can be switched to ABP mode after activation in the Yosensi Management Platform by changing the Node configuration. Click on the link in the ‘Node Name’ column. Go to the ‘KEYS’ tab and switch ‘LoRa Type’ from OTAA to ABP and fill in the blank spaces, then press update.

  • Page 37: Adding Node Via Bluetooth

    ‘DETAILS’ tab (‘Node Name’ column link) and clicking ‘CHARTS’ . Adding node via Bluetooth 1. Log in at app.yosensi.io. 2. You’ll see the default organization view. To switch to another organization, click on the user avatar in the right top corner and select ‘Switch Organization’ .

  • Page 38: Payload Description

    Payload description. An exemplary payload produced by YO Pure Pro is presented below with division into each measurement marked together with decoded values whose interpretation is described in the Payload description document. Example of YO Pure Pro payload with description:...
  • Page 39 YO Pure Pro User guide v1.2 page 39/42 Fifth measurement (TVOC concentration) 0x22 0x00 0x03 0x00 0x00 0x00 0x02 type = 8 addr_len = 0 val = 2 md [s] = 0 prec = 2 meas_len = 4 (0,02 [μg/m...
  • Page 40 YO Pure Pro User guide v1.2 page 40/42 Second measurement (dust concentration [PM 10) 0x25 0x00 0x11 0x04 0x00 0x1C type = 9 addr_len = 1 val =28 md [s] = 0 address=4 prec = 0 meas_len = 2 (2,8 [μg/m REV 1.2.0...

  • Page 41: Compliance Statements

    YO Pure Pro User guide v1.2 page 41/42 Compliance statements REV 1.2.0 www.yosensi.io...
  • Page 42 YO Pure Pro User guide v1.2 page 42/42 REV 1.2.0 www.yosensi.io...
