Harman AMX Metreau MET-7 Quick Start Manual

Overview

The MET-7 Metreau 7-Button Keypad (FG5794-03) offers 7 double-width buttons that
can be used as in individual keypad or in conjunction with the MET-6N and MET-13
Metreau keypads (FIG. 1).
7 pre-printed pushbuttons
(with blue LED indicators)
2-position button

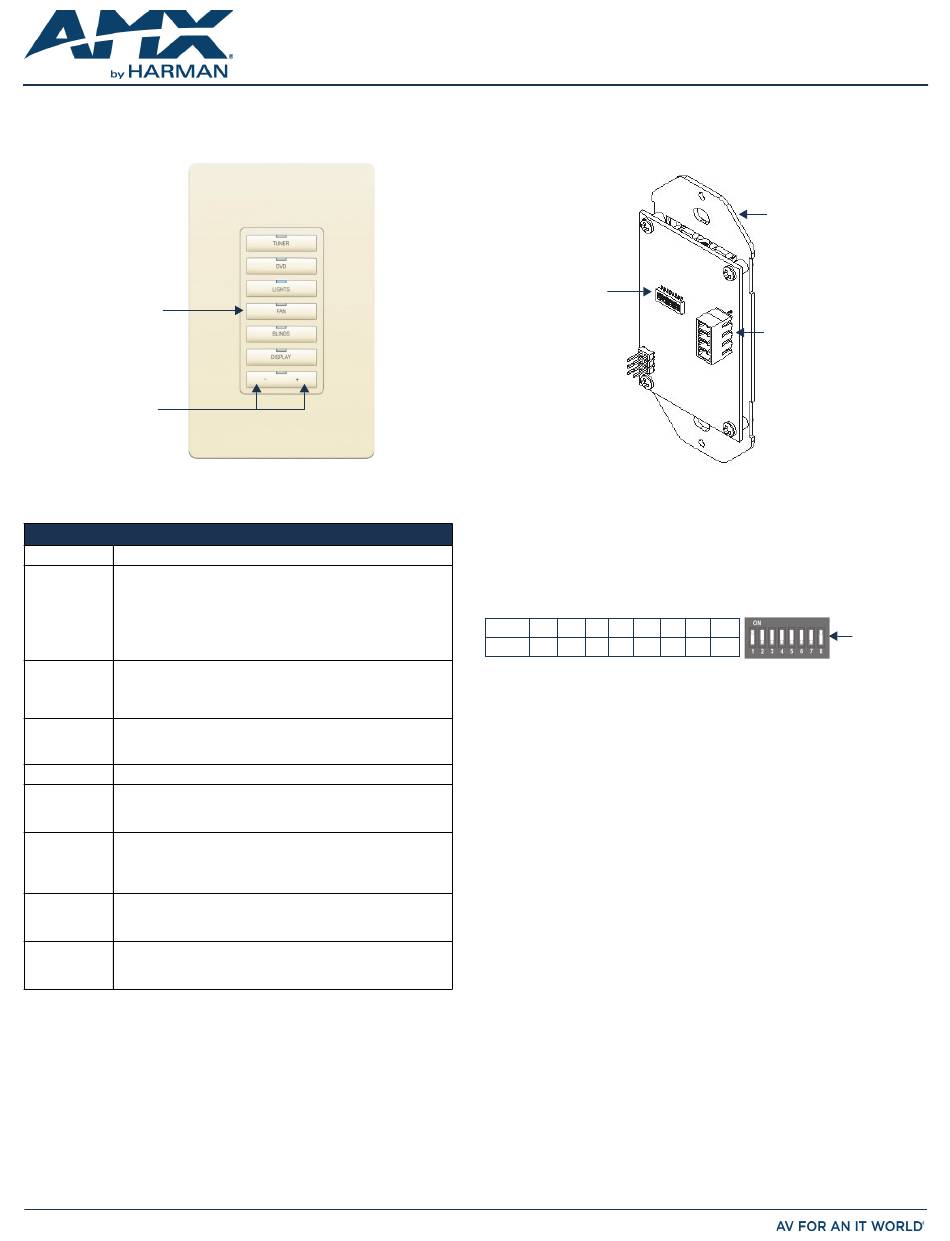

FIG. 1 MET-7 METREAU 7-BUTTON KEYPAD
The MET-7 is an AxLink keypad, suitable for use in NetLinx Control Systems.

Specifications

MET-7 SPECIFICATIONS
Power: 12 VDC, 30 mA
Front Panel Pushbuttons - 7 tactile pushbuttons with blue LED indicators that
Components: illuminate when pressed to confirm the source/function was selected
and that it is currently being used. These pre-printed buttons are
field-replaceable.
The bottom button functions as 2 buttons - there are 2 positions (left
and right) that allow the user to control channel/levels
(up/down).
Rear Panel • DIP switch - 8-position mini DIP switch used to set the device
Components: address for the keypad on the AxLink Bus (1-255).
• AxLink connector - 4-pin 3.5mm Phoenix connector for AxLink
connection to the NetLinx Master.
Dimensions • Keypad and Mounting Plate: 4.055" x 1.772" x 0.818"
(HWD): (103mm x 45mm x 207mm)
• Mounts into standard decora-style wall plates.
Weight: 2.4 oz. (68.04 g)
Operating • Operating Temperature: 32° - 104° F (0°- 40° C).
Environment:
• Relative Humidity: 5% - 85%, non-condensing.
• Intended for indoor use only.
Certifications: • FCC Class B
• CE
• IEC60950
• RoHS
Colors: • White (FG5794-03-WH)
• Black (FG5794-03-BL)
• Light Almond (FG5794-03-LA)
Optional • Single Button Kit (FG5794-10)
Accessories:
• Double Button Kit (FG5794-11)
• Lutron Cairo Wallplates (available in a variety of sizes and colors)
MET-7

Installation

to uching argid aem l b j .i d l giNgOb m gTi N b Em l : r. gid l giEd : d b mi g B gm d rb m b d fi ravi f aeri, aNfi , fi
touching a grounded metal object.
FIG. 2 shows the basic rear components of the MET-7 keypads:
Device Address
DIP Switch
FIG. 2 MET-7 - REAR COMPONENTS
AxLink Device Addressing
AxLink-enabled Metreau keypads use an 8-position mini-DIP switch to specify a unique
device address for each keypad in a NetLinx Control System.
NOTE: Before touching the device, discharge the static electricity from your body by
touching a grounded metal object.
1. If connected, disconnect the power supply.
2. Locate the 8-position mini-DIP switch on the rear panel.
3. Set the DIP switch according to the values shown in FIG. 3.
Switch 1 2 3 4 5
Value 1 2 4 8 16
FIG. 3 8-POSITION MINI-DIP SWITCH
The device number is set by the total value of DIP switch positions that are in the ON
position. Note that the ON position is indicated on the DIP Switch.
As an example, the DIP switch in FIG. 3 defines AxLink device number 129
(1+128=129).
If you later change the device number, remove and reconnect the power connector to
enter the new device number into memory.

Wiring

Preparing captive wires
sy wuMothikaij adi m aj j gm di p aDgrid aid l gi- gd rg: eiqgf p: Niej d b Bi d l giDb rb j .i b Eim av pB gd g;
sy wuMothiM ieEb j .i paDgri ravi y K/b j qTi N b Em aj j gm di d l giDb rb j .i ravi d l gim aj d raBi E f Ed gvi
before wiring the Metreau keypads.
You will need a wire stripper, and flat-blade screwdriver to prepare and connect the
captive wires.
1. Strip 0.25 inch (6.35 mm) of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to the
wiring diagrams and connector types described in this section.
3. Turn the flat-head screws clockwise to secure the wires in the connector.
NOTE: Do not over-torque the screws; doing so can bend the seating pins and damage
the connector.
QUICK START GUIDE
®
Metreau 7-Button Keypad
Mounting Plate
AxLink connector
(from NetLinx Controller)
6 7 8
32 64 128
Example
(129)
