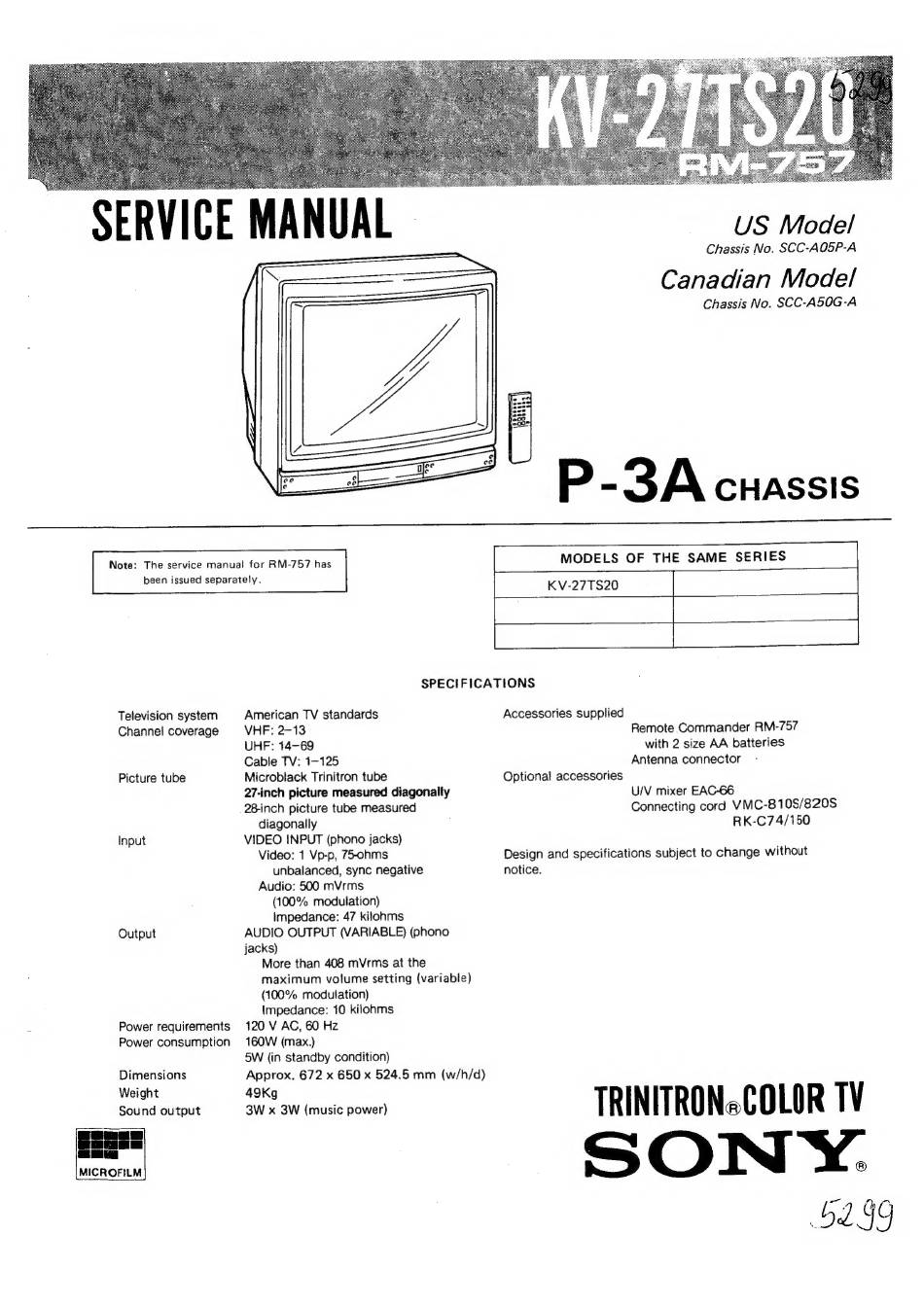

Sony TRINITRON KV-27TS20 Service Manual

Note: The service manual for RM-757 has
been issued separately.
Television system
Channel coverage
Picture tube
Input
Output
Power requirements
Power consumption
Dimensions
Weight
Sound output
MICROFILM
US Model
Chassis No. SCC-AO5P-A
Canadian Model
Chassis No. SCC-A50G-A
MODELS OF THE SAME SERIES
SPECIFICATIONS
American TV standards
VHF: 2-13
UHF: 14-69
Cable TV: 1-125
Microblack Trinitron tube
27-inch picture measured diagonally
28-inch picture tube measured
diagonally
VIDEO INPUT (phono jacks)
Video: 1 Vp-p, 75-ohms
unbalanced, sync negative
Audio: 500 mVrms
(100% modulation)
Impedance: 47 kilohms
AUDIO OUTPUT (VARIABLE) (phono
jacks)
More than 408 mVrms at the
maximum volume setting (variable)
(100% modulation)
Impedance: 10 kilohms
120 V AC, 60 Hz
160W (max.)
5W (in standby condition)
Approx. 672 x 650 x 524.5 mm (w/h/d)
49Kg
3W x 3W (music power)
KV-27TS20
Accessories supplied
Remote Commander RM-757
with 2 size AA batteries
Antenna connector
Optional accessories
U/V mixer EAC-66
Connecting cord VMC-810S/820S
RK-C74/150
notice.
